packing weight: 1600kg
packing volume: 12cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 6.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigotcube 289x289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .60 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 3.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 3.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 4pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 81.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 600kg
packing volume: 4cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 8 pcs |
| 1.22m stage brace | 12 pcs |
| 2.44m stage brace | 10 pcs |
| stand with extendable tube | 15 pcs |
| Stage adjustable base | 15 pcs |
| Stage Stair | wooden topping | total | 5 | steps | adjustable to the stage height | 2 pcs |

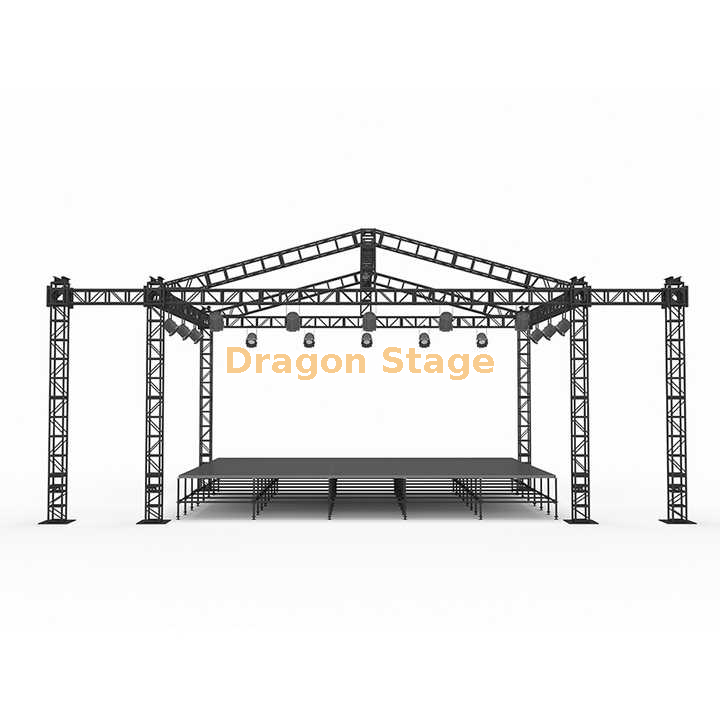

Concert Speaker Roof Stage Truss: A Comprehensive Guide to Your Ultimate Event Setup
Are you planning a concert or a large-scale event and looking for the perfect stage setup to elevate the experience for your audience? Look no further! Today, we're diving into the details of the Concert Speaker Roof Stage Truss, a versatile and robust solution that can transform any venue into an unforgettable event space.
Introduction to the Concert Speaker Roof Stage Truss
The Concert Speaker Roof Stage Truss is designed to meet the demands of modern event production. It combines functionality, aesthetics, and durability to create a seamless and impactful event setup. Whether you're hosting a music concert, a corporate event, or a festival, this stage truss system is your go-to choice.
Dimensions and Layout
The total dimensions of the Concert Speaker Roof Stage Truss are impressive: 6 meters wide, 6 meters long, and 6 meters high. This spacious setup provides ample room for performers, equipment, and crew, ensuring a smooth and efficient event operation.
Speaker Truss Tower
One of the standout features of this stage truss is the dedicated speaker truss tower, which measures 2 meters wide. This tower is specifically designed to support powerful sound systems, ensuring that every corner of the venue is filled with crystal-clear audio. The sturdy construction of the tower guarantees stability and reliability, even during the most energetic performances.
Stage Platform
The stage platform itself is a marvel of engineering. Measuring 4.88 meters by 4.88 meters, it provides a generous performance area. The platform is equipped with two staircases, each with a height range of 0.8 to 1.2 meters, allowing performers to make a grand entrance and exit with ease. The dimensions and design of the platform ensure that it can accommodate a variety of acts, from solo performers to full bands.
Benefits of the Concert Speaker Roof Stage Truss
Versatility: This stage truss system is highly adaptable. It can be configured to suit a wide range of event types and venue sizes. Whether you're setting up in an indoor arena or an outdoor field, the Concert Speaker Roof Stage Truss can be customized to fit your specific needs.
Durability: Built with high-quality materials, this stage truss is designed to withstand the rigors of frequent use and transportation. Its robust construction ensures that it will remain in excellent condition for years to come, providing a reliable platform for countless events.
Aesthetic Appeal: The sleek design of the Concert Speaker Roof Stage Truss adds a touch of professionalism and sophistication to any event. Its modern look complements a variety of themes and styles, making it a versatile choice for event planners and organizers.
Safety: Safety is a top priority with this stage truss system. The sturdy construction, secure staircases, and reliable speaker tower all contribute to a safe and secure environment for performers and crew members.
Applications
The Concert Speaker Roof Stage Truss is suitable for a wide range of applications. Here are just a few examples:
Music Concerts: Whether you're hosting a rock concert, a classical music performance, or a pop show, this stage truss provides the perfect platform for musicians to showcase their talents.
Corporate Events: For corporate functions such as product launches, award ceremonies, and conferences, the Concert Speaker Roof Stage Truss offers a professional and visually appealing setup.
Festivals and Fairs: The versatility of this stage truss makes it ideal for outdoor festivals and fairs. It can be easily assembled and disassembled, allowing for quick setup and teardown.
Theatrical Productions: The stage platform and speaker truss tower provide an excellent foundation for theatrical performances, ensuring that the audience can hear and see every detail of the production.
Conclusion
The Concert Speaker Roof Stage Truss is a must-have for any event planner or organizer looking to create a memorable and impactful event experience. With its impressive dimensions, versatile design, and durable construction, this stage truss system is sure to exceed your expectations. Whether you're hosting a small gathering or a large-scale event, the Concert Speaker Roof Stage Truss is your key to success.
Are you ready to elevate your next event? Invest in the Concert Speaker Roof Stage Truss today and transform your venue into a world-class event space!
