packing weight: 1900kg
packing volume: 14cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 5.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 177.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

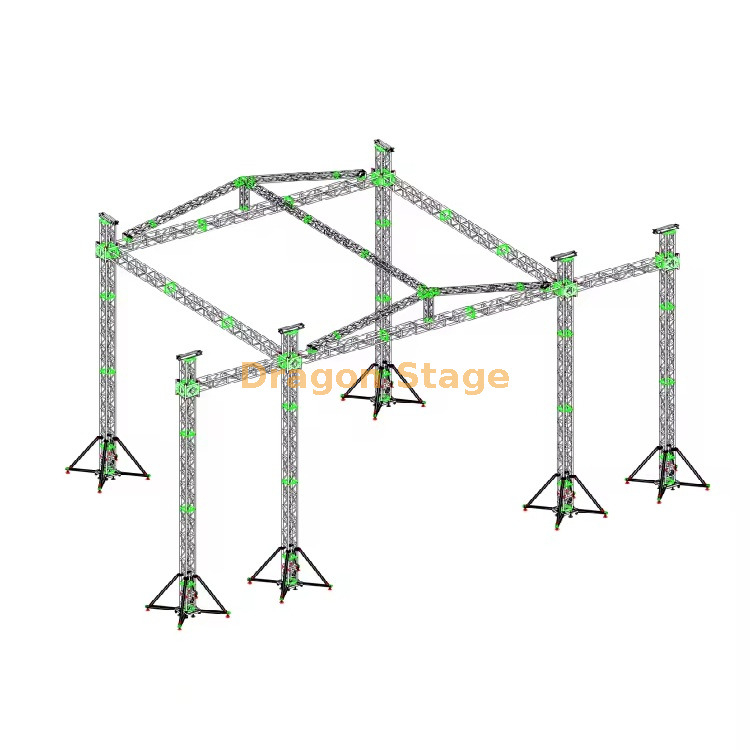

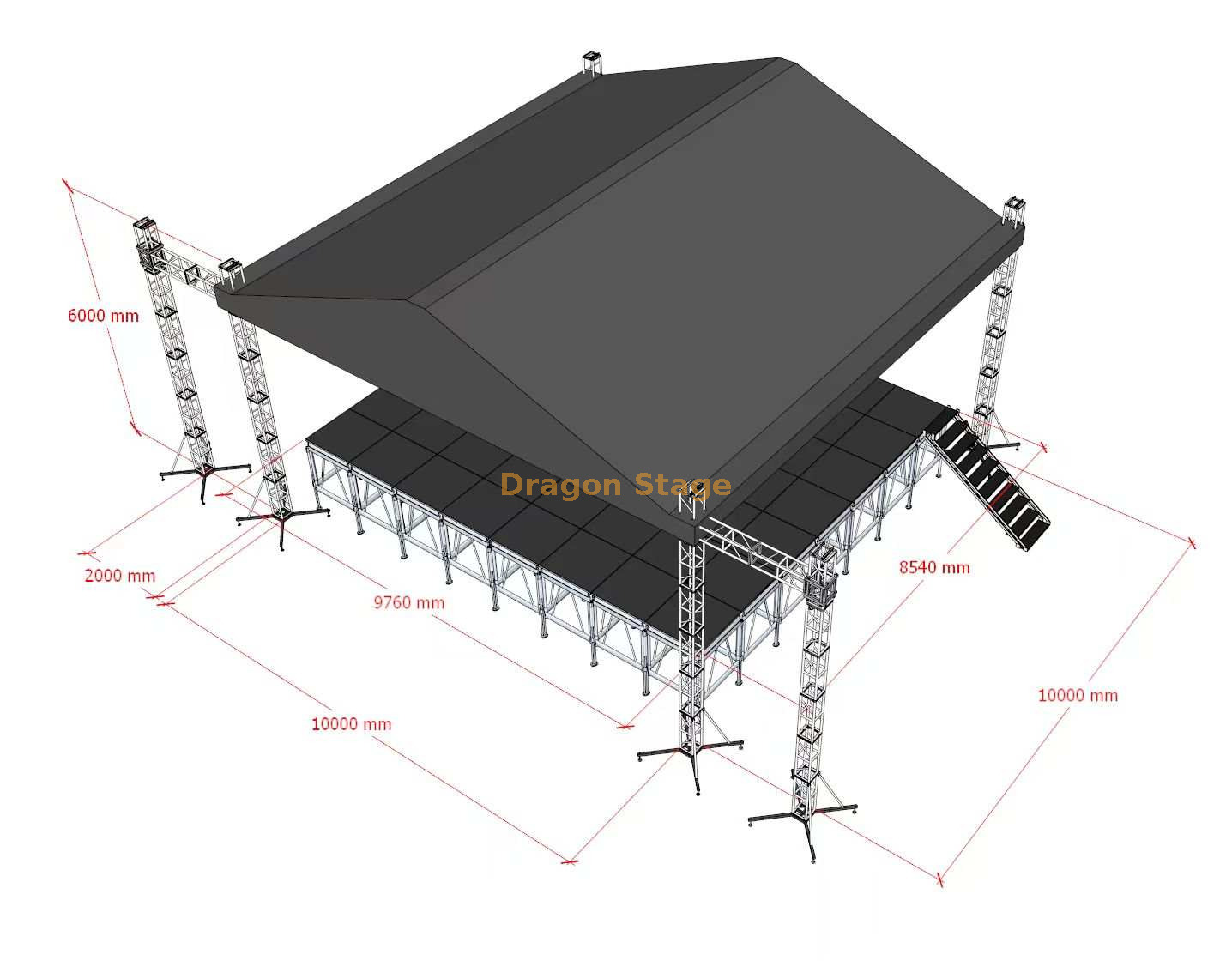

Outdoor Concert Stage Roof Truss System: 10m x 10m x 6m Performance Structure
Introduction: Robust, Mid-Sized Stage for Major Events
The Dragon Stage Outdoor Concert Stage Roof Truss provides a professional and dependable aluminum structure for medium-to-large events. With substantial dimensions of 10m long x 10m wide and a clear working height of 6m, this system is perfectly suited for concerts, festivals, corporate gatherings, and public events requiring a powerful presence and significant rigging capacity.
Engineered for Performance and Safety
Standard Truss and High Stability
The entire structure is built using the versatile CS289x289 square truss with robust 50mm x 3.0mm main tubes. This size truss provides an excellent balance of load-bearing performance and logistical weight for a 10-meter span. The structure is anchored by a complete six tower ground support system, ensuring superior load distribution and stability against lateral forces like wind and dynamic loads from lighting fixtures.
Integrated Speaker Wings
A critical feature for professional audio production, this system includes two dedicated side towers and 2.00m Wings Beams. These extensions allow you to fly line array speakers or LED screens wider than the main stage area, improving sound coverage and sightlines for a large audience. Each main tower and wing tower includes dedicated foundation components (Steel Bases) and Manual Hoists (BA05, 2 Ton), guaranteeing secure and controlled roof erection.
Enhanced Safety and Rigging
Lifting: The inclusion of six total 2 Ton Manual Hoists facilitates safe and gradual lifting of the fully-rigged roof grid.
Anchorage: 24 Long Outriggers (16 main + 8 wing) provide a wide footprint, increasing the structural resistance to overturning moments, especially important for a 6m height outdoor event stage truss.
Weather Protection: The system is completed with a 177.36 sq m PVC roof canopy, offering extensive protection for equipment and performers from rain and direct sun.
Key Structural Components
| Component | Specification | Quantity (Total) | Function |
| Main Truss Beam | CS289x289 (50x3.0mm tube) | 16 pcs (10m span) | Roof Grid Structure |
| Support Pillar Truss | CS289x289 (50x3.0mm tube) | 10 pcs (6m high) | Vertical Load Bearing |
| Lifting System | Manual Hoist (BA05, 2 Tons) | 6 sets | Roof Lifting & Tensioning |
| Stability Base | Steel Base S + Long Outriggers | 6 sets (24 outriggers) | Anchorage & Stabilization |
| Canopy | PVC Material | 177.36 sq m | Rain & Sun Protection |
Practical FAQ for Stage Professionals
Q: What is the primary connection mechanism for the truss sections?
A: This system uses Conical Couplers, Safety Clips, and Pins (Spigot connection). This is a well-known, high-speed, and reliable method for assembly and disassembly, making it an excellent choice for a modular aluminum roof truss system for festivals.
Q: Can I hang LED video screens from this truss?
A: Yes, the CS289x289 truss is a general-purpose square truss suitable for lighting and medium-weight loads. However, for specific LED screen dimensions and weights, you must consult the official truss load table to ensure the 10m span capacity is not exceeded.
Q: Is the ground support system included with the truss?
A: Yes. The kit includes all necessary tower components: Sleeve Blocks, Steel Bases, Top Sections, Hinge Sections, and Manual Hoists for the four main towers and two wing towers.
Q: How is the stability against wind ensured?
A: Stability is provided by the wide footprint of the 24 Long Outriggers and the structural integrity of the truss. Crucially, the system must be correctly secured to the ground using anchoring techniques (ballast or ground stakes) based on the specific wind load calculations for the event location.
