Outdoor Concert Stage Aluminum Box Truss System 20x16x6.5m

5 0 Reviews

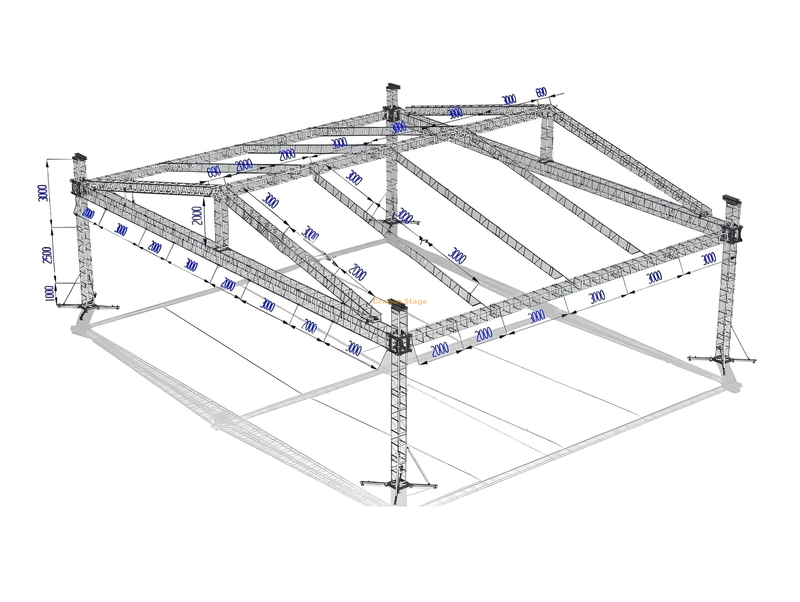

this is a custom Outdoor Concert Stage Aluminum Box Truss System, total sizes are 20x16x7m

namely 20m wide, 16m deep and 7m high.

Price: ￥ 135483

packing weight: 3000KG

packing volume: 40CBM

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS500×600	8pcs
		2.00 m	50×3.0	CS500×600	8pcs
		1.00 m	50×3.0	CS500×600	0pcs
16.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	8pcs
		2.00 m	50×3.0	CS500×600	4pcs
		1.00 m	50×3.0	CS500×600	0pcs
5.50 m Pillar	4 sets	3.00 m	50x3.0	CS350×350	4pcs
		2.00 m	50x3.0	CS350×350	4pcs
		1.00 m	50x3.0	CS350×350	4pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	2.00 m	50×3.0	CS389×389	2pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	4pcs
		2.20 m	50×3.0	CS389×389	4pcs
10.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL40,389*50	28pcs
		2.00 m	50×3.0	CL40,389*50	14pcs
		2.20 m	50×3.0	CL40,389*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	0pcs
	1	Connect plate with clamp		CS389×389	2pcs
		Single clamp			28pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		480.16	1pcs
