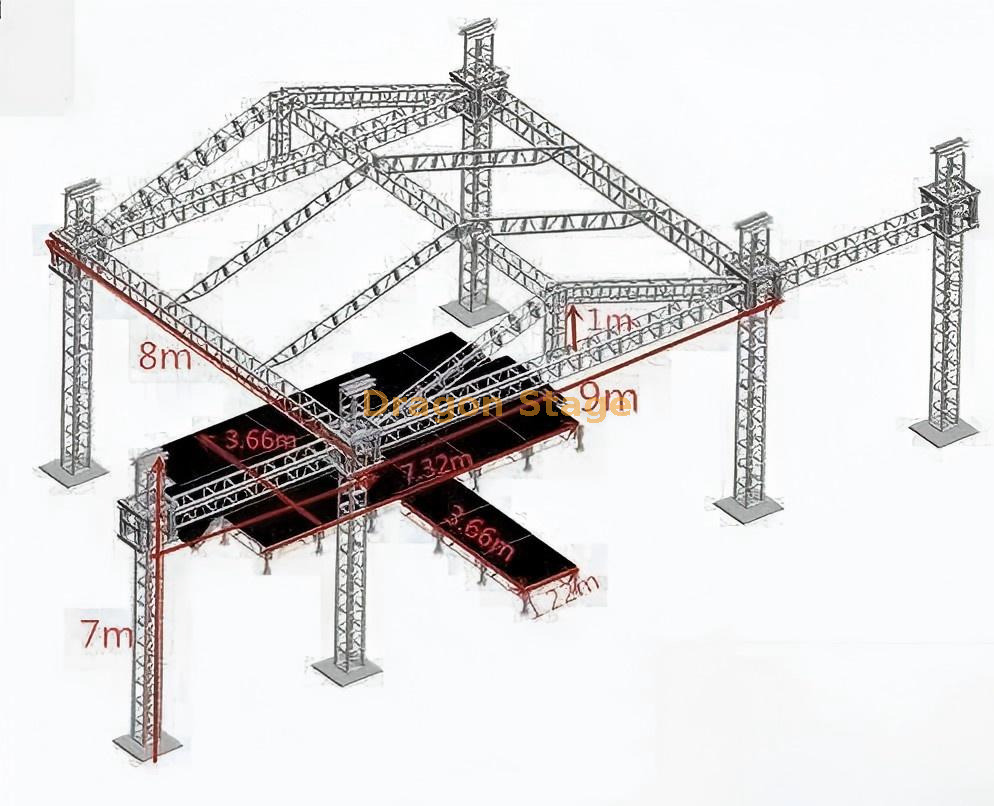

9x8x7m Portable Stage Truss System with Black Canopy Roof

5 0 Reviews

For event production companies and touring bands, a stage needs to be both visually striking and structurally uncompromising. The 9x8x7m Portable Stage Truss System by DragonStage is a high-performance venue solution providing 72 square meters of professional covered area. Standing at a commanding 7-meter height, this system is optimized for high-impact lighting plots and professional sightlines. Utilizing high-strength aluminum and a precision-engineered ground support system, this stage roof offers a sleek, modern aesthetic with the industrial-grade stability required for heavy production hardware.

Price: ￥ 61800


Availability:



Inquire

Brand:
Dragonstage

Product Description

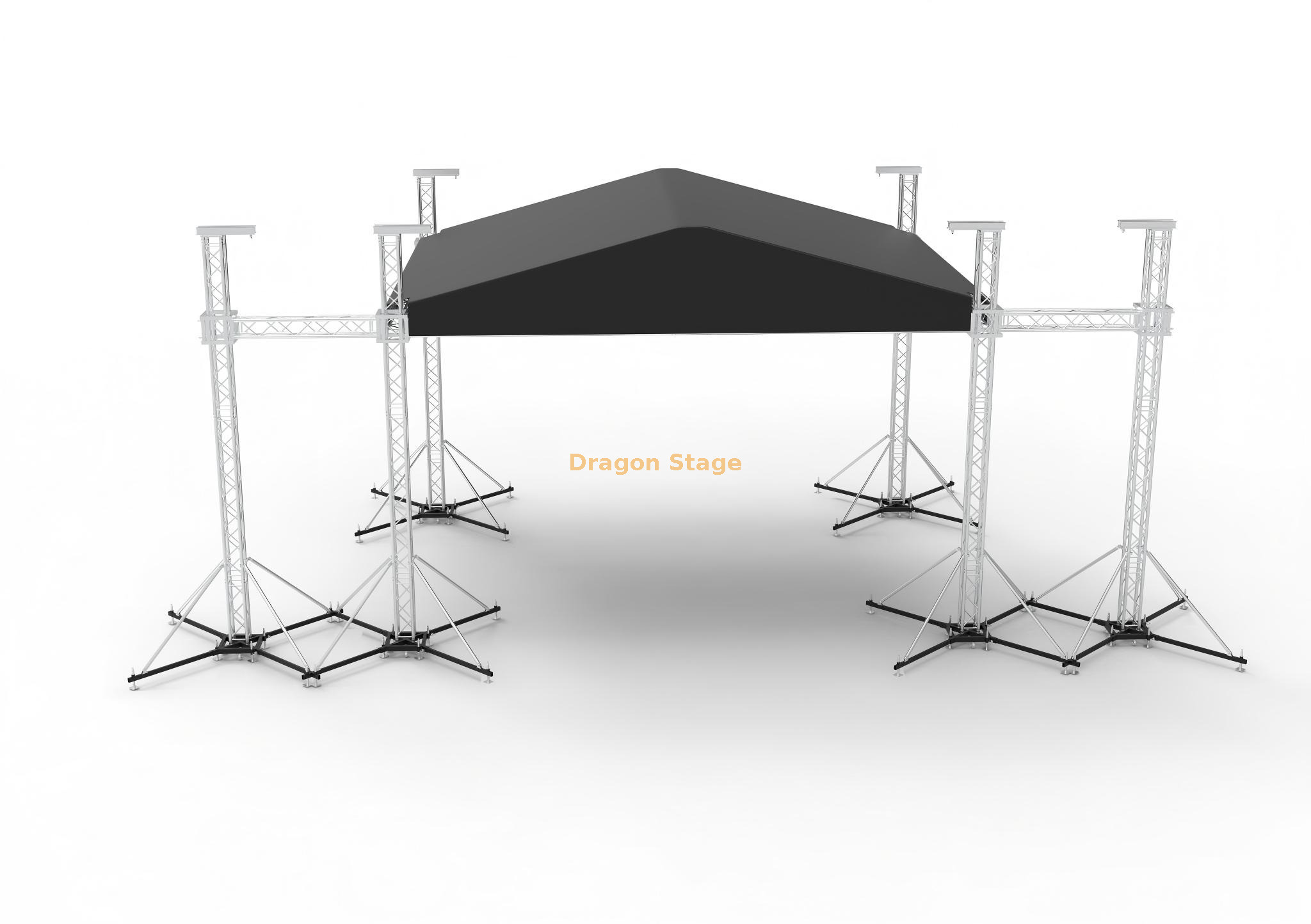

9x8x7m Portable Stage Truss System with Black Canopy Roof

packing weight:1620kg

packing volume:14cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
9.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.90 m	50×3.0	CS289×289	2pcs
8.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.70 m	50×3.0	CS289×289	4pcs
4.70 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	6pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.70 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			12pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		138.26	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	1 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	1pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Wings Pillar	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				1pcs
	Steel Base S				1pcs
	Top Section S				1pcs
	Manual hoist,BA05 2Tons				1pcs
	Spigot Hinge Section,Height 1m				1pcs
	Fibre sling,BA04,2 tons 3m				1pcs
	Long outrigger				4pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
