19x12x10m Professional Concert Roof with 5m LED Wings

5 0 Reviews

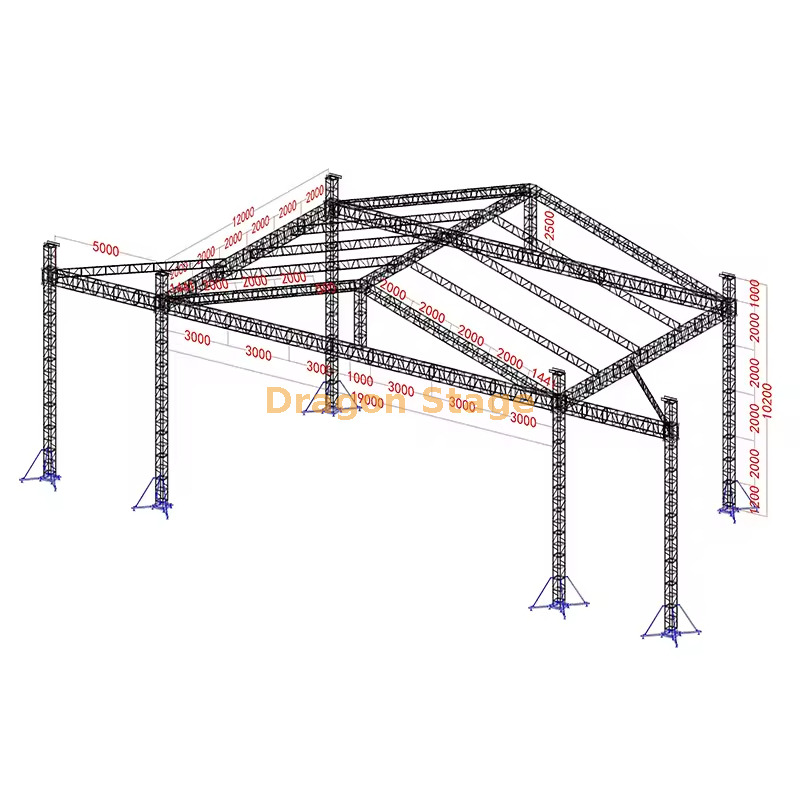

Professional 19m x 12m Aluminum Outdoor Concert Roof Truss System - 10m High Heavy-Duty Structure with Dual 5m LED Screen Support Wings

Price: ￥ 134220


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:3350kg

packing volume:44cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
19.00 m Beam(front)	2 sets	3.00 m	50×4.0	CS520×760	12pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	2pcs
12.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				4pcs
	Steel Base L				4pcs
	Top Section L				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.90 m	50×3.0	CS289×289	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
9.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.70 m	50×3.0	CS289×289	4pcs
9.70 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	20pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		1.70 m	50×3.0	CL30,289*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		369.46	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
5.00 m Wings Beam	1 sets	3.00 m	50×3.0	CS500×600	1pcs
		2.00 m	50×3.0	CS500×600	1pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Wings Pillar	1 sets	3.00 m	50×3.0	CS389×389	3pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block L				1pcs
	Steel Base L				1pcs
	Top Section L				1pcs
	Manual hoist,BA05 2Tons				1pcs
	Spigot Hinge Section,Height 1m				1pcs
	Fibre sling,BA04,2 tons 3m				1pcs
	Long outrigger				4pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

This Professional 19m x 12m Aluminum Concert Roof System is an elite-tier structural solution designed for high-impact visual productions. Standing at a towering height and featuring dedicated video support, this system is the definitive choice for modern festivals and touring events where large-scale LED integration is a priority.

Massive Performance Area: Provides a primary stage footprint of 19 meters wide and 12 meters deep, accommodating full-scale headline acts and extensive backline setups.
Integrated 5m LED Screen Wings: Features specialized 5-meter wide support wings on each side, specifically engineered to hang large-format LED video walls for maximum audience engagement.
Stadium-Scale 10m Elevation: Stands at a professional 10-meter height, offering the necessary vertical clearance for complex lighting arrays, pyrotechnics, and superior crowd visibility.
High-Stability 4-Pillar Support: Built on four industrial-grade vertical towers with heavy-duty outriggers and reinforced base plates to ensure absolute stability under heavy loads.
Premium Pitch Roof Design: The gable-style roof architecture provides a high-end aesthetic while ensuring efficient water drainage and structural rigidity for outdoor environments.
Industrial Material Grade: Fabricated from high-strength 6061-T6 aluminum alloy, offering an exceptional strength-to-weight ratio and natural resistance to outdoor weather conditions.
