19x12x8m 4-Pillar Bolt Square Truss Aluminium Roof Truss

5 0 Reviews

Professional 19m x 12m Aluminum Bolt Truss Outdoor Concert Roof System - 8m High Heavy-Duty 4-Pillar Ground Support Stage Structure. Expansive 19m x 12m aluminum bolt truss outdoor concert roof system standing 8m high. Featuring a high-strength 4-pillar ground support design, this professional stage structure is engineered for large-scale festivals, high-capacity lighting rigs, and touring concert productions.

Price: ￥ 104290


Availability:



Inquire

Brand:
Dragonstage

Product Description

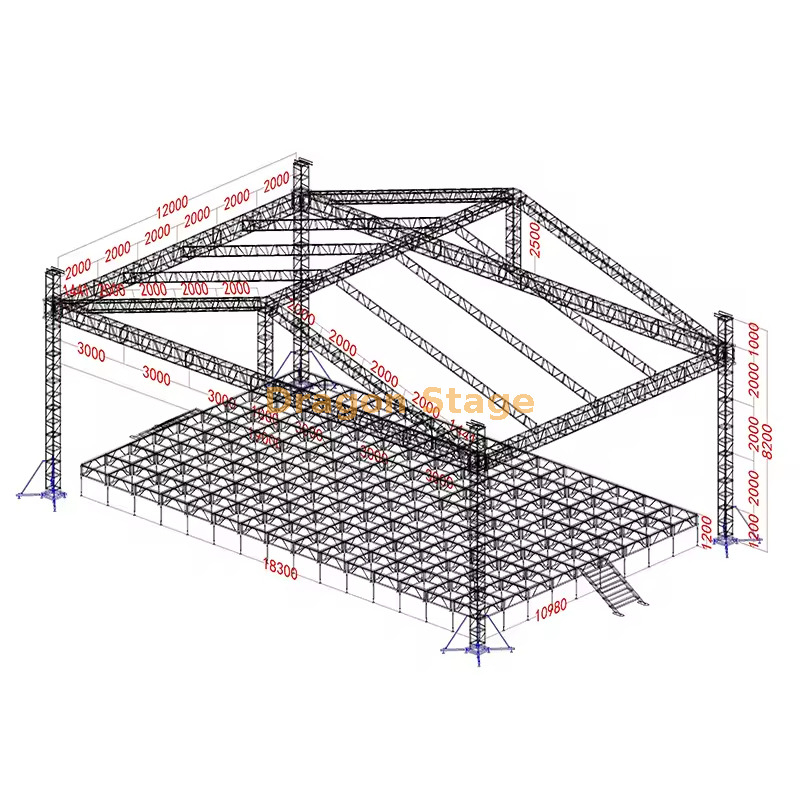

19x12x8m 4-Pillar Bolt Square Truss Aluminium Roof Truss

packing weight:2550kg

packing volume:29cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
19.00 m Beam(front)	2 sets	3.00 m	50×4.0	BS520×760	12pcs
		2.00 m	50×4.0	BS520×760	0pcs
		1.00 m	50×4.0	BS520×760	2pcs
12.00 m Beam(side)	2 sets	3.00 m	50×4.0	BS520×760	8pcs
		2.00 m	50×4.0	BS520×760	0pcs
		1.00 m	50×4.0	BS520×760	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	BS400×400	8pcs
		2.00 m	50×3.0	BS400×400	0pcs
		1.00 m	50×3.0	BS400×400	4pcs
beam cube	cube 520x760				0pcs
Frame Tower	Bolt Truss Sleeve Block L				4pcs
	Steel Base L				4pcs
	Top Section L				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.90 m	50×3.0	BS300×300	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	0pcs
9.70 m Oblique Beam	4 sets	3.00 m	50×3.0	BS300×300	8pcs
		2.00 m	50×3.0	BS300×300	4pcs
		1.70 m	50×3.0	BS300×300	4pcs
9.70 m Ladder truss	10 sets	3.00 m	50×3.0	BL30,300*50	20pcs
		2.00 m	50×3.0	BL30,300*50	10pcs
		1.70 m	50×3.0	BL30,300*50	10pcs
Roof Components		roof conner 4 ways, use for roof beam truss		BS300×300	2pcs
		roof conner 5 ways, use for roof beam truss		BS300×300	0pcs
		Connect plate with clamp			2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		369.46	1pcs

This Professional 19m x 12m 4-Pillar Bolt Truss Roof System is an elite structural solution designed for high-impact outdoor event productions. Engineered with heavy-duty bolt connection technology, this system offers exceptional rigidity and load-bearing performance for the most demanding technical riders.

Massive Performance Span: Offers a staggering 19-meter width and 12-meter depth, providing a stadium-grade footprint suitable for headlining bands, large orchestras, and expansive corporate stage sets.
Towering Vertical Clearance: Stands at a professional 8-meter height, providing the necessary overhead space for complex multi-layered lighting arrays, large-format LED screens, and aerial effects.
Precision Bolt Connection: Utilizes high-tensile bolt truss technology, ensuring maximum structural stiffness and a secure, vibration-resistant fit for long-duration outdoor installations.
Robust 4-Pillar Ground Support: Built on four heavy-duty vertical towers equipped with high-capacity sleeve blocks and reinforced outriggers to maintain absolute stability under heavy distributed loads.
Industrial-Grade Material: Constructed from premium certified 6061-T6 aluminum alloy, offering an industry-leading strength-to-weight ratio and superior resistance to corrosion in outdoor environments.
Advanced Drainage Design: The pitched roof architecture is specifically engineered for efficient water runoff, ensuring the stage area and sensitive electronic equipment remain protected during inclement weather.
