Dragon Stage
packing weight: 920kg
packing volume: 7cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 6pcs | |||
| 2.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
| 1.00 m | 50×3.0 | BS300×300 | 2pcs | |||||
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs | |||
| 2.00 m | 50×3.0 | BS300×300 | 2pcs | |||||
| 1.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
| 4.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 0pcs | |||
| 2.00 m | 50×3.0 | BS300×300 | 8pcs | |||||
| 1.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
| beam cube | cube 300x300 | 0pcs | ||||||
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||

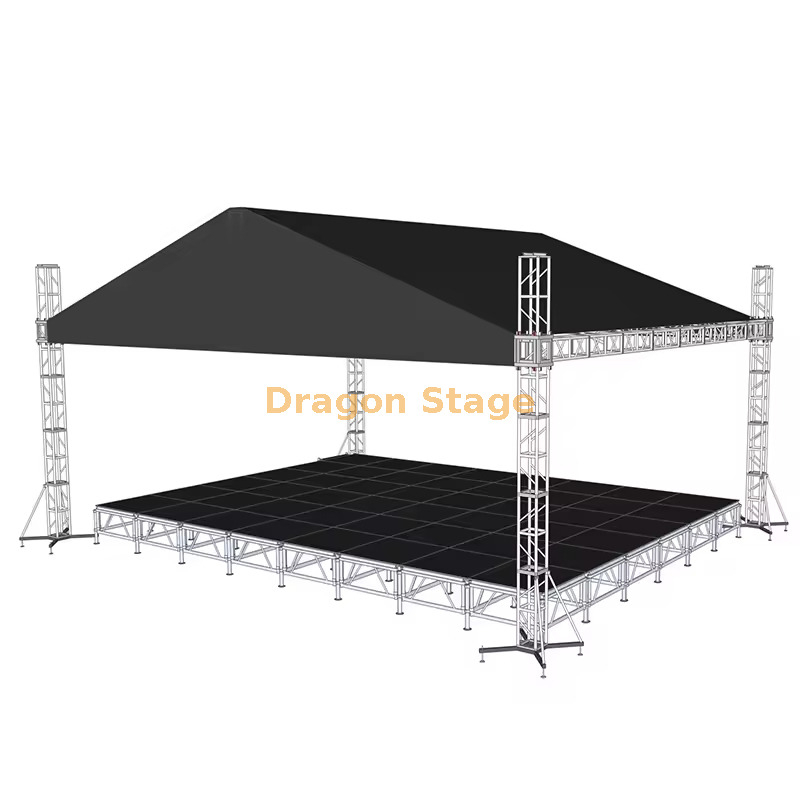

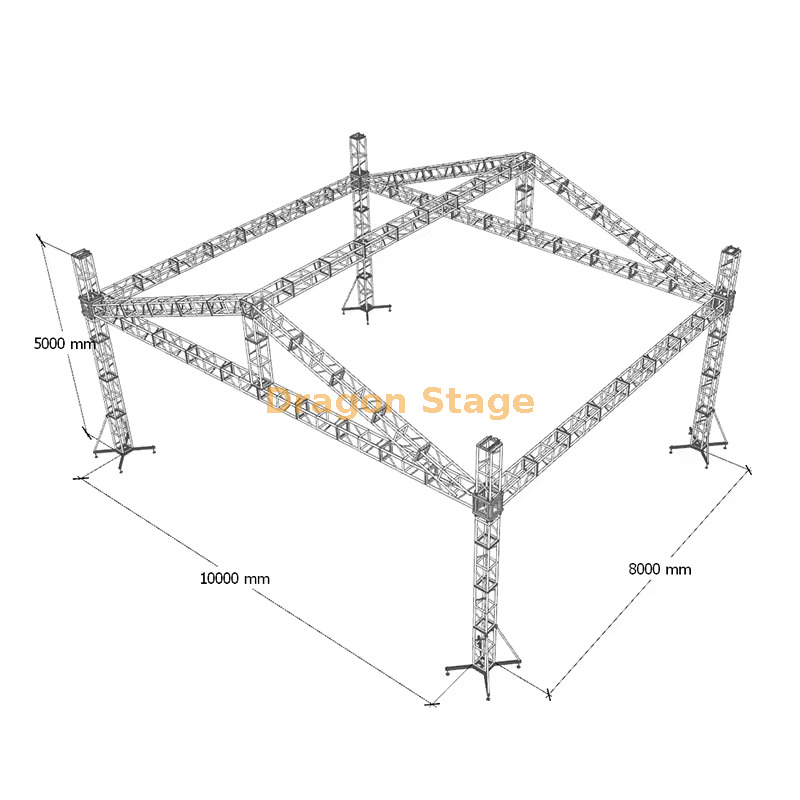

For outdoor fitness exhibitions, gymnasium performances, and community sports events, the structure must be as dynamic as the athletes it covers. The 10x8x5m Outdoor Gymnasium Performance Triangular Roof Truss by DragonStage is a specialized engineering solution providing 80 square meters of high-capacity covered space. Featuring a unique triangular peak design and a versatile 5-meter height, this system is optimized for stability and visibility. Built with high-strength aluminum and a precision-engineered framework, this system delivers the professional aesthetic and structural safety required for high-energy gymnasium performances in any outdoor environment.
A common challenge with 10-meter spans in outdoor settings is structural "sag" when supporting lighting or performance equipment. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers a higher yield strength and superior hardness than standard alloys, ensuring the 10-meter beams remain perfectly rigid. Another major pain point for outdoor gym events is weather management; flat roofs are prone to water accumulation. Our triangular roof geometry ensures high-velocity water runoff and superior aerodynamic performance against wind. For setups on sports fields or parks, the system includes reinforced tower bases with adjustable leveling jacks to maintain perfect vertical alignment on uneven terrain.
The 10x8x5m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material is solution heat-treated and cold-worked to achieve a high strength-to-weight ratio, making it resistant to the wear and tear of frequent outdoor deployments (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system utilizes a professional ground support configuration. This allows the entire 10x8m triangular grid to be rigged with gym equipment, lighting, and banners at waist height before being safely hoisted to its 5-meter apex. According to international safety standards, the triangular peak design is one of the most stable geometries for temporary outdoor structures, offering natural structural bracing against lateral forces (Source:https://www.plasa.org).
To provide a complete venue solution, this trussing is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces, providing a secure foundation for gymnasium performances that matches the high quality of the overhead triangular rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: Why choose a triangular roof for a gymnasium performance?A: The triangular design offers excellent water drainage and wind resistance, making it safer for outdoor use where weather can be unpredictable. It also provides a unique, dynamic look that fits sports-themed events.
Q: Can this 5-meter structure support heavy gym lighting?A: Yes. The 6061-T8 box truss is specifically engineered for high-capacity rigging. For specific point loads, please contact our engineers for a verified load-bearing report.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.
Q: How do we raise the 10-meter triangular grid?A: The system includes professional tower lifts. You can use manual chain hoists for efficiency or upgrade to electric motors for a more convenient 5-meter lift.
Ensure your next gymnasium performance is built on a foundation of professional engineering and absolute safety. Contact DragonStage’s engineering team today for a custom quote on the 10x8x5m Outdoor Triangular Roof Truss System. Download our technical specifications and start planning your most successful outdoor sports event yet.
