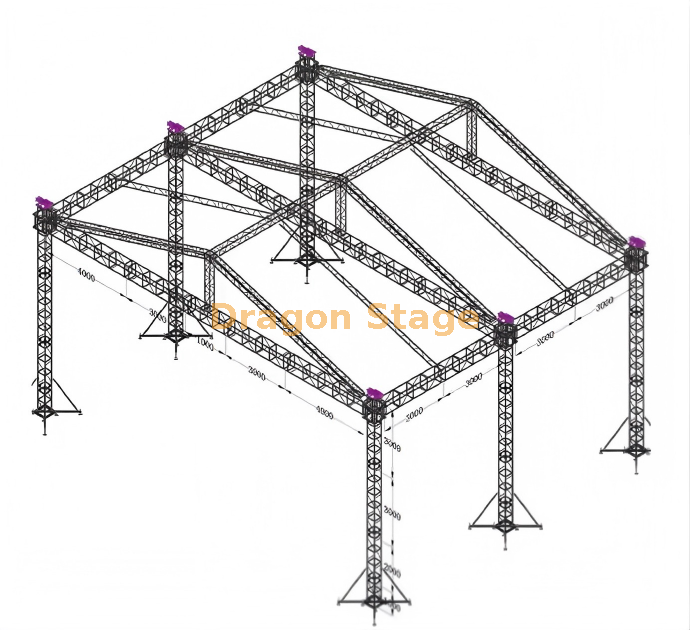

14x12x10m Aluminum Outdoor Concert Roof Truss System - 10m High Heavy-Duty 6-Pillar Ground Support Stage Structure

5 0 Reviews

Massive 14m x 12m aluminum outdoor concert roof truss system standing 10m high. Featuring a reinforced 6-pillar ground support design, this professional stage structure is engineered for medium-to-large festivals, high-capacity lighting rigs, and touring concert productions.

Price: ￥ 122880


Availability:



Inquire

Brand:
Dragonstage

packing weight:3075kg

packing volume:36cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
14.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	3pcs
		1.00 m	50×3.0	CS500×600	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	8pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.40 m	50×3.0	CS289×289	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		2.20 m	50×3.0	CS289×289	6pcs
7.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		2.20 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			16pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		274.96	1pcs

This Professional 14m x 12m 6-Pillar Aluminum Roof Truss System is a high-performance structural solution designed for professional outdoor event productions. By utilizing a robust six-tower configuration, this system offers superior stability and increased load-bearing capacity compared to standard four-pillar designs.

Expansive Performance Footprint: Offers a generous 14-meter width and 12-meter depth, providing a professional-grade space for full bands, large-scale corporate presentations, and festival setups.
High-Clearance Elevation: Stands at a towering 10-meter height, allowing for optimal lighting angles, high-impact visual effects, and excellent visibility for large audience crowds.
Reinforced 6-Pillar Support: The inclusion of six heavy-duty vertical towers distributes the roof's weight more effectively, significantly increasing the safety margin for heavy overhead lighting, audio line arrays, and LED screens.
Pitched Roof Architecture: The gable-style roof design is engineered for rapid water runoff and superior structural rigidity, ensuring the performance area remains protected in various outdoor conditions.
Industrial Strength Build: Fabricated from certified 6061-T6 aluminum alloy, offering an industry-leading strength-to-weight ratio and a natural resistance to corrosion for long-term outdoor use.
Advanced Ground Support: Equipped with high-capacity sleeve blocks, heavy-duty outriggers, and adjustable base plates to ensure a perfectly level and secure foundation on any venue surface.
