19x12x8m Professional 4-Pillar Outdoor Concert Roof System

5 0 Reviews

Professional 19m x 12m Aluminum Outdoor Concert Roof Truss System - 8m High Heavy-Duty 4-Pillar Ground Support Stage Structure

Massive 19m x 12m aluminum outdoor concert roof truss system standing 8m high. Featuring a high-stability 4-pillar ground support design, this professional stage structure is engineered for large-scale festivals, high-capacity lighting rigs, and professional touring productions.

Price: ￥ 120490


Availability:



Inquire

Brand:
Dragonstage

Product Description

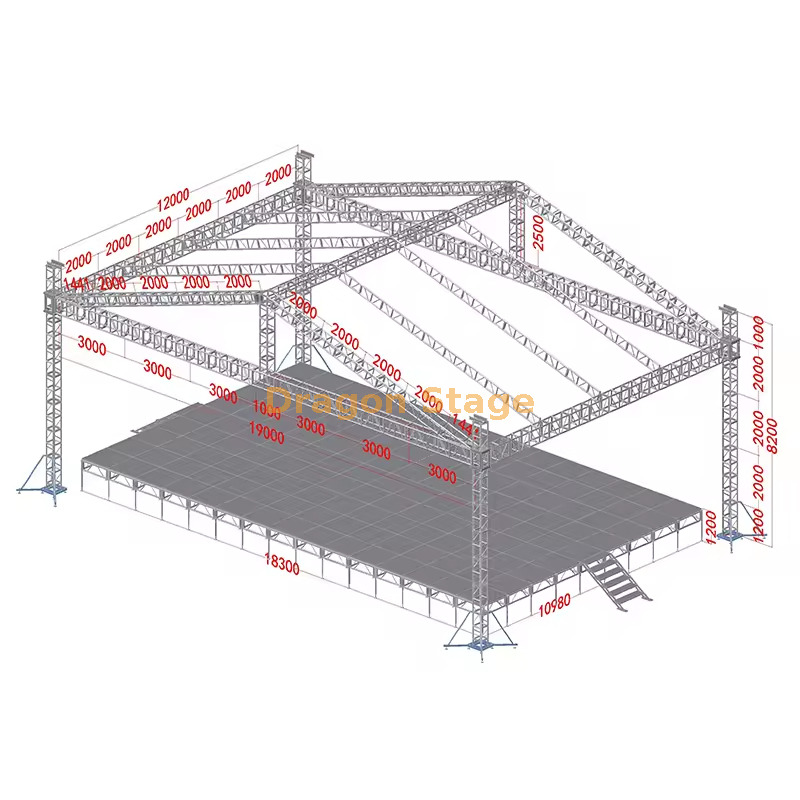

Professional 4-Pillar Outdoor Concert Roof System

packing weight:2950kg

packing volume:29cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
19.00 m Beam(front)	2 sets	3.00 m	50×4.0	CS520×760	12pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	2pcs
12.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	4pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				4pcs
	Steel Base L				4pcs
	Top Section L				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.90 m	50×3.0	CS289×289	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
9.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.70 m	50×3.0	CS289×289	4pcs
9.70 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	20pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		1.70 m	50×3.0	CL30,289*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		369.46	1pcs

This Professional 19m x 12m 4-Pillar Aluminum Roof Truss System is a premier structural solution designed for major outdoor event productions. Engineered for massive overhead coverage and high-load capacity, this system provides a rock-solid foundation for the most demanding technical requirements.

Extra-Wide Performance Area: Offers an expansive 19-meter width and 12-meter depth, providing a professional-grade footprint for headliner bands, large orchestras, and complex stage sets.
Optimum Clearance: Stands at a towering 8-meter height, allowing for professional lighting angles, high-impact visual displays, and clear sightlines for thousands of attendees.
High-Stability 4-Pillar Design: Utilizes four heavy-duty vertical towers equipped with reinforced outriggers and industrial base plates to ensure maximum safety and balance on varied outdoor terrain.
Reinforced Pitched Roof: The gable roof architecture is engineered for superior weight distribution and efficient water drainage, protecting the stage and sensitive technical equipment from the elements.
Premium Material Build: Constructed from certified 6061-T6 aluminum alloy, offering an industry-leading strength-to-weight ratio and a professional finish resistant to environmental wear.
Modular Rigging Frame: The comprehensive perimeter and cross-beam layout provide a high density of secure hanging points for large line arrays, massive LED walls, and elaborate lighting arrays.
