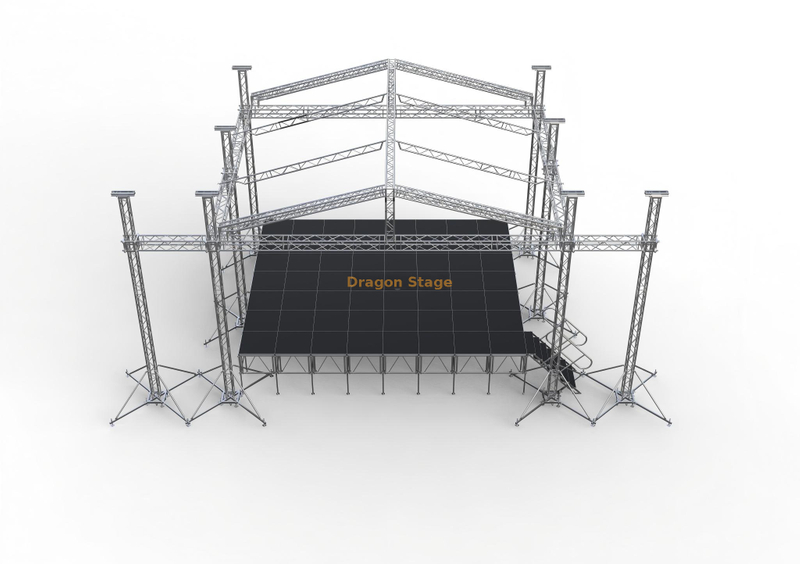

16x12x9m Portable Aluminum Stage Truss System with Dual 2m Sound Tower Wings

5 0 Reviews

For large-scale regional festivals and mid-sized stadium tours, height and audio coverage are the benchmarks of a professional production. The 16x12x9m Portable Aluminum Stage Truss System by DragonStage is a comprehensive venue solution offering a massive 192 square meters of primary covered space. Featuring a commanding 9-meter vertical clearance and specialized 2-meter side wings for audio line arrays, this system is engineered for elite technical riders.

Price: ￥ 153120


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:3900kg

packing volume:36cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
16.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	15pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	3pcs
12.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
8.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.60 m	50×3.0	CS289×289	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
8.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	6pcs
		.20 m	50×3.0	CS289×289	6pcs
8.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	16pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		.20 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			16pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		312.16	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	1 sets	3.00 m	50×4.0	CS520×760	0pcs
		2.00 m	50×4.0	CS520×760	1pcs
		1.00 m	50×4.0	CS520×760	0pcs
8.00 m Wings Pillar	1 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	1pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block L				1pcs
	Steel Base L				1pcs
	Top Section L				1pcs
	Manual hoist,BA05 2Tons				1pcs
	Spigot Hinge Section,Height 1m				1pcs
	Fibre sling,BA04,2 tons 3m				1pcs
	Long outrigger				4pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
