Dragonstage
the total trade show truss design is made of 290x290mm spiogt truss, cube and base plate 300x300mm
total packing weight: 350kg
packing volume: 3.5cbm
2m 290x290mm spiogt truss 8p
2.5m 290x290mm spiogt truss 6p
cube 6p
300x300mm base 4p

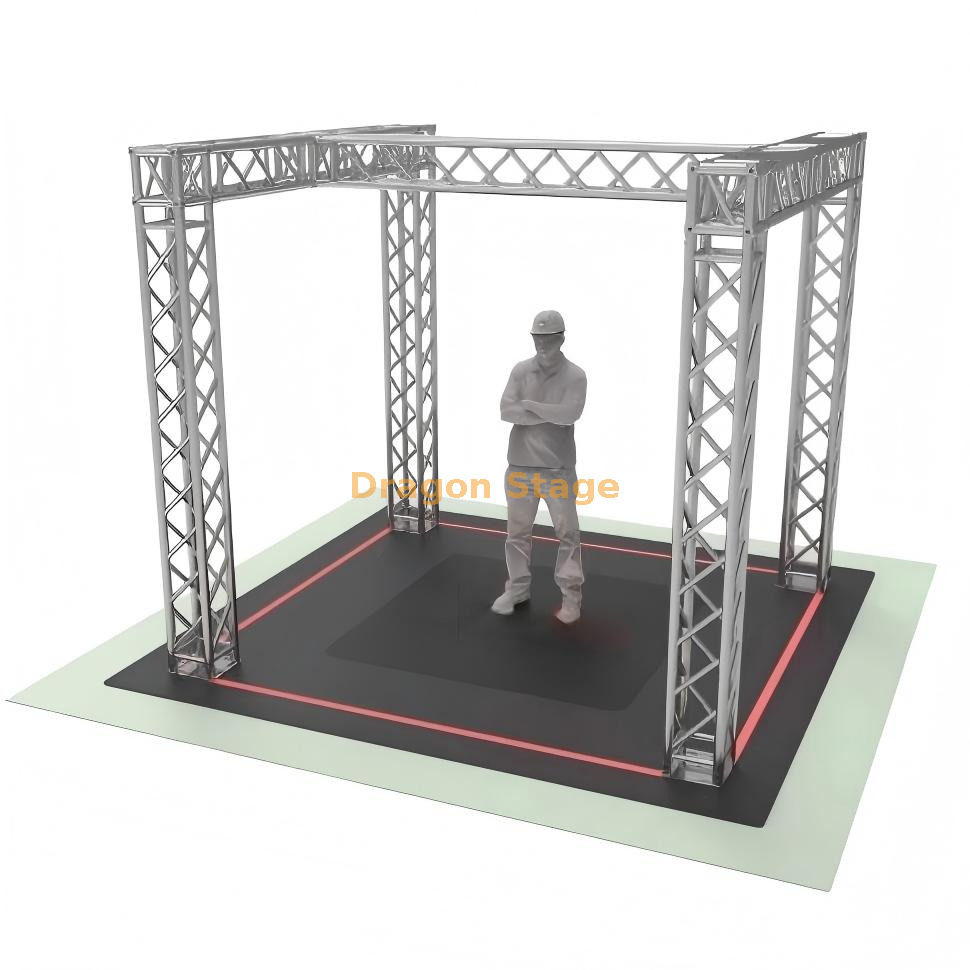

In the competitive environment of a convention center, your booth's architecture is the first thing a potential client notices. The 5x5x4m H-Shape Design Tradeshow Booth by DragonStage is a premier engineering solution designed to maximize visibility and functional floor space. Standing at a commanding 4-meter height with a 5-meter footprint, this modular structure provides a sophisticated H-shape layout that naturally defines reception and product demonstration zones. Built with high-strength aluminum and a precision bolt-connection framework, this booth offers the industrial-grade stability required for hanging heavy marketing assets while maintaining a clean, professional aesthetic.
A common challenge with exhibition booths is balancing structural strength with portability. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which is solution heat-treated and cold-worked to achieve a higher yield strength and hardness than standard alloys. This ensures that the 5-meter horizontal spans remain perfectly rigid even when supporting heavy LED monitors or complex lighting plots. Another pain point is the "wobble" often found in lightweight booths; our H-shape design features reinforced base plates and a structural geometry that provides superior lateral stability. Furthermore, the modular nature of the truss allows for rapid assembly, significantly reducing the labor costs and setup time associated with major tradeshows.
The 5x5x4m booth is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material ensures the structure remains a rigid, professional asset over years of frequent use, resisting the surface scratches and structural fatigue common in rental-grade equipment (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The H-shape configuration offers a unique branding opportunity. By utilizing the 4-meter height, exhibitors can hang large-format banners that are visible from the back of the hall. According to international exhibition safety standards, the use of a bolt-connection system provides a secure, multi-point union at each joint, ensuring that overhead equipment is suspended with absolute safety (Source:https://www.plasa.org).
To provide a complete exhibit environment, this booth is designed for seamless integration with our modular aluminum stage platforms. Whether you need a raised flooring system for a VIP lounge or a product stage, the material consistency ensures a professional and unified look for your brand (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: Why use 6061-T8 alloy for an exhibition booth?A: Exhibition halls can be busy environments. The T8 temper is harder and more durable, ensuring your truss remains straight and professional-looking even after being shipped and assembled hundreds of times.
Q: Can this 4-meter structure support heavy LED video walls?A: Yes. The 6061-T8 aluminum truss is specifically engineered for high-capacity rigging. For your specific screen weight, please contact our engineers for a verified load-bearing report.
Q: Is the H-shape design reconfigurable?A: Absolutely. The modular nature of the truss sections allows you to rebuild the booth into different sizes or shapes (like a U-shape or square) depending on your booth space for the next show.
Q: How do we transport a 5x5m booth?A: The booth is designed to be dismantled into individual truss sections, typically 1m to 2m in length, allowing the entire kit to fit into a standard exhibition crate or a small cargo van.
Ensure your next tradeshow is built on a foundation of professional engineering and high-impact design. Contact DragonStage’s engineering team today for a custom quote on the 5x5x4m H-Shape Design Tradeshow Booth. Download our technical specifications and start planning your most successful exhibition season yet.
