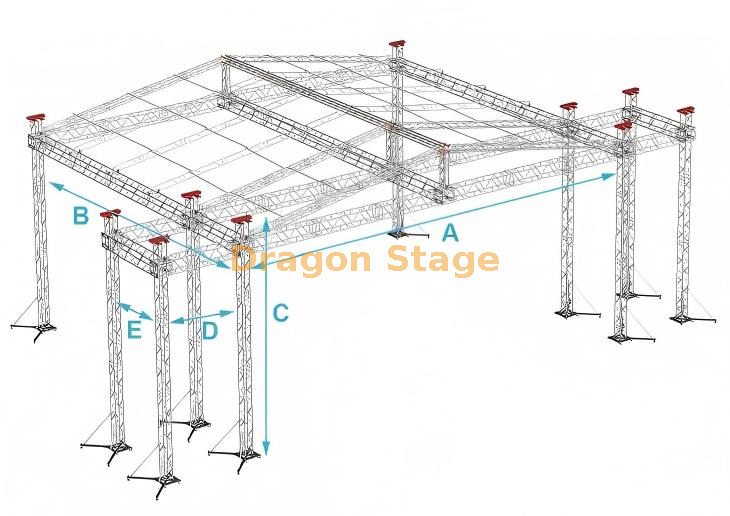

What is a 20×20×12m Concert Stage Roof System?
A 20×20×12m concert stage roof system is a large-scale aluminum ground support truss structure designed for outdoor concerts and festivals. It provides a complete structural solution including stage roof, lighting rigging system and dedicated speaker wings for line array suspension.
System Overview
This system is a stadium-grade ground support truss structure, featuring:
20m × 20m main stage roof
12m structural height
6-pillar heavy-duty support system
dual 3m-wide speaker wings
integrated lighting, LED and audio rigging capability It is designed for:
large concerts
music festivals
touring productions
high-load stage environments
Explore system-level solutions:
Engineering & Solution
Structural Configuration
Main Stage Structure
20m front beam (CS600×760 heavy truss)
20m side beams
6 vertical pillars (CS450×450)
reinforced sleeve block lifting system
Roof System
Speaker Wings (Key Feature)
dual 3m-wide truss frames
independent support towers
optimized for line array suspension
This is critical for:
Why This System is High-Level
1. Ground Support System
Unlike hanging systems:
→ Modular System Logic
2. High Load Capacity Structure
Using:
Enables:
→ Load Analysis for Modular Stage Systems
3. Integrated Audio + Lighting System
Unlike basic stage roofs:
This system includes:
4. Stability for Outdoor Conditions
Equipped with:
→ Safety Standards & Engineering Constraints
packing weight:6700kg
packing volume:69cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS600×760 | 18pcs |
| 2.00 m | 50×4.0 | CS600×760 | 3pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 20.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 12pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 4pcs |
| 11.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS450×450 | 18pcs |
| 2.00 m | 50×3.0 | CS450×450 | 6pcs |
| 1.00 m | 50×3.0 | CS450×450 | 0pcs |
| beam cube | 6 faces | CS600×760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 6pcs |
| Steel Base L | 6pcs |
| Top Section L | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS389×389 | 3pcs |
| 20.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 10.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.20 m | 50×3.0 | CS389×389 | 6pcs |
| 10.20 m Ladder truss | 16 sets | 3.00 m | 50×3.0 | CL40,389*50 | 32pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 16pcs |
| 2.20 m | 50×3.0 | CL40,389*50 | 16pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 1pcs |
| 1 | Connect plate with clamp | CS389×389 | 3pcs |
| Single clamp | 32pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 571.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Wings Beam | 4 sets | 3.00 m | 50×4.0 | CS600×760 | 8pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 8pcs |
| 11.00 m Wings Pillar | 4 sets | 3.00 m | 50×3.0 | CS450×450 | 12pcs |
| 2.00 m | 50×3.0 | CS450×450 | 4pcs |
| 1.00 m | 50×3.0 | CS450×450 | 0pcs |
| Wings Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
This Professional 20m x 20m Stadium-Grade Concert Roof System represents the ultimate in large-scale event engineering. Designed to provide a massive performance footprint and extreme vertical clearance, this structure is the definitive choice for headliner festival stages and international touring productions.
Expansive Main Performance Area: Features a primary stage footprint of 20 meters in width and 20 meters in depth, providing a vast 400-square-meter space for full orchestral setups and complex theatrical scenery.
Massive 12m Vertical Clearance: Standing at a towering 12-meter height, this system offers the necessary overhead space for multi-layered lighting rigs, massive LED video walls, and high-impact pyrotechnic effects.
Advanced 6-Pillar Support: The main body is supported by six heavy-duty aluminum pillars, ensuring maximum structural integrity and distributed load-bearing safety for heavy overhead equipment.
Dual Reinforced Speaker Wings: Includes two specialized 3m wide by 10m deep box-truss frames on either side. These wings are specifically engineered as independent PA towers to securely suspend massive line array sound systems.
Industrial Strength Construction: Fabricated from high-grade 6061-T6 aluminum alloy, offering an industry-leading strength-to-weight ratio and exceptional resistance to environmental stress.
Professional Ground Support: Equipped with reinforced base plates, high-capacity sleeve blocks, and heavy-duty outriggers to ensure rock-solid stability on varied outdoor terrain.
Application Scenarios
Large Concert & Festival Stage
→ Concert & Event Stage Solution
Touring Production Stage System
→ Touring Stage Systems
High-Capacity Outdoor Event
→ Applications Overview
Engineering Insight
Ground Support vs Hanging System
Ground support:
independent structure
higher safety control
suitable for outdoor
Hanging system:
depends on venue
limited load capacity
→ LED Ground Support vs Hanging System
Load Path & Structural Logic
Load is transferred:
lighting / LED / speakers
→ top beam
→ pillars
→ base plates
→ ground
Any weak point can cause failure.
Material Engineering
Uses 6061-T6 aluminum:
→ Aluminum Material Guide
Installation & Safety Complexity
This system requires:
→ Installation Methodology Guide
FAQ
Is this suitable for festivals?
Yes, this system is designed for large-scale concerts and festivals.
Can it support LED walls?
Yes, heavy-duty beams allow large LED screen installation.
Why include speaker wings?
To safely suspend line array systems without affecting main structure load.
Is customization available?
Yes, size, height and configuration can be fully customized.
→ Custom Stage Production
