Layher Stage with Frame Truss System 8x6x6m

5 0 Reviews

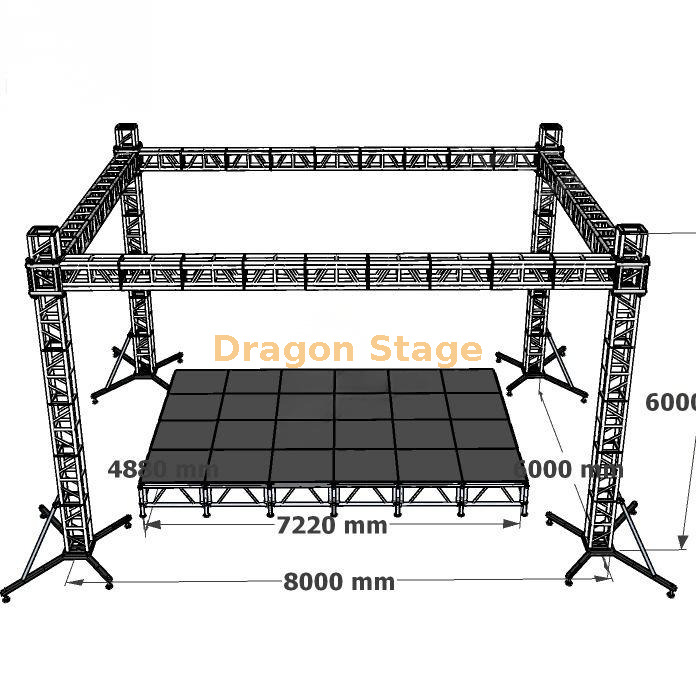

the truss system total is 8x6x6m,
the layher stage total sizes are 24x20ft （7.32x6.1m）, we give several height options for client to choose.

Price: ￥ 13844  -  30000
features:
8x6x6m
0.4-0.6m
0.6-1m
1-1.5m
1.5-2m
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Dragon Stage

  • Expansive Coverage: The 8m x 6m x 6m aluminum truss structure provides significant overhead capacity for professional lighting rigs, sound systems, and visual displays.

  • Durable Stage Platform: Our genuine Layher stage measures 24ft x 20ft, offering a sturdy and reliable surface for performers and equipment.

  • Customizable Height: We provide several height options for the stage platform to perfectly accommodate your venue's requirements and audience sightlines.

  • Professional Grade: Both the truss and stage components are designed for heavy-duty, repeated professional use in concert productions, festivals, and major events.

packing weight：900kg

packing volume:7cbm

Item
Specification(squre truss) Qty

length main tube(mm) size(mm)
8.00 m Beam(front) 2 sets 3.00 m 50×3.0 CS289×289 4pcs
2.00 m 50×3.0 CS289×289 2pcs
1.00 m 50×3.0 CS289×289 0pcs
6.00 m Beam(side) 2 sets 3.00 m 50×3.0 CS289×289 4pcs
2.00 m 50×3.0 CS289×289 2pcs
1.00 m 50×3.0 CS289×289 0pcs
5.00 m Pillar 4 sets 3.00 m 50×3.0 CS289×289 4pcs
2.00 m 50×3.0 CS289×289 4pcs
1.00 m 50×3.0 CS289×289 0pcs
beam cube Spigotcube 289x289 0pcs
Frame Tower Spigot Sleeve Block S 4pcs
Steel Base S 4pcs
Top Section S 4pcs
Manual hoist,BA05 2Tons 4pcs
Spigot Hinge Section,Height 1m 4pcs
Fibre sling,BA04,2 tons 3m 4pcs
Long outrigger 16pcs

Layher Stage with Frame Truss System 8x6x6m


 0.4-0.6m 0.6-1m 1-1.5m 1.5-2m
packing weight:
 1400kg
 1470kg 1650kg
 1750kg
packing volume:
 6.5cbm 6.8cbm
 7cbm 7.2cbm
Item Specification Quantity
steel assembly stage topping: 4x8ft
(1.22x2.44m)		 wooden 15 pcs
LR01,pillar and inner tube L= 1.40m 24 pcs
LR02,horizontal pipe,length:8ft 18 pcs
LR02,horizontal pipe,length:4ft 20 pcs
Fork 24 pcs
clamp 18 pcs
Stage adjustable base 24 pcs
Stage Stair wooden topping total 3 steps 2 pcs

2m high stage

Item Specification Quantity
steel assembly stage topping: 4x8ft
(1.22x2.44m)		 wooden 15 pcs
LR01,pillar and inner tube L= 1.40m 24 pcs
LR02,horizontal pipe,length:8ft 36 pcs
LR02,horizontal pipe,length:4ft 40 pcs
LR03,diagonal pipe(long side) L= 2.81 6 pcs
LR03,diagonal pipe(short side) L= 1.86 10 pcs
Fork 24 pcs
clamp 18 pcs
Stage adjustable base 24 pcs
Stage Stair wooden topping total 8 steps 2 pcs

Steel Scaffolding Construction Layher Truss Stage 8x3x1m with 2 Adjustable Stairs
