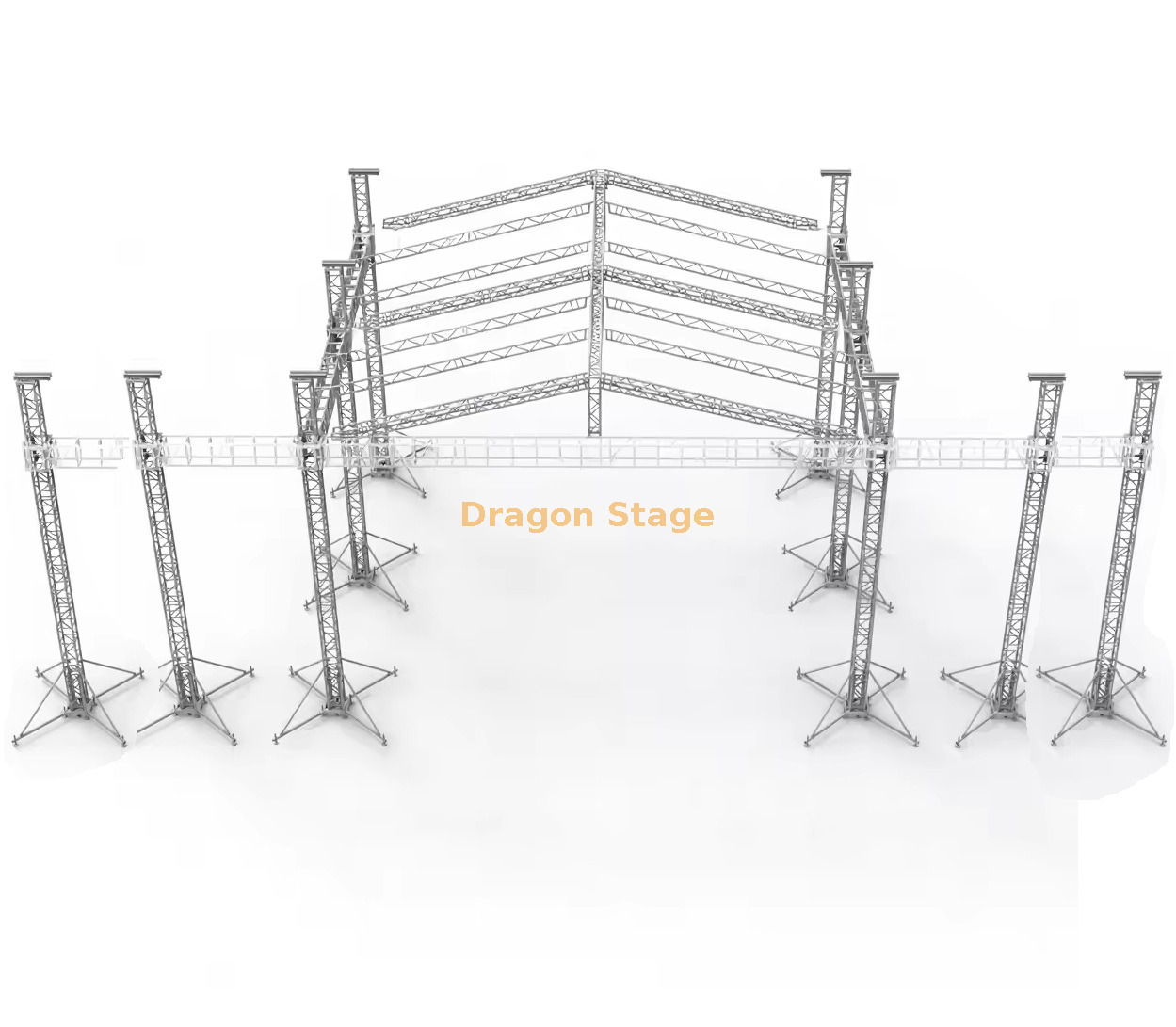

12x12x9m Outdoor Roof Stage with Led Screen 5m And Line Array Truss 1.5m

5 0 Reviews

its total sizes 12x12x9m (40x40x30ft) Outdoor Roof Stage with Led Screen 5m And Line Array Truss 1.5m for concerts and events

32 x 32 feet, 9.76 x 9.76 m, height 1.2-2 m with a staircase and 4.88x4.88 m of front platform

Price: ￥ 61430 - 115982


fea:	roof trus system walkway stage
Availability:



Inquire

Brand:
Dragon Stage

Product Description

This custom Outdoor Roof Stage system is a substantial, professional-grade solution designed for large concerts and events, combining a massive main truss structure for overhead rigging with a versatile, low-profile performance deck. The modular design allows for flexible setup and includes dedicated sections for sound and video equipment.

12x12x9m Outdoor Roof Stage with Led Screen 5m And Line Array Truss 1.5m

packing weight: 3000kg

packing volume: 20cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
14.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	Spigot cube 389x389				0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.20 m	50×3.0	CS289×289	3pcs
14.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
6.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	10pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		1.20 m	50×3.0	CL30,289*50	10pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			20pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		268.16	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
5.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight: 2050+510

packing volume: 13+3.5

Item	Specification				Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden		32 pcs
	1.22m stage brace				40 pcs
	2.44m stage brace				36 pcs
	stand with extendable tube				45 pcs
	Stage adjustable base				45 pcs
Stage Stair	wooden topping	total	8	steps	2 pcs

Item	Specification		Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)	wooden	8 pcs
	1.22m stage brace		12 pcs
	2.44m stage brace		10 pcs
	stand with extendable tube		15 pcs
	Stage adjustable base		15 pcs
