Stage Led Video Wall And Line Array Concert Roof Stage 18x16x14m
Introduction: The Foundation of Large-Scale Live Production

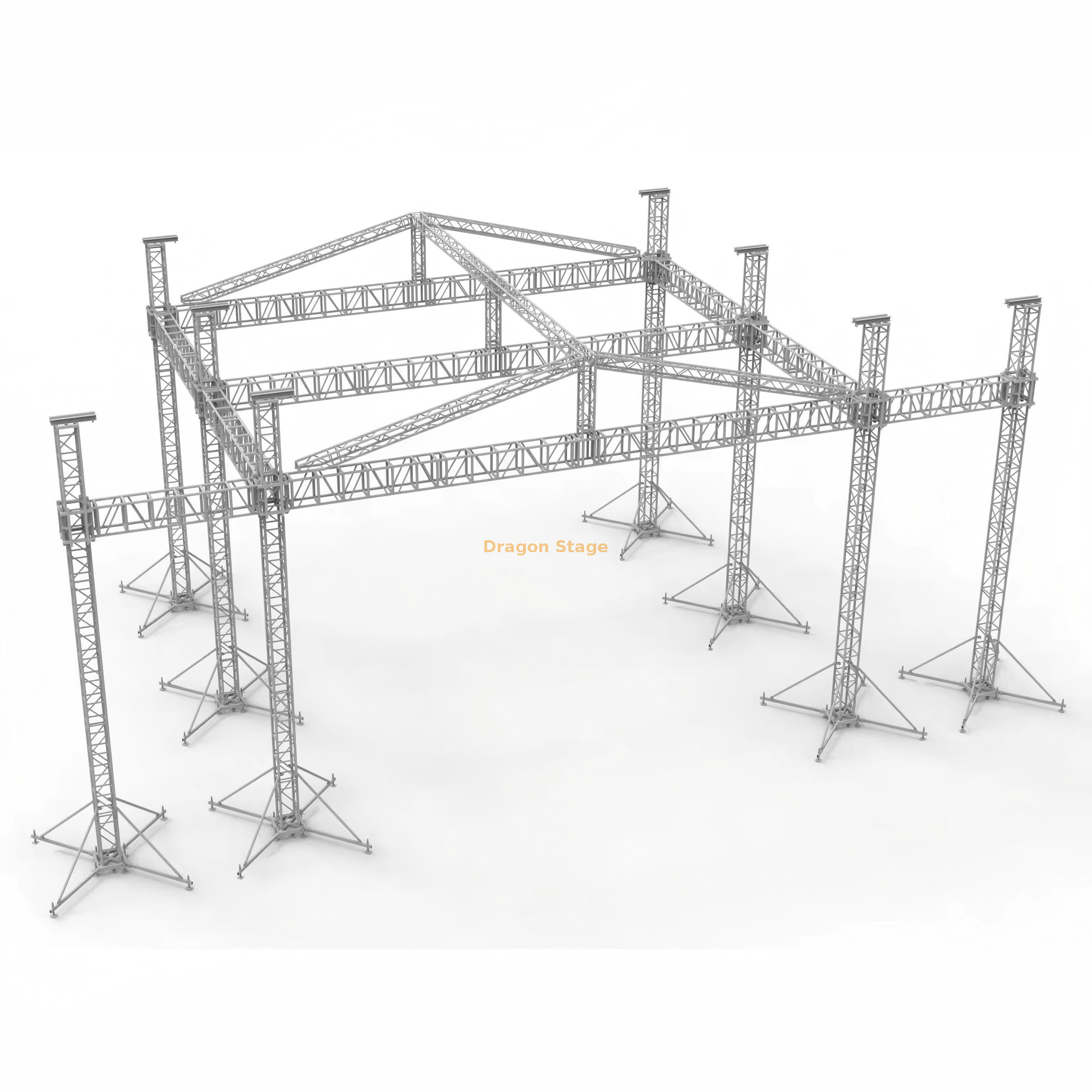

The DragonStage Stage Led Video Wall And Line Array Concert Roof Stage is a colossal, heavy-duty structural solution designed for the most demanding large-scale outdoor festivals, stadium concerts, and major touring productions. The main body features enormous dimensions of 18 meters long by 16 meters deep, reaching an extreme height of 14 meters. This custom roof truss system is specifically engineered to handle the substantial weight and technical requirements of modern media, including large LED video walls and heavy line array speaker systems.
This structure is built to stand out, offering unparalleled vertical clearance and rigging points. Its key differentiation is the utilization of two independent, massive 8-meter long sound truss wings, which extend the structure's overall sound-rigging width significantly, ensuring audio coverage meets the demands of a major venue.
Challenges & Solutions in Modern Event Construction
This customized truss system provides specialized solutions for the most complex structural and logistical challenges in the live event industry:
Extreme Load Capacity Requirement: Traditional trusses often cannot handle the combined weight of massive LED screens and audio arrays. This system employs the largest standard profiles (CS500x600 Beam and CS350x350 Pillar) with a 50mm x 3.0mm main tube size to achieve the necessary strength and load rating for the 18m clear span.
High-Altitude Erection and Safety: The 14m height necessitates enhanced stability and controlled lifting. The structure utilizes 6 main pillars and is equipped with 6 sets of 2-Ton Manual Hoists (BA05) for secure, controlled raising and lowering of the massive roof grid. Stability is ensured by 24 Long Outriggers at the base of the six main towers.
Integrated Media Support: To manage diverse loads, the system includes special rigging points: 5m long beams for hanging LED and 10m truss sections for hanging lighting within the main body, alongside the two massive, dedicated speaker wings.
Large-Scale Performance Area: The system includes an enormous stage platform measuring approximately 17.08m x 14.64m (56x48ft), constructed from 84 pieces of 4x8ft wooden topping, providing a professional and stable performance deck suitable for large ensembles.
Key Features & Benefits for Event Professionals
The Stage Led Video Wall And Line Array Concert Roof Stage 18x16x14m is built for world-class touring and festival production.
| Feature | Specification Details | Client Benefit |
| Overall Dimensions (L x W x H) | 18m x 16m x 14m (Truss Body) | Creates one of the largest available modular stages for international festival and concert main stages. |
| Main Truss Profiles | CS500x600 (Beam), CS350x350 (Pillar) | Heavy-duty classification ensures superior capacity for the heaviest lighting, sound, and video equipment. |
| Dedicated Wing Towers | Two 8m long wings; 20m wings beam (CS500x600) | Safely suspends massive line array speaker clusters, isolating the load from the main roof structure. |
| Stage Platform Size | Approx. 17.08m x 14.64m (84 pieces of 4x8ft decking) | Provides an expansive, adjustable, and professional surface for all production needs. |
| Connection Type | Spigot (Conical Coupler, Safety Clip, Pin) | Ensures reliable and efficient assembly/disassembly despite the immense size and complexity. |
| Canopy Coverage | PVC material, 433.36 sqm | Offers comprehensive weather protection for technical equipment and performers on the stage. |
The main structural components consistently use a professional-grade 50mm x 3.0mm main tube size, a key identifier of its heavy-duty rating. The entire structure is designed for a secure, controlled build, making it a reliable solution for high-profile events.
Practical FAQ for Stage Professionals
Q: What is the total logistical volume and weight for the entire system?
A: The total packing volume is approximately 87 CBM (Truss: 55 CBM / 5104 kg; Stage: 32 CBM / 5000 kg), totaling over 10 tons.
Q: How is the stage height adjusted?
A: The stage height is fully adjustable between 1.2m and 2.0m using the included stands with extendable tubes and corresponding adjustable bases.
Q: How is the roof typically raised?
A: The roof is raised using 6 sets of 2-Ton Manual Hoists, which allow for gradual, controlled, and safe vertical assembly of the roof section along the 13m pillars.
Q: Does this system support a full-width LED wall at the back?
A: Yes, the truss structure is specifically configured to support large video walls, featuring specialized 5m long internal beams for LED hanging points.
Strong Call to Action (CTA)
For major concerts, festivals, and touring events demanding exceptional height, load capacity, and specialized video/audio support, choose the robust engineering of the DragonStage Stage Led Video Wall And Line Array Concert Roof Stage 18x16x14m.
Contact DragonStage's engineering team today to secure certified load data and customized production drawings for your next international-class event.
