packing weight:1350kg

packing volume:18cbm

This Professional 12m x 12m Square Aluminum Truss System provides a high-capacity, expansive rigging solution for major event productions. Designed as a robust square perimeter, this system is engineered to support substantial lighting, audio, and visual loads at a towering height.

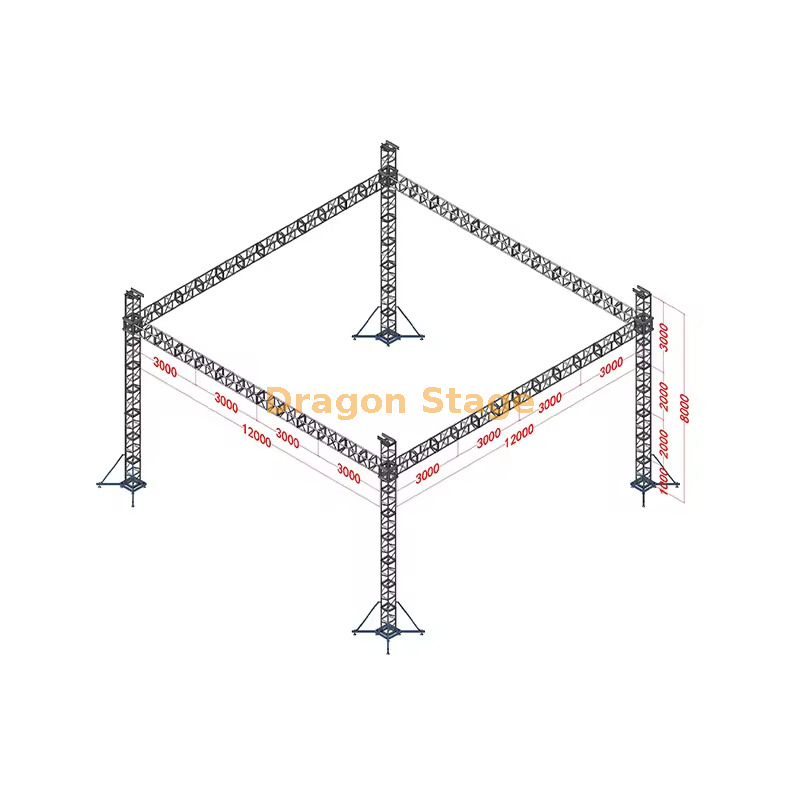

• Massive Dimensions: The system offers a vast 12-meter width and depth footprint, standing at a professional 8-meter height, perfect for arena-style setups and large outdoor plazas.

• Modular Box Truss Construction: Built using standardized 3000mm (3m) truss sections, the system is highly modular, allowing for efficient transport and flexible assembly configurations.

• Advanced Ground Support: The structure utilizes four heavy-duty vertical towers equipped with extended outriggers and stable base plates to ensure maximum safety and balance for top-heavy rigging loads.

• Versatile Rigging Frame: The square grid design provides a continuous overhead perimeter, ideal for hanging circular lighting arrays, LED banners, or creating a complete perimeter for stage backdrops and branding.

• Industrial Strength: Constructed from certified 6061-T6 aluminum alloy, offering an exceptional strength-to-weight ratio and a high-gloss, professional finish that remains resistant to corrosion.

Professional 12x12x8m Aluminum Ground Support Bolt Truss System with 8m Height

1. Introduction

For large-scale outdoor events, regional festivals, and high-profile corporate activations, the overhead structure must be a bastion of safety and technical flexibility. The 12x12x8m Professional Aluminum Ground Support Bolt Truss System by DragonStage provides a massive 144 square meters of covered performance space. Standing at a commanding 8-meter height, this system is engineered for productions that demand high-capacity rigging for lighting, audio, and large-format LED screens. Utilizing a traditional bolt-connection method, this system offers the structural rigidity and massive load-bearing capacity required by the most demanding technical riders in the industry.

2. Challenges & Solutions

A major challenge for 12-meter clear spans is managing the structural deflection caused by heavy centered loads. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers superior tensile strength and a higher yield point than standard alloys, ensuring the 12-meter horizontal beams remain perfectly rigid under load. Another common pain point is the stability of high-profile structures in outdoor environments. Our ground support system features reinforced tower bases with extended outriggers and heavy-duty leveling jacks, providing a secure center of gravity that resists lateral wind forces. To protect technical gear, the system includes a high-tension, pitched PVC canopy designed for immediate water runoff, preventing dangerous water accumulation during sudden storms.

3. Key Features & Benefits

This 12x12x8m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material is solution heat-treated and cold-worked to achieve maximum hardness, making it highly resistant to the structural "creep" and wear often found in high-frequency rental equipment (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The system utilizes a 4-tower ground support lift. This allows the entire 12x12m roof grid to be rigged with lighting and cabling at waist height before being safely hoisted to its 8-meter apex. According to international safety standards for temporary event structures, the use of a bolt-connection system is often preferred for semi-permanent or very heavy loading scenarios due to the massive, multi-point surface contact at each joint (Source:https://www.plasa.org).

To ensure a complete venue solution, this trussing is fully compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, creating a professional and secure foundation that matches the high quality of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: Why choose bolt truss over spigot truss for a 12x12m span?A: Bolt trussing is widely respected for its immense rigidity and is often the preferred choice for heavy-duty rigs where a massive, fixed connection is required to support multi-ton loads.

Q: Can this 8-meter structure support a heavy LED screen?A: Yes. The 6061-T8 aluminum box truss is specifically engineered for high-capacity rigging. For your specific screen weight, please contact our engineers for a verified load calculation.

Q: Is the PVC canopy waterproof and fire-safe?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.

Q: How do we raise the 12x12m grid?A: The system includes a professional tower lift system. For a grid of this scale, we recommend using synchronized electric chain hoists for a safe, level, and efficient lift.

5. Strong Call to Action (CTA)

Ensure your next production is built on a foundation of elite engineering and industrial safety. Contact DragonStage’s engineering team today for a custom quote on the 12x12x8m Professional Bolt Truss System. Download our technical specifications and start planning your most successful event season yet.
