10x10x6m Professional Aluminum Two-Pitched Roof Bolt Truss System

5 0 Reviews

Elevate your production with this 10m x 10m aluminum two-pitched roof bolt truss system. Standing 6m high, it features a reinforced ground support design and dual 2m wide speaker wings. Engineered for professional outdoor festivals and concerts requiring maximum structural stability and superior weather drainage.

Price: ￥ 68995


Availability:



Inquire

Brand:
Dragonstage

Product Description

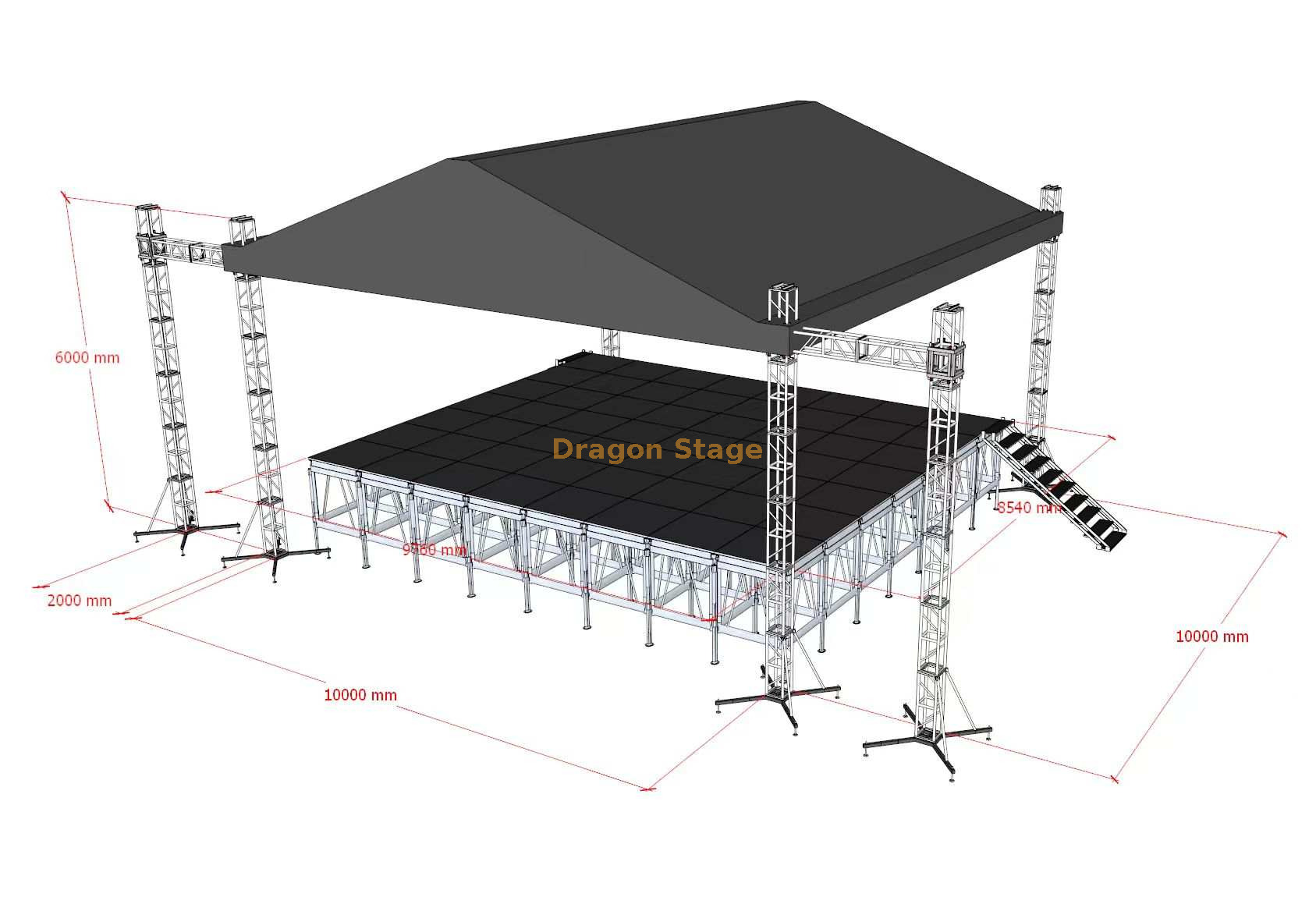

This Professional 10m x 10m Two-Pitched Roof Bolt Truss System is a high-performance structural solution designed for elite event environments where both aesthetics and load-bearing capacity are critical. Standing at a 6-meter vertical clearance, this system provides a comprehensive 100-square-meter performance area with integrated audio-visual capabilities.

Professional Aluminum Two-Pitched Roof Bolt Truss System

packing weight:1940kg

packing volume:17cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	BS400×400	6pcs
		2.00 m	50×3.0	BS400×400	0pcs
		1.00 m	50×3.0	BS400×400	2pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	BS400×400	6pcs
		2.00 m	50×3.0	BS400×400	0pcs
		1.00 m	50×3.0	BS400×400	2pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	4pcs
		1.00 m	50×3.0	BS300×300	0pcs
beam cube	cube 400x400				0pcs
Frame Tower	Bolt Truss Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.00 m	50×3.0	BS300×300	2pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	BS300×300	3pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	1pcs
5.20 m Oblique Beam	4 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	0pcs
		2.20 m	50×3.0	BS300×300	4pcs
5.20 m Ladder truss	8 sets	3.00 m	50×3.0	BL30,300*50	8pcs
		2.00 m	50×3.0	BL30,300*50	0pcs
		2.20 m	50×3.0	BL30,300*50	8pcs
Roof Components		roof conner 4 ways, use for roof beam truss		BS300×300	2pcs
		roof conner 5 ways, use for roof beam truss		BS300×300	0pcs
		Connect plate with clamp			2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		177.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	BS400×400	0pcs
		2.00 m	50×3.0	BS400×400	2pcs
		1.00 m	50×3.0	BS400×400	0pcs
5.00 m Wings Pillar	2 sets	3.00 m	50×3.0	BS300×300	2pcs
		2.00 m	50×3.0	BS300×300	2pcs
		1.00 m	50×3.0	BS300×300	0pcs
Wings Tower	Bolt Truss Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Screw Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
