14x14x10m Professional Outdoor Triangle Roof Truss System

5 0 Reviews

Professional 14m x 14m Aluminum Outdoor Triangle Roof Truss System - 10m High Heavy-Duty Stage Rig with Dual 3m PA Speaker Wings and Ground Support Structure

Price: ￥ 123700


Availability:



Inquire

Brand:
Dragonstage

Product Description

Premier 14m x 14m outdoor triangle roof truss system standing 10m high. Features a reinforced 4-pillar ground support design, dual 3m wide speaker wings, and a high-capacity pitched roof. Engineered for large-scale outdoor festivals, concerts, and major events requiring massive vertical clearance and superior weather protection.

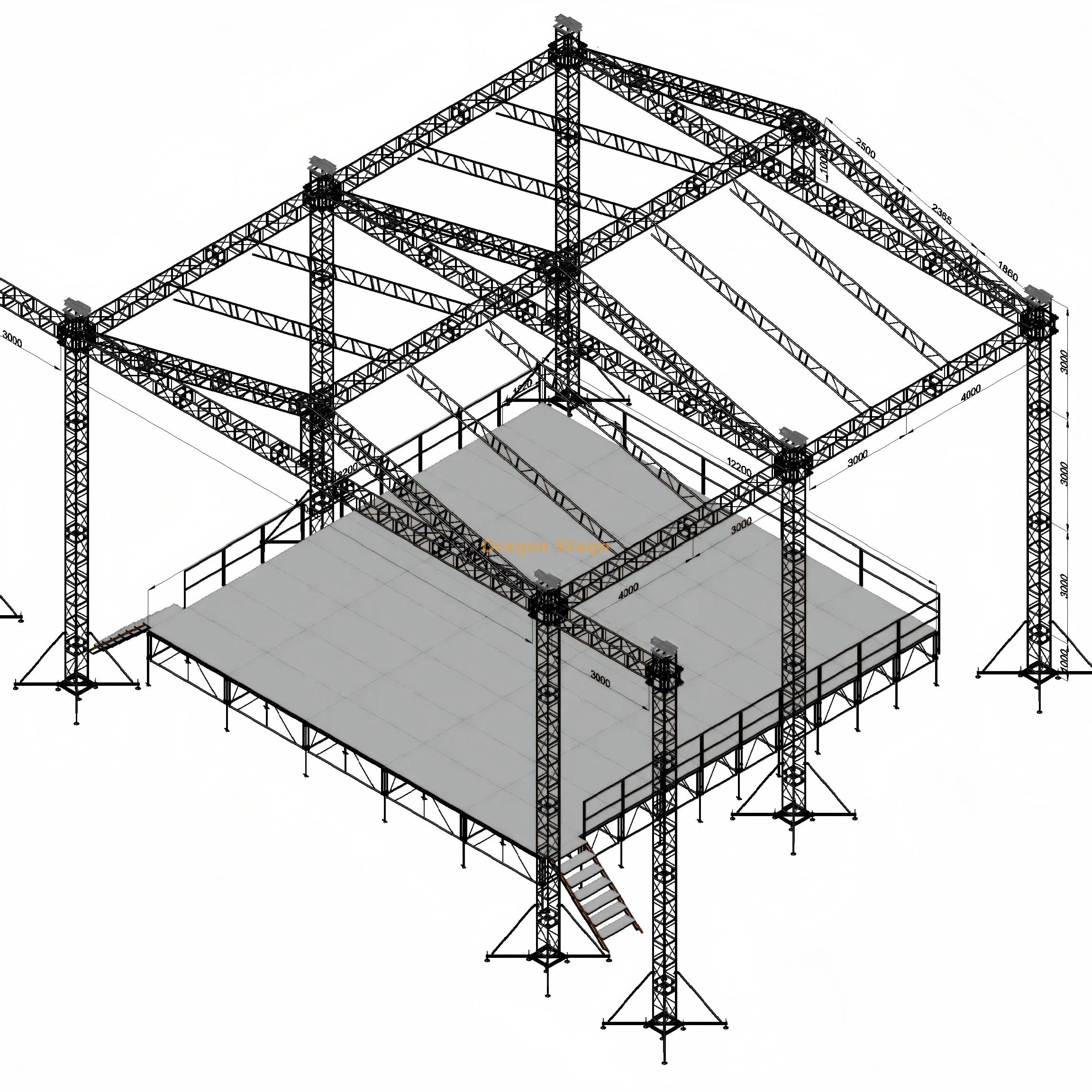

14x14x10m Professional Outdoor Triangle Roof Truss System

packing weight:3170kg

packing volume:28cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
14.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	3pcs
		1.00 m	50×3.0	CS389×389	0pcs
14.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	18pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.40 m	50×3.0	CS289×289	3pcs
14.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		2.20 m	50×3.0	CS289×289	6pcs
7.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	10pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		2.20 m	50×3.0	CL30,289*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			20pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		308.56	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
