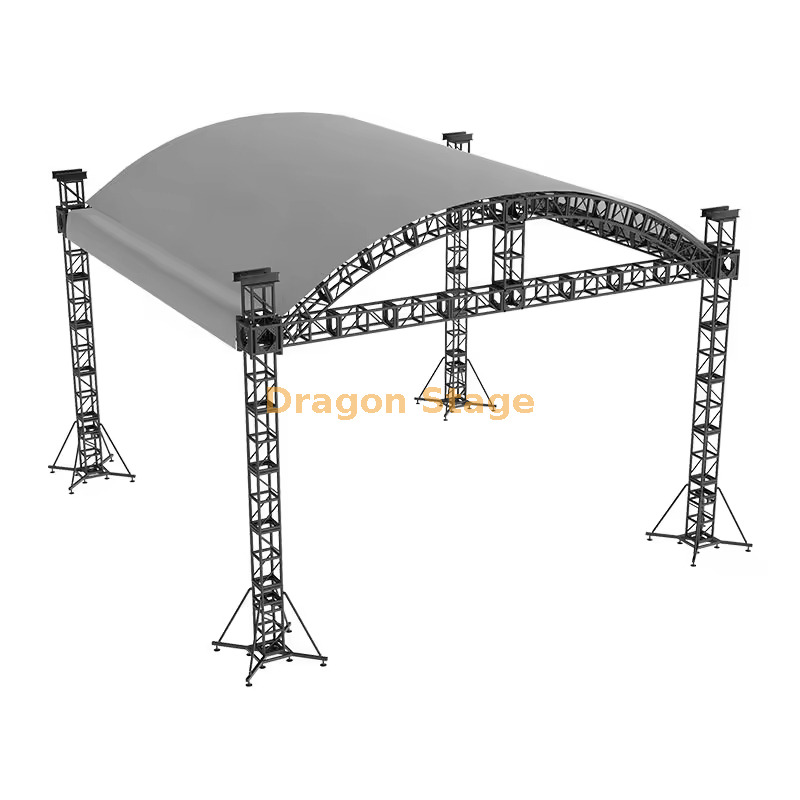

10x8x6m Professional Arched Aluminum Roof Truss System

5 0 Reviews

Professional 10m x 8m Arched Aluminum Stage Roof System - 6m High Heavy-Duty 4-Pillar Ground Support Curved Truss Structure for Outdoor Events

Price: ￥ 59125


Availability:



Inquire

Brand:
Dragonstage

Product Description

Elegant 10m x 8m arched aluminum stage roof system standing 6m high. Featuring a reinforced 4-pillar ground support design and a curved aesthetic, this professional truss structure is engineered for weddings, festivals, and corporate events requiring superior weather protection and high-end rigging.

10x8x6m Professional Arched Aluminum Roof Truss System

packing weight:1450kg

packing volume:12cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	2 pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.00 m	50×3.0	CS289×289	2 pcs
8.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	1 pcs
		1.00 m	50×3.0	CS289×289	pcs
12.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	pcs
		.00 m	50×3.0	CS289×289	pcs
12.00 m Ladder truss	3 sets	3.00 m	50×3.0	CL30,289*50	12 pcs
		2.00 m	50×3.0	CL30,289*50	pcs
		.00 m	50×3.0	CL30,289*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Connect plate with clamp			2 pcs
		Single clamp			48 pcs
		Double clamp			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		181.76	1 pcs
