8x5x6m Professional Aluminum Outdoor Roof Truss System

5 0 Reviews

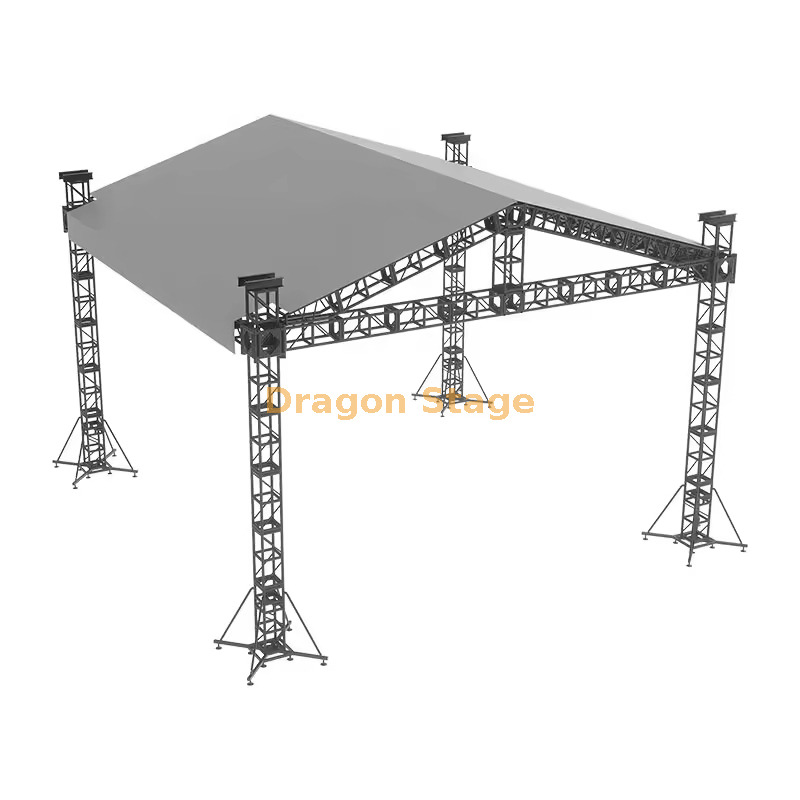

Professional 8m x 5m Aluminum Outdoor Event Roof Truss System - 6m High Heavy-Duty 4-Pillar Ground Support Stage Structure

Price: ￥ 45462


Availability:



Inquire

Brand:
Dragonstage

Product Description

Durable 8m x 5m aluminum outdoor event roof truss system standing 6m high. This professional 4-pillar ground support structure is perfectly sized for medium-sized stages, corporate events, and outdoor festivals requiring high-capacity lighting and audio rigging.

packing weight:1220kg

packing volume:9cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
8.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.80 m	50×3.0	CS289×289	2pcs
5.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	1pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	4pcs
4.20 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	4pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	4pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			8pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		92.56	1pcs
