Aluminium Event Concert & Festival Roof Truss Stage System 40x16x8m

5 0 Reviews

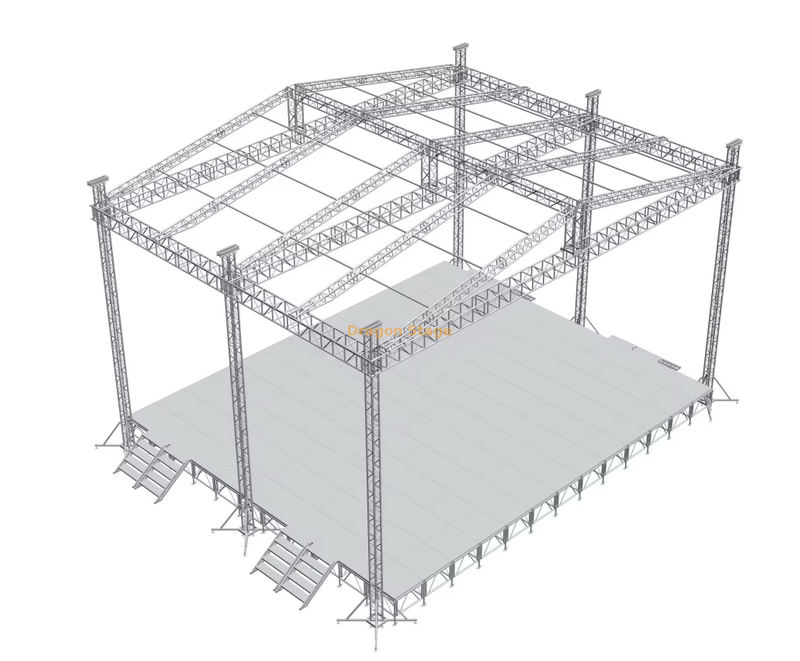

the total A frame roof truss sizes are 40m long, 16m wide and 8m high, we suggest having 6 pillars and main beam and pillar are 390mm or 400mm spigot truss.

the stage platform sizes are 39.04x14.64m, height 1.2-2m, with 2 stairs. each stage panel is 1.22x2.44m.

Price: ￥ 214536 - 252830


Features:	roof truss system staging system
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight: 5000kg

packing volume: 36cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
40.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	39pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	3pcs
16.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	10pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
7.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	6pcs
beam cube	Spigot cube 389x389				0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	4.00 m	50×3.0	CS289×289	3pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	5pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
20.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	36pcs
		2.00 m	50×3.0	CS289×289	0pcs
		2.20 m	50×3.0	CS289×289	6pcs
20.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL30,289*50	72pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		2.20 m	50×3.0	CL30,289*50	12pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		992.16	1pcs

packing weight:11100kg

packing volume: 73cbm

Item	Specification				Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden		192 pcs
	1.22m stage brace				204 pcs
	2.44m stage brace				208 pcs
	stand with extendable tube				221 pcs
	Stage adjustable base				221 pcs
Stage Stair	wooden topping	total	8	steps	2 pcs

the Aluminium Event Concert & Festival Roof Truss Stage System is a game-changer in the event production industry. Its use of aluminium, versatility, stability, and visual appeal make it an excellent choice for concerts and festivals. Event organizers can rely on this system to create unforgettable experiences while prioritizing safety and efficiency.

Professional 40x16x8m Aluminum Concert Roof Truss Stage System

1. Introduction

Executing large-scale festivals and global tours requires a structural foundation that balances immense scale with precision engineering. The DragonStage 40x16x8m Aluminum Event Roof Truss Stage System is a professional-grade solution designed to meet the demands of massive outdoor productions. Spanning 40 meters in length and reaching a height of 8 meters, this system provides a high-capacity performance environment for world-class artists and large technical crews. For event contractors, this large-scale festival stage system is not just equipment; it is a mission-critical asset that ensures structural safety while accommodating heavy lighting rigs, expansive LED walls, and complex audio line arrays.

2. Industry Challenges & Technical Solutions

The primary challenge in ultra-wide stage construction is maintaining structural rigidity over a 40-meter span without compromising safety or assembly speed. At this scale, wind loading and vertical deflection are significant engineering hurdles for temporary outdoor stage structures.

DragonStage solves these challenges through advanced material selection and structural design. By utilizing high-strength 6061-T6 aluminum alloy, we provide a frame that is significantly lighter than steel but capable of supporting massive distributed loads. The system features a multi-pillar support design (Sleeve Block and Tower system) to distribute weight evenly across the 16m depth. This modularity allows for a quick assembly concert stage despite its footprint, significantly reducing the labor hours typically required for a 40-meter build. Furthermore, our designs comply with global safety standards, ensuring that every bolt and weld meets the rigorous requirements of international touring (Source: https://www.dragontruss.com/TUV-Report-dc249965.html).

3. Key Features & Operational Benefits

The 40x16x8m festival stage is engineered as a high-performance workspace for technical directors and rigging teams.

High-Load Modular Truss Framework

The backbone of this system is its heavy-duty aluminum square truss. Designed for maximum versatility, the 40m span allows for clear sightlines and vast creative possibilities for lighting designers. The modular nature of the professional event stage decking ensures that while the system is massive, it remains transportable in standard shipping containers, lowering overall logistics costs. High-precision spigot or bolt connections guarantee a seamless fit, which is vital for maintaining structural integrity under dynamic performance loads (Source: https://www.dragontruss.com/Aluminum-Truss-pl3962133.html).

All-Weather Protection & Safety Integration

Outdoor festivals are at the mercy of the elements. This system includes a heavy-duty, flame-retardant PVC canopy that provides comprehensive weatherproof stage protection for performers and millions of dollars in technical gear. The 8-meter height is optimized for long-throw lighting and provides ample clearance for complex stage sets. To ensure safety, the system integrates specialized lifting components, including motor hoists and sleeve blocks, which are essential for the safe suspension of heavy equipment—a standard practice advocated by leading industry safety organizations (Source: https://www.plasa.org).

4. Practical FAQ for Stage Professionals

Question	Answer
Q: What is the maximum load capacity for the 40m span?	The load capacity is calculated based on the specific truss profile used. Detailed load tables are provided with our TUV certification reports.
Q: Can this system be adjusted for smaller events?	Yes. The modular 6061-T6 aluminum truss components allow for the system to be reconfigured into smaller dimensions if the full 40m span is not required.
Q: How does the system handle high wind speeds?	The system includes specialized outriggers, steel bases, and ballast requirements designed to meet local wind load regulations for outdoor structures.
Q: What type of stage decking is included?	We typically provide anti-slip, waterproof wooden topping decks with aluminum frames, ensuring a stable and professional performance surface.

5. Strong Call to Action (CTA)

Ensure your next world-class festival is built on a foundation of safety and engineering excellence. Trust the manufacturer that delivers durability and technical support at scale.

Contact DragonStage’s engineering team for your custom truss solution and download the full technical specifications for your next project.
