packing weight: 3750kg
packing volume: 37cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 12pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 6pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 2pcs |
| 7.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 6pcs |
| beam cube | 6 faces | CS520×760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 6pcs |
| Steel Base L | 6pcs |
| Top Section L | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.20 m | 50×3.0 | CS289×289 | 3pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 6.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.20 m | 50×3.0 | CS289×289 | 6pcs |
| 6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 12pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 208.96 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 6.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 4pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| Wings Tower | Spigot Sleeve Block L | 2pcs |
| Steel Base L | 2pcs |
| Top Section L | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

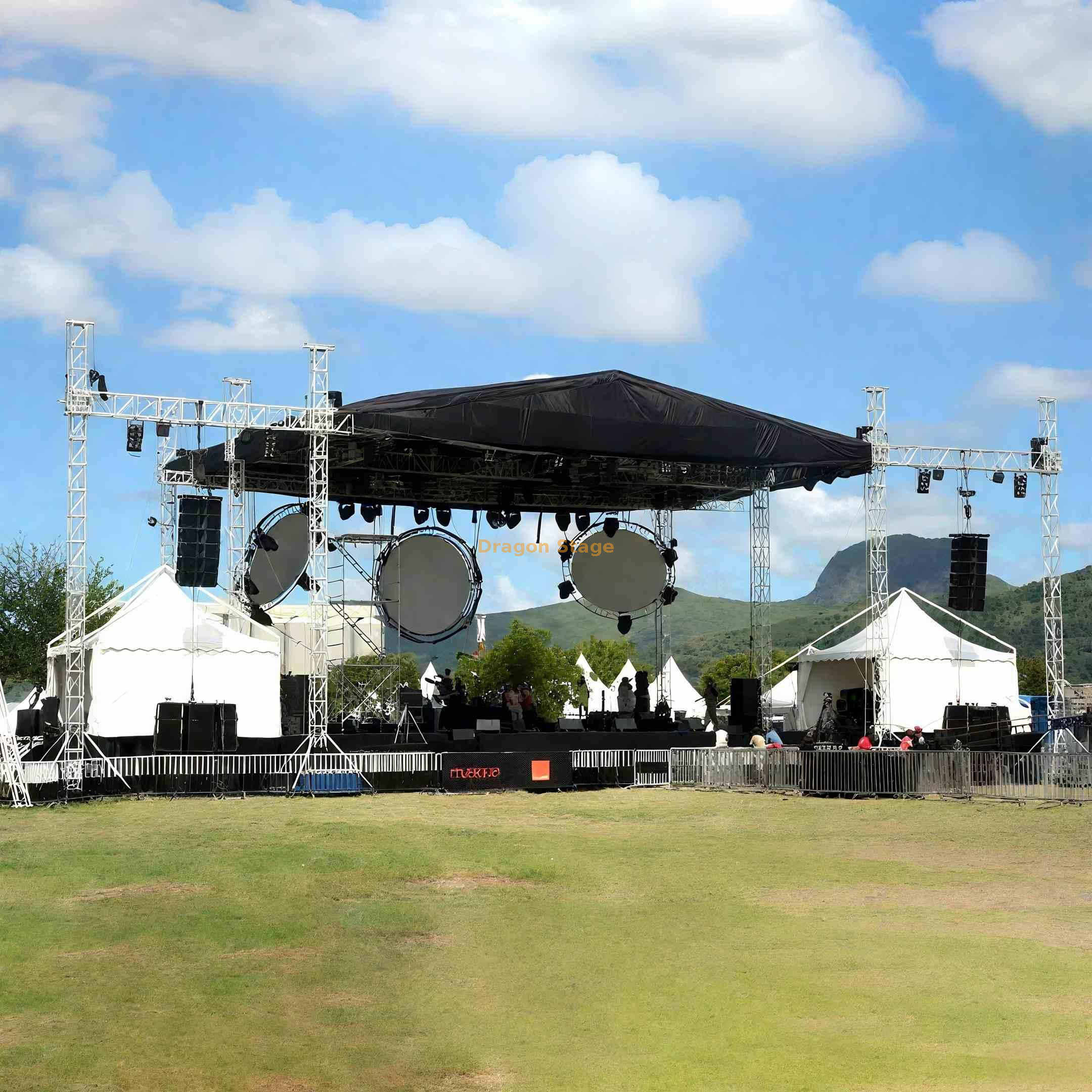

Heavy Duty Speaker Roof Truss Stage: 6m Wide Wings (12m x 10m x 8m)
Introduction: Maximizing Sound and Visual Coverage
The Dragon Stage Heavy Duty 6m Wide Speaker Roof Truss Stage delivers massive coverage for large audiences. With a main footprint of 12m long x 10m wide and an impressive height of 8m, this system stands out due to its substantial 6m Wide Speaker Roof Truss Wings integrated on each side. This provides a total effective width of up to 22 meters for unparalleled rigging flexibility and spectator sound coverage.
Engineered for Power: The 6m Wide Speaker Wing Advantage
Addressing Load Challenges in Large Cantilever Spans
Integrating large cantilevered structures like a 6m wide speaker wing onto a main stage frame requires superior engineering to handle the concentrated point loads of line array sound systems.
This outdoor concert stage 12x10m with 6m PA wings solves this with:
Heavy Duty Main Structure: The entire system relies on heavy-duty CS520x760 square truss for main beams and robust CS389x389 for the six primary pillars. This ensures the structural integrity needed to support both the roof load and the substantial side-loads exerted by the cantilevered speaker wings.
Superior Stability: Featuring 24 Long Outriggers and 6 sets of high-capacity tower components, the base structure provides exceptional lateral stability, which is vital when dealing with high-reaching sound hangs and wind exposure on an 8 meter high flat roof stage truss.
High-Capacity Lifting: Each of the 6 main pillars includes a 2 Ton Manual Hoist (BA05) and associated rigging (Hinge Section, Sleeve Block, Steel Base), guaranteeing secure and controlled roof erection for this high load speaker roof truss system 12 meter span.
Key Features & Structural Benefits for Production Managers
Complete Ground Support System
The structure utilizes a comprehensive ground support system. This allows the roof grid to be safely assembled and the audio/lighting equipment to be pre-rigged at ground level before the entire 12m x 10m roof section is raised to its operational 8m height.
Wide-Ranging Coverage
The included PVC roof canopy covers 208.96 sq m, providing extensive weather protection over the stage deck and the essential areas for technical production.
Modular and Adaptable
As a fully modular aluminum roof truss stage for festivals, the system is designed for quick deployment and striking. The use of robust spigot connections (with Conical Couplers, Pins, and Clips) on the truss components ensures a fast, reliable, and repetitive assembly process, essential for outdoor stage rental system companies.
Practical FAQ for Stage Professionals
Q: What is the benefit of the 6m wide speaker wings?
A: The 6m wide speaker roof truss wings allow line arrays to be flown significantly wider than the main stage, improving the stereo imaging and throw distance of the sound system for massive audiences, a key feature of this heavy-duty aluminum stage structure.
Q: Does the structure include a dance floor or stage decks?
A: This product listing focuses on the truss roof structure, tower components, PA wing truss, and PVC canopy. Stage decks, flooring, and barricades are typically separate purchases to allow customization of the stage deck height and material.
Q: How many personnel are typically required for assembly?
A: Given the 8m height, the heavy-duty nature of the CS520x760 truss, and the use of six lifting points, a crew of at least 6-8 experienced stage technicians is recommended for efficient and safe assembly.
Q: What is the wind resistance rating?
A: While specific wind ratings should be confirmed with the engineering load tables, a heavy-duty system of this size, with 24 long outriggers, is designed for high wind load scenarios common to large outdoor festival sound stage systems. Always secure the structure with the appropriate ballasting or ground anchors as per the load plan.
