packing weight: 2750kg
packing volume: 13cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 14.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 11.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
1. Dragon stage brand, Load:1000kg,
2. Chain length:25m,
3. lifting speed:4m/min,
4. 380V-3phrase-50HZ
5. Double brake
6. G100 load chain, meeting 8:1/10:1 safety factor.
7. With 0.5M 4Pin-16A Europe plug
8. waterproof: IP54 | 4pcs |
| 1control 8pcs, with Handle case | 1pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.40 m | 50×3.0 | CS289×289 | 2pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 7.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 241.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 11.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
1. Dragon stage brand, Load:1000kg,
2. Chain length:25m,
3. lifting speed:4m/min,
4. 380V-3phrase-50HZ
5. Double brake
6. G100 load chain, meeting 8:1/10:1 safety factor.
7. With 0.5M 4Pin-16A Europe plug
8. waterproof: IP54 | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 2200kg
packing volume: 15cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 35 pcs |
| 1.22m stage brace | 42 pcs |
| 2.44m stage brace | 40 pcs |
| stand with extendable tube | 48 pcs |
| Stage adjustable base | 48 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

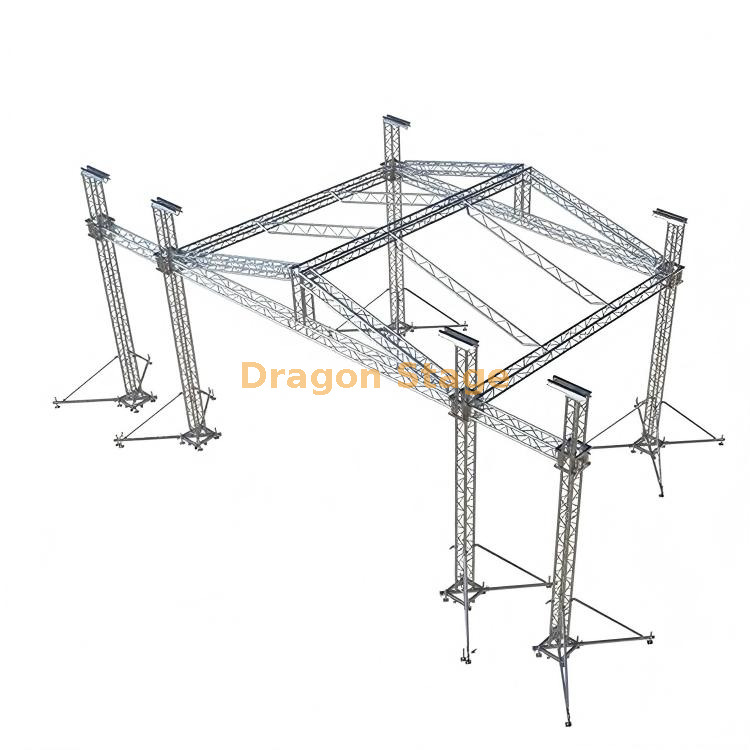

Heavy-Duty Aluminum Concert Roof Truss System (14x10x12m) with Speaker Wings
1. Introduction
In the world of professional event production, the demand for vertical scale and acoustic precision has never been higher. The DragonStage 14x10x12m Aluminum Outdoor Concert Roof Truss is engineered to provide the massive clearance and structural integrity required for modern festivals and large-scale tours. Standing at a commanding 12 meters in height, this system offers the necessary "trim height" for complex lighting designs and optimal sound projection. Designed for event organizers and technical contractors, this system facilitates a professional performance environment that balances grand aesthetics with rigorous safety engineering.
2. Challenges & Solutions in Large-Scale Rigging
Modern outdoor events face significant structural challenges, particularly regarding height and weight distribution. As systems reach 12 meters, wind loading becomes a critical safety factor. Furthermore, hanging heavy line array speakers on the periphery of a structure can create unbalanced torque if not correctly engineered.
DragonStage addresses these challenges through a specialized tower and roof truss system that utilizes reinforced aluminum alloys and precision-welded sleeve blocks. By integrating dedicated speaker wings into the primary 14m frame, the load is distributed across a wider footprint, enhancing overall stability. For high-wind environments, our structures include long outriggers and heavy-duty steel bases that provide the necessary ballast points to secure the rig against the elements, ensuring a safe environment for both performers and the audience.
3. Key Features & Benefits
The 14x10x12m concert roof truss is an investment in durability and technical versatility, designed for professionals who refuse to compromise on quality.
Premium 6061-T6 Aluminum Construction
The entire structure is fabricated from high-grade 6061-T6 aluminum alloy. This material is chosen for its exceptional strength-to-weight ratio, which allows for massive spans while keeping transportation costs and labor requirements manageable. The aluminum naturally provides superior corrosion resistance, making it ideal for multi-day outdoor festivals in various climates (Source:https://www.dragontruss.com/Lighting-Truss-pl3552133.html).
Integrated Line Array Speaker Wings
One of the standout features of this 14m-wide system is the inclusion of dedicated speaker wings. These wings allow for the safe suspension of professional audio line arrays outside the main stage area, clearing sightlines for the audience and improving acoustic coverage. The structure's ability to handle these heavy point loads is verified through our rigorous testing protocols and TUV certification (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).
Efficient Modular Rigging
Despite its 12m height, the system is designed for efficient assembly. Utilizing high-strength sleeve blocks and a reliable tower system, the roof can be rigged at ground level and safely lifted into position. This "ground-support" approach follows industry best practices for rigging safety, minimizing the time technicians spend working at height (Source:https://www.plasa.org). The modular components also ensure that the trussing can be reconfigured for smaller 10x8m or 12x10m events, maximizing your inventory's return on investment.
4. FAQ Section
Q: What is the maximum load capacity for the speaker wings?A: The wings are specifically engineered to support standard line array configurations; however, specific weight limits depend on the total distributed load of the main roof. Please refer to the provided load tables.
Q: Can this 12m high structure be used in high-wind coastal areas?A: Yes. When used with our heavy-duty steel bases, outriggers, and appropriate ballast, the system is designed to meet standard outdoor wind load requirements.
Q: Does the system include the PVC roof canopy?A: Yes, we provide a high-quality, flame-retardant, and waterproof PVC canopy that is custom-fitted to the 14x10m dimensions to prevent water pooling.
Q: Is this truss compatible with other major brands?A: Our truss uses standardized spigot or bolt connections. Please contact our engineering team to verify exact compatibility with your existing inventory.
