packing weight：4000kg
packing volume: 50cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 16.00 m Beam(front) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 10pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 2pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 8pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 9.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 18pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS520×760 | FALSE |
| Frame Tower | Spigot Sleeve Block L | 6pcs |
| Steel Base L | 6pcs |
| Top Section L | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.60 m | 50×3.0 | CS289×289 | 2pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 8.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 6pcs |
| 8.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 312.16 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 0pcs |
| 2.00 m | 50×4.0 | CS520×760 | 2pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 9.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| Wings Tower | Spigot Sleeve Block L | 2pcs |
| Steel Base L | 2pcs |
| Top Section L | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

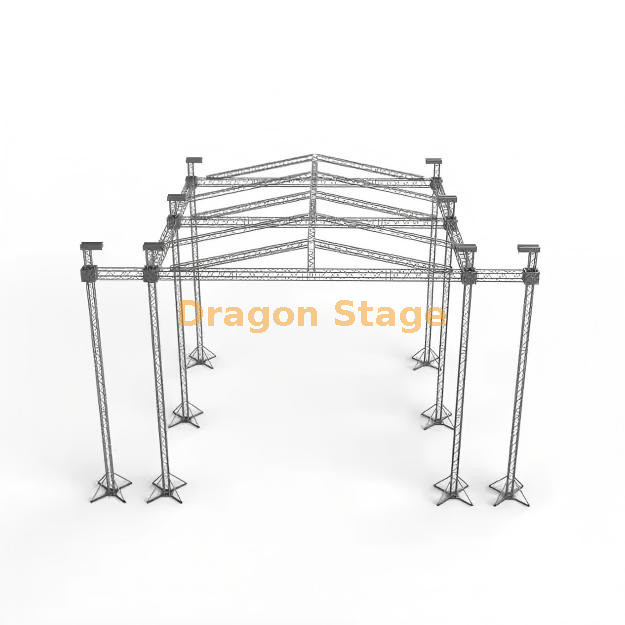

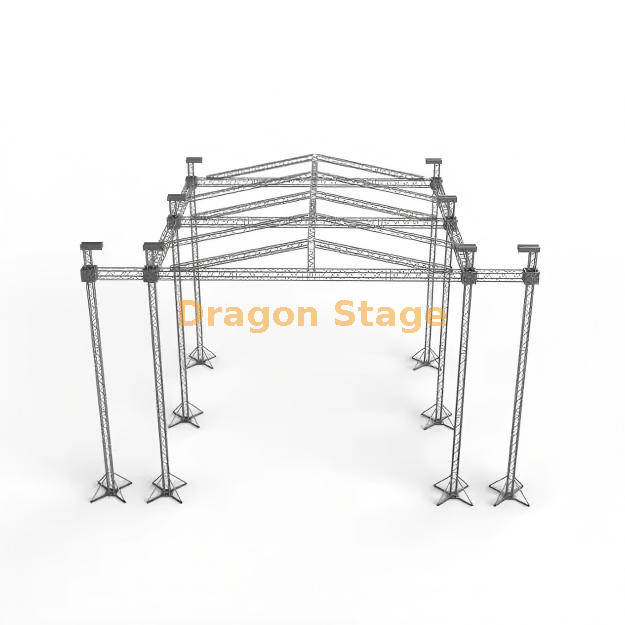

Event Sound Stage System With Roof Truss: High-Reach Aluminum Structure (16m x 12m x 10m)
Introduction: The Apex of Large-Scale Production
The Dragon Stage Event Sound Stage System With Roof Truss is designed for the largest professional productions, providing both a substantial visual presence and unmatched structural capacity. With imposing dimensions of 16m long, 12m wide, and 10m high, this system is engineered as a complete solution, including critical 2m wide sound truss wings integrated into the main framework. This heavy duty outdoor stage roof 16m span 10m height is essential for main stages at major music festivals, corporate roadshows, and large outdoor concerts.
Challenges & Solutions for High-Capacity Outdoor Rigging
Securing Stability and Integrated Sound Support
The sheer height (10m) and span (16m) of this structure demand specialized engineering to manage dynamic wind loads and heavy point loads from modern sound and lighting equipment.
This professional concert stage system with PA wings provides the critical solutions:
Extreme Load Management: The structure relies on massive CS520x760 square truss for the main roof beams (50mm x 4.0mm main tube), providing a certified high load rating essential for safely hanging heavy video walls and full line array systems across the 16m span.
Integrated Sound Truss: Crucially, this system features dedicated, high-strength 2m wide sound truss wings that are structurally reinforced to handle large PA stacks (Line Array Systems) while keeping the sound engineer's load separate from the main lighting grid.
Safety and Assembly: The included 4 sets of 2 Ton Manual Hoists and a full array of tower accessories (Steel Bases, Sleeve Blocks, 16 Long Outriggers) ensure controlled, ground-supported setup and maximal stability against uplift forces, minimizing setup time for a structure of this complexity.
Key Features & Structural Benefits for Production Managers
High-Spec Aluminum & Tower System
Constructed from robust, high-grade aluminum truss 520x760 and 389x389 components, this structure guarantees longevity and high performance. The complete ground support tower system allows the entire roof grid to be assembled safely at ground level before being raised to its final 10m height using the lifting gear.
Comprehensive Coverage
The system includes a large PVC roof canopy with an area of 312.16 sq m, offering full overhead protection against the elements. This is an all-in-one pitch roof truss system 16x12m ready to deploy for any weather-dependent event.
Modular and Adaptable
As a modular truss roof system, all components—from the main roof to the dedicated PA wing tower truss integrated system—use standardized connections, allowing for future expansion, re-configuration, or integration with complementary stage accessories like crowd barriers.
Practical FAQ for Stage Professionals
Q: Why is the truss height 10m?
A: The 10m height provides exceptional clearance, essential for major events to allow for large stage backdrops, video screens, and tiered lighting rigs, offering clear sight lines for the audience and crew access below.
Q: Are the truss dimensions customizable?
A: This product is sold as a standard 16m x 12m x 10m configuration, which optimizes load-bearing performance for the specified truss series. Custom dimensions are possible but require new engineering calculations.
Q: How do the long outriggers enhance safety?
A: The 16 long outriggers significantly increase the base footprint and resistance moment of the main pillars. This is critical for 10m high pillars in outdoor settings, as it maximizes resistance against overturning forces caused by heavy side loads (like hanging banners) or sudden wind gusts.
Q: Does the system include stage decks?

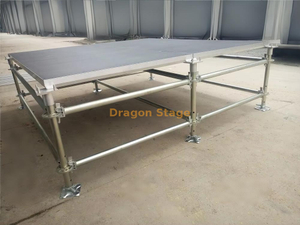

A: The price generally covers the roof truss structure, tower components, PA wing truss, and PVC canopy. The stage decking (the floor of the performance area) is usually a separate item, such as a quick-assemble portable steel stage.
