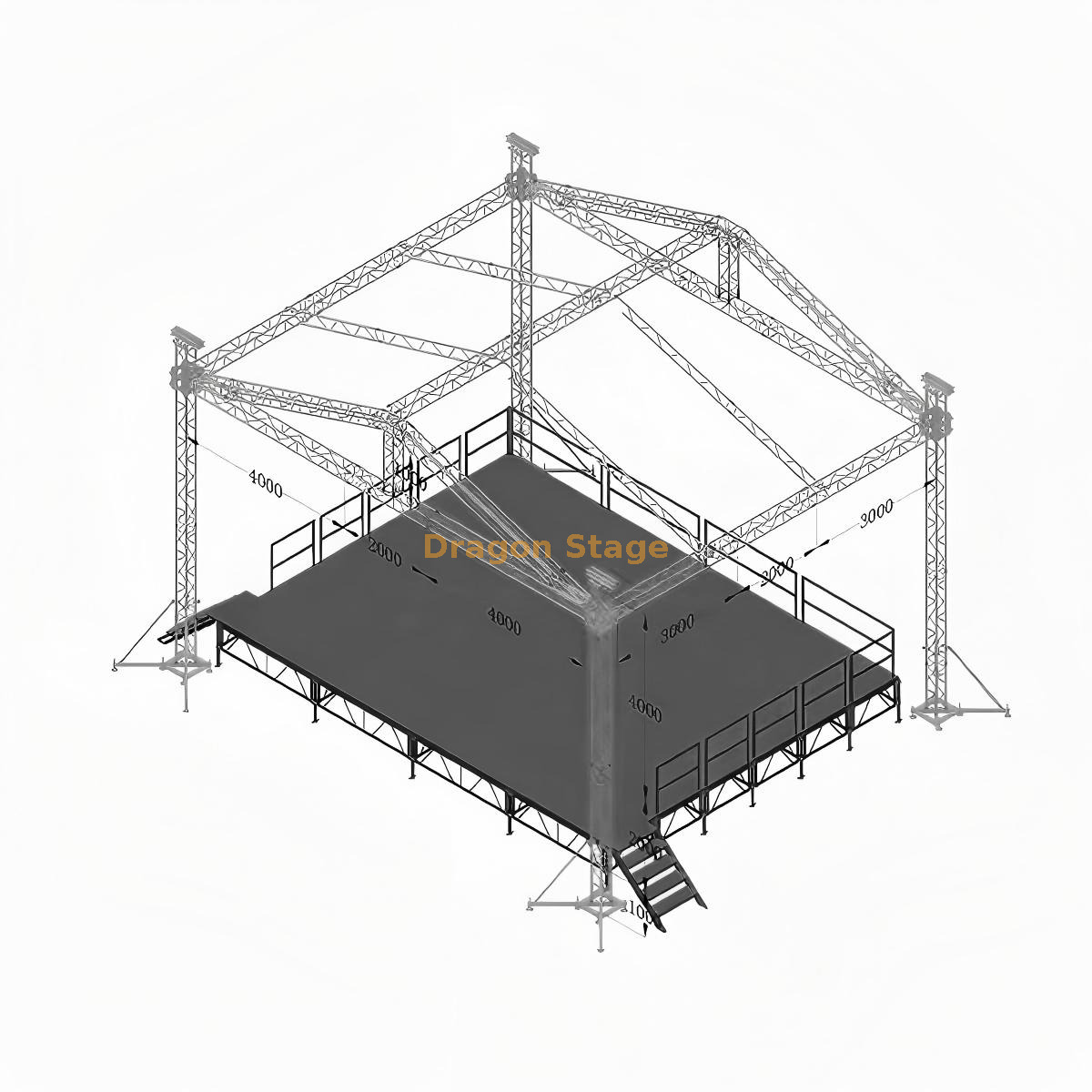

Elevate your production with this 10m x 8m aluminum triangle roof truss system. Standing 7m high, this professional stage rig features a reinforced 4-pillar ground support system and a pitched roof design for optimal load distribution and weather runoff. Ideal for outdoor concerts, festivals, and large-scale corporate events.
packing weight:1450kg
packing volume:11cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 5.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 151.76 | 1pcs |
