Best Concert Stage Designs with Roof Truss System 20x15x12m

5 0 Reviews

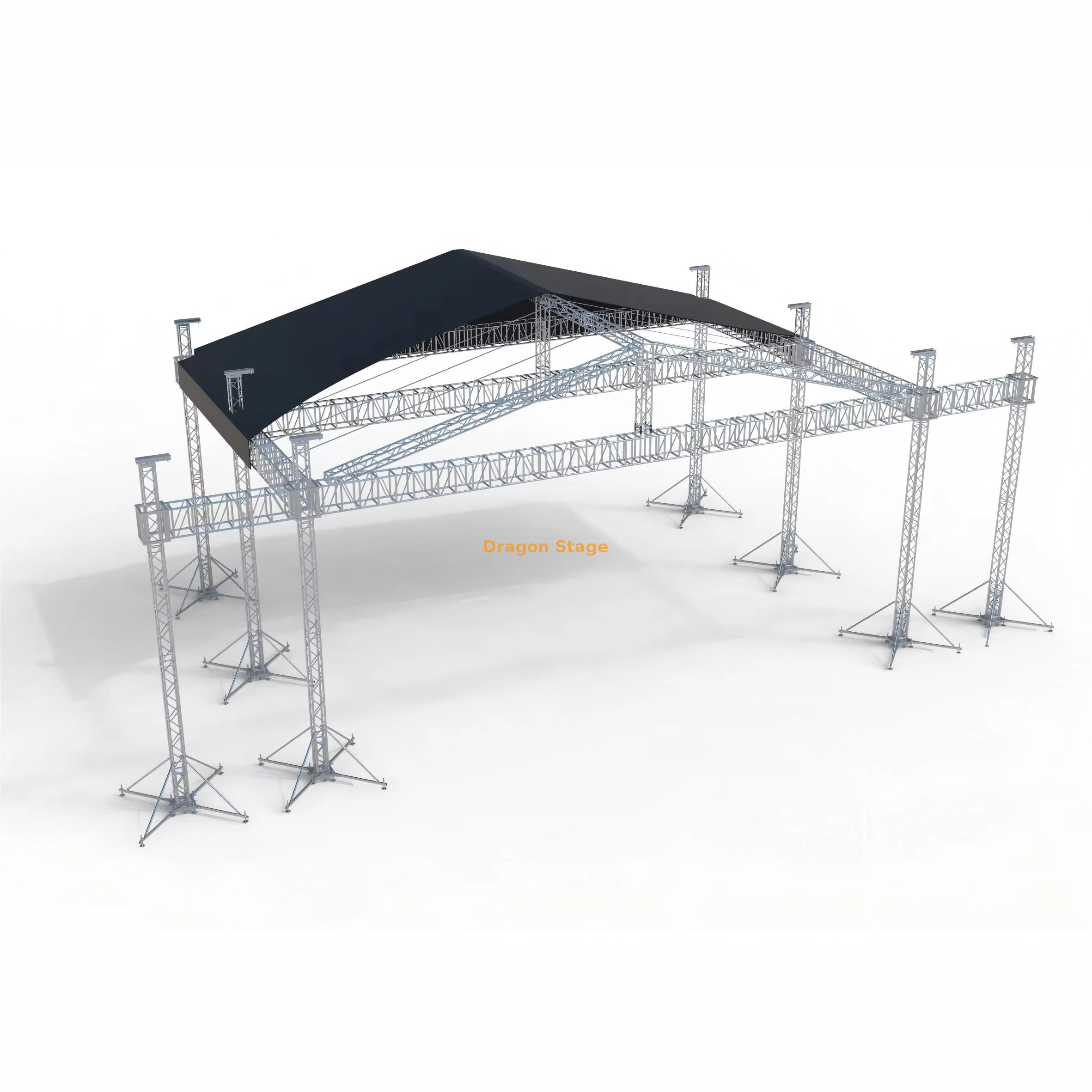

20m long 15m wide and 12m high with 3m wide speaker truss Concert stage designs with roof truss systems are essential for creating a safe and visually appealing performance space. The use of roof truss systems allows for the suspension of lighting, sound equipment, and even special effects, providing a dynamic and immersive experience for both performers and audience members.

layher stage 20m long 15m wide and 2-2.5m high with 2 stairs

Price: ￥ 163964 - 208637


Features:	concert stage truss system layher stage
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight:4100kg

packing volume:25cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	4 sets	3.00 m	50×3.0	CS389×389	24pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
15.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	10pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
11.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	18pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	Spigot cube 389x389				2pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	4 sets	2.00 m	50×3.0	CS289×289	4pcs
15.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	5pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
10.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	18pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	6pcs
10.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL30,289*50	36pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	12pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	2pcs
		Connect plate with clamp			4pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		457.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
11.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

Best Concert Stage Designs with Roof Truss System

packing weight:11200kg

packing volume:35cbm

Item	Specification				Quantity
Steel Layer assembly stage	Aluminium Topping: 3.3x6.6ft (1x2m)		18mm Anti slip plywood		160 pcs
	Rubber corner with cut Aluminium frame				pcs
	Standard,LR1, L:2000mm				99 pcs
	Standard(base)-265mm				99 pcs
	Ledger, LR2,L:2000mm				268 pcs
	Ledger, LR2,L:1000mm				pcs
	Brace, LR3,L:1500x2000mm				178 pcs
	Aluminium Beam clamp, 2m				88 pcs
	Aluminium Beam clamp, 1m				pcs
	Stage adjustable base				99 pcs
Aluminium Stage Stair（2m width)	18mm Anti slip plywood	total	8	steps	2 pcs
