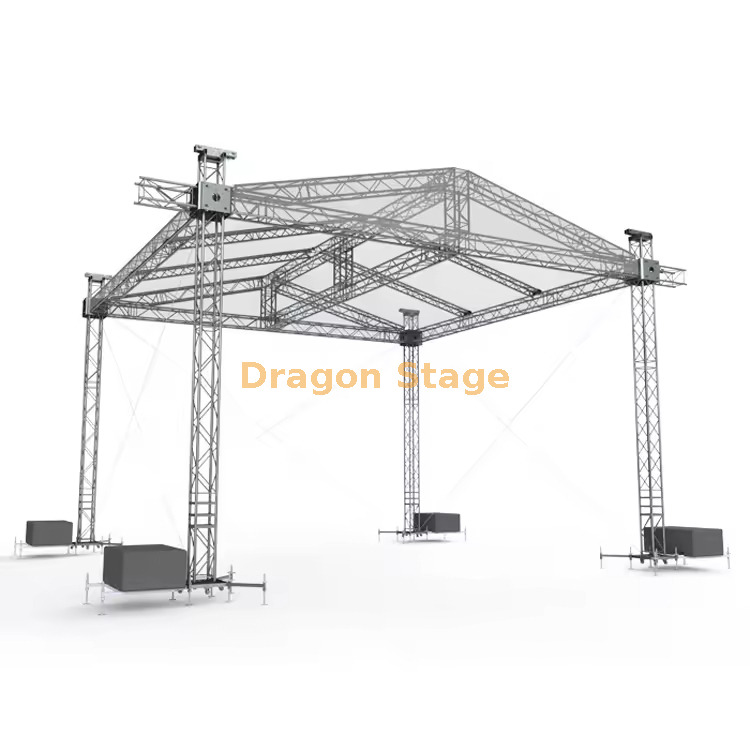

Heavy-Duty 10x9x7m Aluminum Stage Roof Truss System with 2m Speaker Array Wings

5 0 Reviews

Professional 10m x 9m x 7m Aluminum Alloy Stage Roof Truss featuring dual 2m speaker wings. This modular, spigot-connected system offers high load capacity for large-scale outdoor concerts, festivals, and events. Engineered for safety and quick assembly with durable 6061 aluminum.

Price: ￥ 59952


Availability:



Inquire

Brand:
Dragonstage

Product Description

Elevate your outdoor performance with this professional Aluminum Alloy Stage Roof Truss System. Specifically designed for large-scale production, this system measures 10m in length, 9m in depth, and 7m in height, providing a vast, secure space for any performance.

Heavy-Duty 10x9x7m Aluminum Stage Roof Truss System with 2m Speaker Array Wings

packing weight:1550kg

packing volume:12cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	2pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.00 m	50×3.0	CS289×289	2pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		2.20 m	50×3.0	CS289×289	4pcs
5.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		2.20 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		164.56	1pcs
