packing weight:970kg
packing volume:8cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |

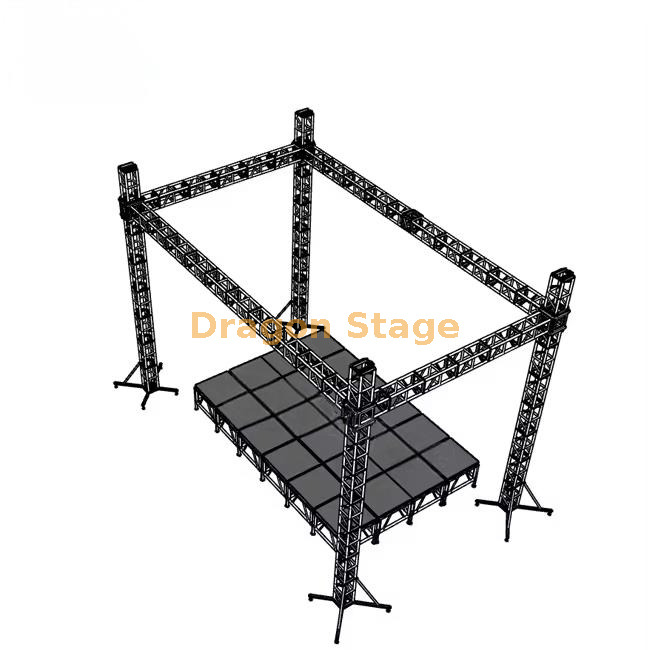

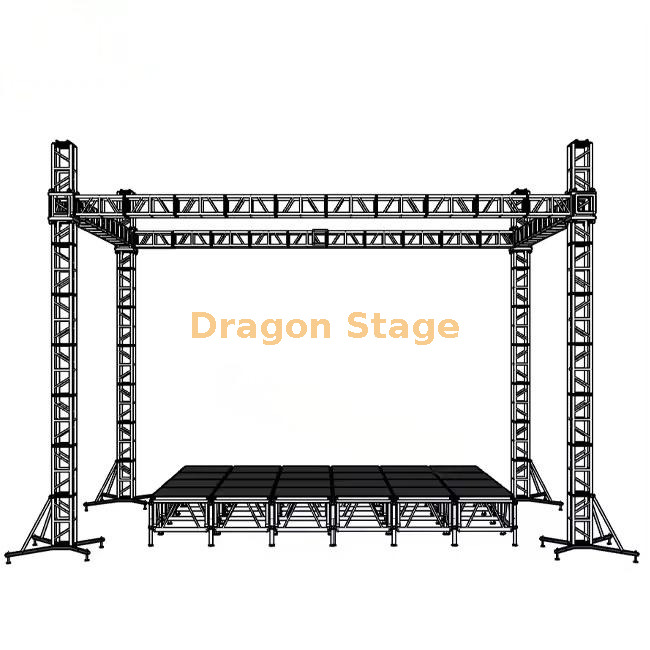

Professional 10m x 6m x 8m Aluminum Roof Truss & Mobile Stage System
Designed for high-impact outdoor performances, this complete aluminum alloy stage system offers a spacious 10m x 6m performance area with a soaring 8m high roof structure. Engineered from premium 6061-T6 aluminum, the trussing provides an exceptional strength-to-weight ratio, ensuring maximum safety for heavy lighting plots and audio arrays.
Key Features:
Dimensions: Generous 10m length, 6m depth, and 8m total height for superior sightlines and professional production capabilities.
Modular Design: Fast and secure assembly using high-precision conical or bolt couplers, allowing for rapid setup and teardown at any venue.
Durable Construction: Non-rust, corrosion-resistant aluminum frame designed to withstand various environmental conditions.
Integrated Platform: Includes a reinforced, anti-slip stage platform with adjustable legs to ensure a level performing surface on uneven ground.
Versatility: Ideal for concerts, festivals, trade shows, and corporate events requiring professional-grade overhead rigging for lights and speakers.
