2x4x8m Ringlock Line Array Hanging Tower System with Auxiliary Ballast Tower

packing weight：680kg

packing volume：2cbm

Product Information

Product Description

The DragonStage Ringlock Line Array Hanging Tower System is designed for temporary concerts, outdoor events, festivals, and live sound applications that need a compact but practical line array hanging structure.

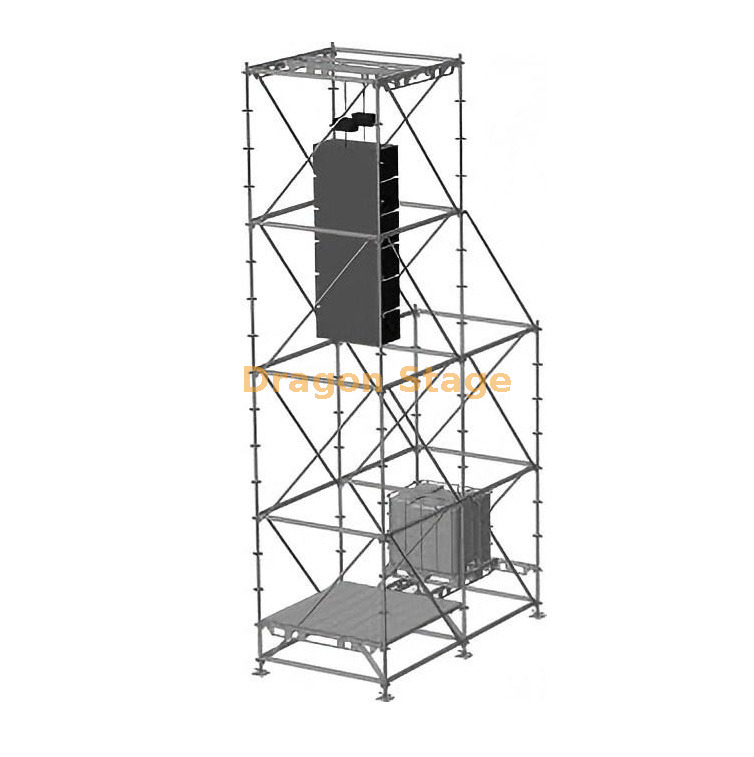

This system is built from two connected ringlock towers:

• Main tower: 8m high

• Auxiliary tower: 4m high

The overall footprint is approximately 2m wide and 4m deep.

At the top of the main tower, a steel horizontal beam is used as the hanging member for the line array speaker system. At the lower part of the main tower, there is a working platform, which is useful during installation, access, and operation. The lower part of the second tower is used as a ballast support area, helping the system work as a temporary event structure.

This product is suitable for customers who need a ringlock-based speaker suspension tower rather than a conventional pure aluminum truss tower.

For related systems, you can also view our Ringlock Structure System and Engineering Solution pages.

Main Features

• Two connected ringlock towers

• 8m main tower for line array hanging

• 4m auxiliary tower for support and ballast arrangement

• Steel top beam for speaker suspension

• Working platform at the bottom of the main tower

• Ballast position at the lower part of the second tower

• Suitable for temporary concert and event sound support

• Can be customized according to project requirements

Typical Applications

• Concert line array hanging

• Festival speaker support

• Outdoor event sound systems

• Temporary live performance audio support

• Church and worship event sound support

• Rental sound-system structures

Important Note

This page describes the current product configuration based on the provided layout:

• 2m wide

• 4m deep

• 8m main tower

• 4m auxiliary tower

• steel top beam

• working platform

• ballast area

Actual speaker weight, ballast requirement, wind condition, and site suitability should be confirmed according to the real project. This page does not automatically confirm engineering approval or project-specific loading limits.

FAQ

What is the size of this line array hanging tower system?
The footprint is approximately 2m wide × 4m deep. The main tower is 8m high, and the auxiliary tower is 4m high.

What is the structure made from?
The main structure uses a ringlock system, and the top hanging member is a steel beam.

What is the main function of this product?
It is mainly used for hanging a line array speaker system for concerts and events.

What is the platform at the bottom used for?
The platform at the bottom of the main tower is used as a working platform for installation and access.

What is the second tower used for?
The second tower serves as an auxiliary support tower and provides space for ballast placement.

Can this product be customized?
Yes. The size, tower height, platform arrangement, and hanging details can be adjusted based on project needs.

Is this suitable for outdoor use?
It can be used for temporary outdoor events, but the final suitability depends on the actual project conditions and structural requirements.

What information is needed for quotation?
Please send the speaker model, total hanging weight, event location, indoor or outdoor use, required tower height, and any reference drawing or site photo.

Why Choose DragonStage

• Practical experience with event support structures

• Factory-based supply for stage, truss, and ringlock products

• Support for customized temporary event structures

• Familiar with concert and line array application needs

• Easy communication for quotation and production

Inquiry Suggestion

For a fast quotation, please send:

• speaker brand and model

• total hanging weight

• indoor or outdoor use

• required height

• event location

• ballast preference

• reference drawing or site photo
