Screen Tower 10x6x10m Modular Ringlock LED Screen Support Tower for Concerts

The DragonStage SCREEN-TOWER-10x6x10m is a modular temporary structure developed for supporting large LED screens in concert, festival, and live-event environments.

The confirmed overall structure dimensions are:

• Width: 10m

• Depth: 6m

• Front height: 10m

• Middle height: 4m

• Rear height: 2m

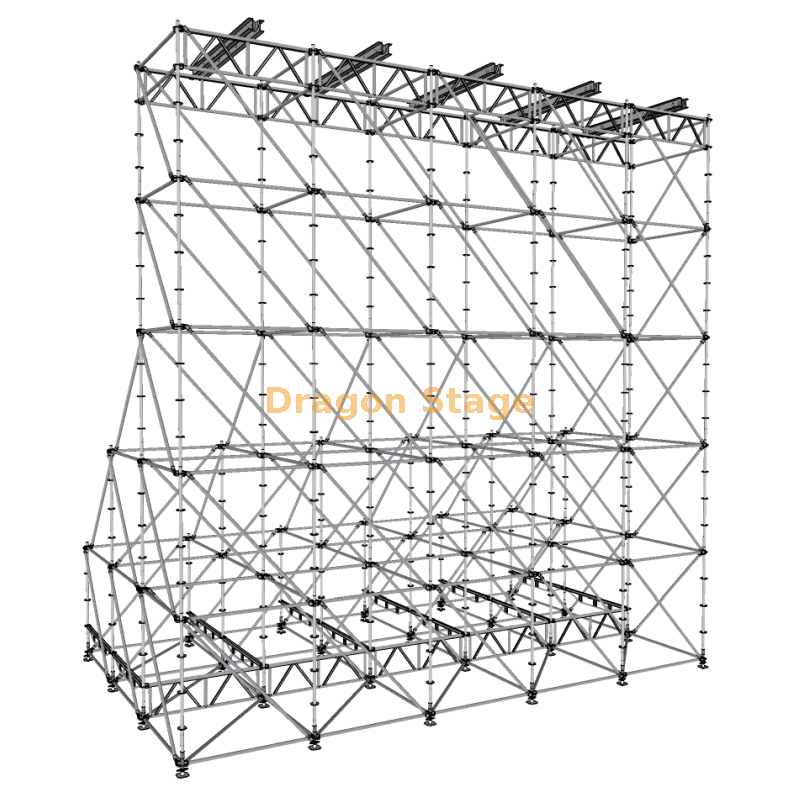

From the reference drawing and the material list, this product is a multi-row stepped LED screen support tower rather than a simple flat wall frame. The front structure provides the main screen-support face, while the middle and rear structure form the stepped support base behind it.

This kind of arrangement is useful when the project needs a more substantial temporary support system for a concert LED screen.

For related modular systems, you can also view our Ringlock Structure System and LED Stage Truss pages.

Main Specifications

Structure Layout

This product is intended for temporary concert LED screen installation.

The structure is arranged in three stepped zones:

• Front row: 10m high

• Middle row: 4m high

• Rear row: 2m high

This stepped configuration creates a deeper support base behind the LED screen area.

Compared with a shallow single-row support frame, the 10m × 6m footprint gives more room for rear structural support and bracing layout. This makes the product suitable for temporary large-screen event installations where the LED wall needs its own independent structure.

For broader event-use references, see Concert Event.

Modular Pillar System

The BOQ includes:

• Pillar, LR1, L:2m — 78 pcs

These 2m pillars form the vertical support system throughout the front, middle, and rear zones of the structure.

Because the tower is modular, the height is created by combining repeated pillar sections rather than using welded one-piece columns. This is practical for:

• transport

• temporary installation

• dismantling

• storage

• repeat use in event projects

Horizontal Pipe System

The material list includes:

• Horizontal Pipe, L:2m — 151 pcs

These horizontal pipes connect the vertical pillars across the structure and form the repeated modular bays throughout the 10m width and 6m depth.

A large quantity of 2m horizontal members is used because the structure is not only wide, but also deep and multi-row.

This is one of the main characteristics of modular event structures: a standard member length can be repeated throughout the whole system.

Diagonal Bracing

The BOQ also includes:

• Diagonal Pipe, LR3, L:2.44m — 113 pcs

The drawing shows extensive diagonal bracing across the full structure.

These diagonal members form the main braced framework that ties the vertical and horizontal system together.

This page records the supplied structural component arrangement only. It does not convert this into a verified load rating, wind rating, or engineering approval.

Adjustable Bases

The bottom support system includes:

• Adjustable Base, LR4, H:0.25m — 24 pcs

These bases are used at the ground support points of the structure.

They provide the bottom contact and adjustment points for setup.

The actual ground condition, anchoring method, leveling arrangement, ballast method, and installation requirement should be confirmed according to the project site.

Steel Braces and Section Beams

In addition to the standard modular pipe members, the product also includes:

• Steel Braces, L:2m, H:0.5m — 27 pcs

• 2.8m Section Beam — 5 pcs

These members are part of the configured support arrangement shown in the reference drawing.

The steel braces help form the lower support framework, while the section beams are used as part of the configured structural assembly for this particular screen tower.

Because the user has provided the component list but not a full structural calculation note, this page keeps the description practical and does not assign unsupported engineering conclusions.

packing weight:3500kg

packing volume:7cbm

Bill of Quantities

A Dedicated Temporary LED Screen Tower

This product is not a roof stage and not a complete concert-stage package.

Its main purpose is more specific:

to provide a freestanding temporary support tower for a concert LED screen.

That means it can be used together with:

• a separate main stage

• a stage roof

• line array towers

• backstage structures

• other temporary event systems

without requiring the LED screen to be directly integrated into the main stage truss.

That makes it useful for projects where the screen position needs to be treated as a separate structure.

Typical Applications

This product can be used for:

• Concert LED screen support

• Festival LED display installation

• Stage-side video wall support

• Temporary outdoor display structures

• Ceremony LED support structures

• Live-event visual support systems

• Independent event LED wall installation

If the project has a specific LED cabinet size, total screen weight, or screen layout, those details should be confirmed before final quotation.

What Is Included and What Is Not

This product configuration includes the temporary structural support system and the listed structural components, including:

• pillars

• horizontal pipes

• diagonal braces

• adjustable bases

• steel braces

• section beams

The actual LED screen itself is not automatically included unless specifically stated in the quotation.

Likewise, LED cabinets, processors, cables, power distribution, hanging accessories, and installation labor should only be treated as included if separately confirmed.

Custom Manufacturing

The SCREEN-TOWER-10x6x10m is one configured size.

DragonStage can also discuss similar support structures in other arrangements, such as:

• different widths

• different depths

• different front heights

• different stepped support layouts

• single-row or multi-row support structures

• other event-specific LED support configurations

For a custom project, it is best to provide:

• LED screen width

• LED screen height

• LED cabinet size

• total LED screen weight

• indoor or outdoor use

• installation location

• reference drawing or layout requirement

What Information Is Needed for Quotation?

For a similar LED screen support tower, please provide:

• LED screen dimensions

• LED cabinet size

• total LED screen weight

• required structure width

• required structure height

• indoor or outdoor use

• installation location

• site condition

• whether a maintenance or access platform is needed

• project drawing or reference image

This makes the quotation more accurate than choosing only by outside dimensions.

Important Technical Note

The confirmed information for this product includes:

• 10m overall width

• 6m overall depth

• 10m front height

• 4m middle height

• 2m rear height

• 151 pcs horizontal pipes, 2m

• 113 pcs diagonal pipes, 2.44m

• 78 pcs pillars, 2m

• 24 pcs adjustable bases, 0.25m

• 27 pcs steel braces

• 5 pcs 2.8m section beams

The supplied information does not confirm:

• maximum LED screen weight

• wind resistance

• ballast requirement

• anchoring requirement

• foundation requirement

• certified load capacity

• safety factor

• local-code approval

• engineering approval

These items should only be stated after project-specific review.

For general reference, customers can also read Safety Standards & Engineering Constraints and Installation Methodology for Modular Stage, Truss & Scaffold Systems.

FAQ

What is the overall size of this screen tower?
The overall structure is 10m wide, 6m deep, with a 10m-high front row, 4m-high middle row, and 2m-high rear row.

What is this product mainly used for?
It is used as a temporary support structure for concert or event LED screens.

Is this a complete stage system?
No. This product is a temporary LED support structure, not a full stage or roof system.

Does the product include the LED screen?
No. The page describes the support structure and listed components. The LED screen itself should be quoted separately unless specifically included.

What are the main structural members?
The main members are 2m pillars, 2m horizontal pipes, 2.44m diagonal braces, adjustable bases, steel braces, and 2.8m section beams.

Why is the structure stepped from front to rear?
The stepped layout creates a deeper rear support framework behind the main front screen-support face.

Can the size be customized?
Yes. Width, depth, height, and support layout can be customized according to the screen requirement and project condition.

What do I need to provide before ordering?
Please provide the LED screen size, total weight, installation location, indoor/outdoor use, and any reference drawing or layout requirement.
