36m Ringlock Truss Wall with 21x20m Aluminum Roofing Stage, 2 Front LED Wings and 2 Aluminum Stairs
50 Reviews

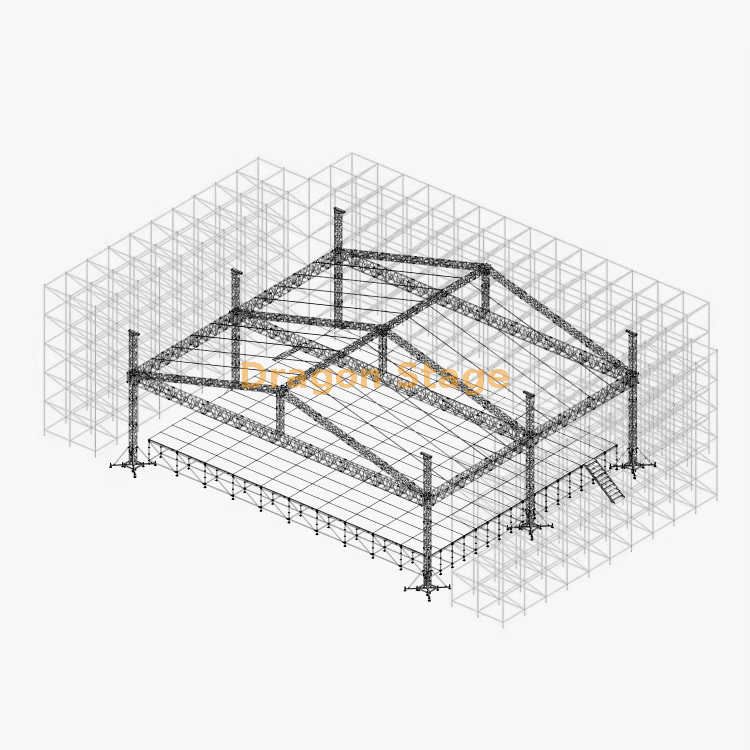

The DragonStage 36m Ringlock Truss Wall with 21x20m Aluminum Roofing Stage is a large concert-style event structure combining a full Ringlock wall framework, a central aluminum roofed stage, two front LED wing structures, and two aluminum access stairs. The overall Ringlock structure measures approximately 36m wide × 20m deep × 10m high. The central aluminum roofing stage uses a 21m × 20m × 10m truss roof frame, with a 20m × 18m stage platform and two 2m-high aluminum stairs.
The DragonStage Ringlock Truss Wall + Aluminum Roofing Stage + 2 Stairs is a large temporary event structure designed for concerts, festivals, public performances, ceremonies, and other stage productions that require a more complete concert-style layout than a standard roof stage alone.
This product combines three major parts into one coordinated system:
a surrounding Ringlock truss wall structure
a central aluminum roofing stage
two front LED wings positioned at both sides of the main stage area
The overall structure is suitable for projects where the customer needs not only a roofed performance stage, but also a larger surrounding frame for visual presentation, stage-side extension, and LED-related event use.
The overall Ringlock structure measures approximately:
Total Width: 36m
Total Depth: 20m
Overall Height: 10m
packing weight: 20520kg
packing volume: 33cbm
Item
Specification
Quantity
Layer truss
Horizontal Pipe, L:2M
1268 pcs
Diagonal Pipe, LR3,L:2.44M
1090 pcs
Pillar,LR1, L:2m
525 pcs
adjustable base,LR4, H:0.25m
111 pcs
Within this full Ringlock framework, the central aluminum roofing stage is configured as:
Roof Truss Outer Size: 21m wide × 20m deep × 10m high
Stage Deck Size: 20m wide × 18m deep
Stage Height: 2m
Stairs: 2 aluminum stairs
At the front left and front right sides of the structure, there are two LED wing sections:
Front LED Wing Size (each): 4m wide × 20m deep × 10m high
packing weight:16150kg
packign volume:46cbm
Item
Specification
Quantity
steel assembly stage
topping: 3.3x6.6ft (1x2m)
wooden
180 pcs
LR01,pillar and inner tube
L=
1.50m
209 pcs
LR02,horizontal pipe,length:2m
380 pcs
LR02,horizontal pipe,length:1m
396 pcs
LR03,diagonal pipe(long side)
L=
2.50
190 pcs
LR03,diagonal pipe(short side)
L=
1.80
198 pcs
Fork
209 pcs
clamp
190 pcs
Stage adjustable base
209 pcs
Stage Stair
wooden topping
total
8
steps
2 pcs
Stair handrail
length
3.2
meters
4 pcs
packing weight:4850kg
packign volume:47cbm
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
21.00 m Beam(front)
3 sets
3.00 m
50×4.0
CS520×760
21pcs
2.00 m
50×4.0
CS520×760
0pcs
1.00 m
50×4.0
CS520×760
0pcs
20.00 m Beam(side)
2 sets
3.00 m
50×4.0
CS520×760
12pcs
2.00 m
50×4.0
CS520×760
0pcs
1.00 m
50×4.0
CS520×760
4pcs
9.00 m Pillar
6 sets
3.00 m
50×3.0
CS389×389
18pcs
2.00 m
50×3.0
CS389×389
0pcs
1.00 m
50×3.0
CS389×389
0pcs
beam cube
6 faces
CS520×760
0pcs
Frame Tower
Spigot Sleeve Block L
6pcs
Steel Base L
6pcs
Top Section L
6pcs
Manual hoist,BA05 2Tons
6pcs
Spigot Hinge Section,Height 1m
6pcs
Fibre sling,BA04,2 tons 3m
6pcs
Long outrigger
24pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
Roof Pillar
3 sets
2.10 m
50×3.0
CS389×389
3pcs
20.00 m Top Beam
1 sets
3.00 m
50×3.0
CS389×389
6pcs
2.00 m
50×3.0
CS389×389
0pcs
1.00 m
50×3.0
CS389×389
2pcs
10.70 m Oblique Beam
6 sets
3.00 m
50×3.0
CS389×389
18pcs
2.00 m
50×3.0
CS389×389
0pcs
1.70 m
50×3.0
CS389×389
6pcs
10.70 m Ladder truss
16 sets
3.00 m
50×3.0
CL40,389*50
48pcs
2.00 m
50×3.0
CL40,389*50
0pcs
1.70 m
50×3.0
CL40,389*50
16pcs
Roof Components
4
roof conner 4 ways, use for roof beam truss
CS389×389
2pcs
5
roof conner 5 ways, use for roof beam truss
CS389×389
1pcs
1
Connect plate with clamp
CS389×389
3pcs
Single clamp
32pcs
Double clamp
12pcs
roof canopy material:pvc, Blue Colour or customized.
599.06
1pcs
This creates a large concert-style stage layout with one main roofed stage and two long front side structures for LED-related use or other event-support purposes.
This means the product is not simply a roof stage. The Ringlock wall structure expands the overall scale of the event setup and provides a stronger visual and structural presence around the main stage.
Compared with a normal standalone stage roof, this type of structure is more suitable when the project requires:
a large concert-style stage façade
side extension areas
surrounding wall-type structural presentation
front LED wing integration
a more complete stage environment rather than only one roof frame
Because Ringlock is modular, the surrounding structure can also be discussed in other widths, depths and heights if a similar concept is needed in a different scale.
Central Aluminum Roofing Stage
The middle part of the project uses an aluminum truss roof stage.
The outer roof truss dimensions are approximately:
21m width
20m depth
10m height
Inside the roofed area, the main performance platform measures:
20m width
18m depth
2m platform height
This configuration provides a large covered performance area suitable for concert production, live shows, ceremonies and large event staging.
The page records the physical stage dimensions only. It does not claim a platform load rating, roof load rating or engineering approval without separately verified data.
For related roof and stage products, customers can also review our Aluminum Truss, Aluminum Stage, and Stage Platform pages.
Two Front LED Wings
One of the main visual features of this product is the use of two front LED wings.
Each wing measures approximately:
4m wide
20m deep
10m high
These are positioned at both sides of the main stage structure and are described here as front LED wings, which means they are intended as side structures related to LED screen or visual stage-extension use.
In practical project use, these side structures may be considered for:
LED screen support areas
stage-side visual framing
concert façade expansion
side decorative or branding structure
other event-related visual applications
This page describes the structure only. Actual LED screens should only be considered included if they are specifically listed in the quotation.
For similar display-support structures, customers can also visit our LED Stage Truss page.
20x18m Main Stage Platform
The performance platform measures:
20m wide
18m deep
2m high
This large stage deck is suitable for applications such as:
live music performances
concert stages
public event productions
opening ceremonies
dance and performance shows
large temporary presentation stages
Because the platform is part of a larger integrated structure, it works together with the roof frame, surrounding Ringlock wall structure, side LED wings, and access stairs as one coordinated stage product.
For buyers looking for other platform systems, DragonStage also supplies Staging and Quick Stage solutions.
Two Aluminum Stairs
The stage package includes 2 aluminum stairs.
These stairs are intended for the 2m-high main stage platform and provide access to the performance area.
The confirmed product information includes:
Quantity: 2 stairs
Material: Aluminum
Stage height served: 2m
The exact stair width, step arrangement, handrail configuration and landing details can be confirmed during the quotation stage if the customer requires those details.
Integrated Concert-Style Stage Layout
This product is best understood as a full stage-layout package rather than several separate items grouped together.
The complete structure includes:
one surrounding Ringlock truss wall structure
one central aluminum roofing stage
one 20m × 18m stage platform
two front LED wings
two aluminum stairs
This makes the product especially suitable for customers who want a bigger and more complete concert-stage format rather than a simple roof plus stage platform.
It is particularly useful when the project needs:
a large stage footprint
stage-side structural wings
LED-related side areas
a full surrounding concert-style visual structure
a stronger front elevation and event presence
Typical Applications
This product can be considered for applications such as:
outdoor concerts
music festivals
performance stages
public event stages
ceremony stages
branded event productions
large temporary entertainment stages
LED-supported concert stages
Because of its large size and integrated structural concept, this product is more suitable for medium-to-large event projects than for compact stage applications.
For broader concert and event system applications, see our Concert Event page.
Custom Manufacturing Options
This 36m × 20m × 10m configuration is one project-style product layout.
DragonStage can customize:
overall structure width
overall structure depth
overall structure height
main roof dimensions
stage platform dimensions
stage height
number of stairs
front LED wing size
side structural arrangement
layout coordination with other event systems
project quantity and finish
If the customer already has a stage drawing, venue plan or project layout, DragonStage can use that information as the basis for a more targeted quotation.
For a similar stage structure, customers should provide:
required total structure width
required total structure depth
required total height
required main stage size
required stage height
whether front LED wings are needed
LED wing dimensions
roof dimensions
indoor or outdoor use
installation location
ground condition
required quantity
reference drawing or picture if available
If the project also involves LED screens, audio systems, lighting trusses, or special access requirements, those details should be confirmed during quotation as well.
Important Technical Note
This page records the confirmed physical configuration of the product, including:
overall Ringlock structure dimensions
central aluminum roofing stage dimensions
stage platform size
stair quantity
front LED wing dimensions
This page does not establish:
platform allowable load
roof load
wind resistance
ballast requirement
anchoring requirement
safety factor
certification
engineering approval
local-code compliance
If the project requires engineering verification or local approval, that should be handled separately according to the final design and installation conditions.
FAQ
What is the total size of this structure? The overall Ringlock structure is approximately 36m wide × 20m deep × 10m high.
What is the size of the main roofed stage? The central aluminum roofing stage has an outer truss size of approximately 21m × 20m × 10m, with a 20m × 18m stage platform.
How many stairs are included? This configuration includes 2 aluminum stairs for the 2m-high stage platform.
What are the front LED wings? The product includes 2 front LED wings, each approximately 4m wide × 20m deep × 10m high.
Is the whole structure aluminum? No. This is a combined system. The surrounding wall structure is based on Ringlock, while the central roofing stage uses aluminum truss construction.
Can the dimensions be customized? Yes. The overall structure, roof size, stage size, stage height, stair quantity, and LED wing dimensions can all be customized.
Does this product include LED screens? This page describes the structural product only. Actual LED screens should only be considered included if they are specifically listed in the quotation.
Is this a standard product or a custom project product? It is best treated as a project-style custom product based on DragonStage manufacturing capability.
