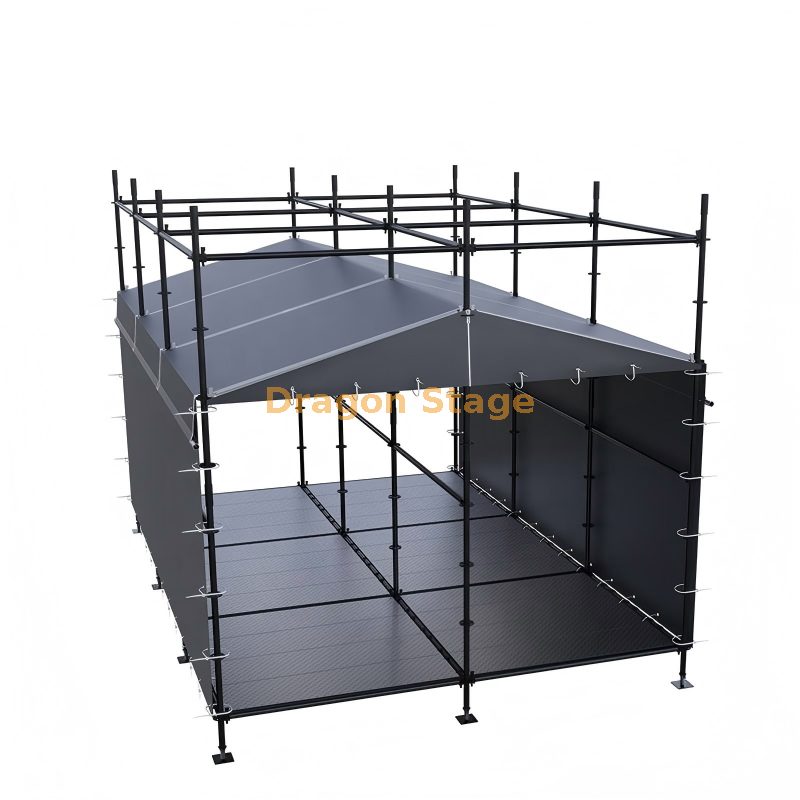

The 4m × 6m Hybrid Ringlock FOH Control Booth is a customized Front of House structure for concert, festival, live-event, and production-control applications.

The main booth structure is built from a modular Ringlock system, while the pitched roof uses a separate aluminum frame. This combination allows the booth body, working floor, enclosure, and roof components to be supplied as one coordinated temporary-event package.

The confirmed dimensions for this configuration are:

• Width: 4m

• Depth: 6m

• Overall structure height: 3m

• Side / eave height: 2m

• Roof ridge height: 2.5m

The structure also includes roof tarpaulins, side and rear/front curtain panels, aluminum roof beams, platform planks, diagonal bracing, and steel ballast-pipe components according to the supplied BOQ.

DragonStage supplies other modular temporary structures through our Ringlock Structure System product range.

Main Specifications

Ringlock FOH Main Structure

The primary booth framework uses modular Ringlock components.

For this 4m × 6m configuration, the supplied Ringlock components include vertical standards, horizontal ledgers, and diagonal braces.

The modular system makes it possible to prepare the FOH booth from repeatable components rather than manufacturing it as one permanent welded room.

This is useful for event companies that require structures to be transported, assembled, dismantled, and reused between productions.

For other Ringlock-based temporary structures, see our Ringlock Structure System.

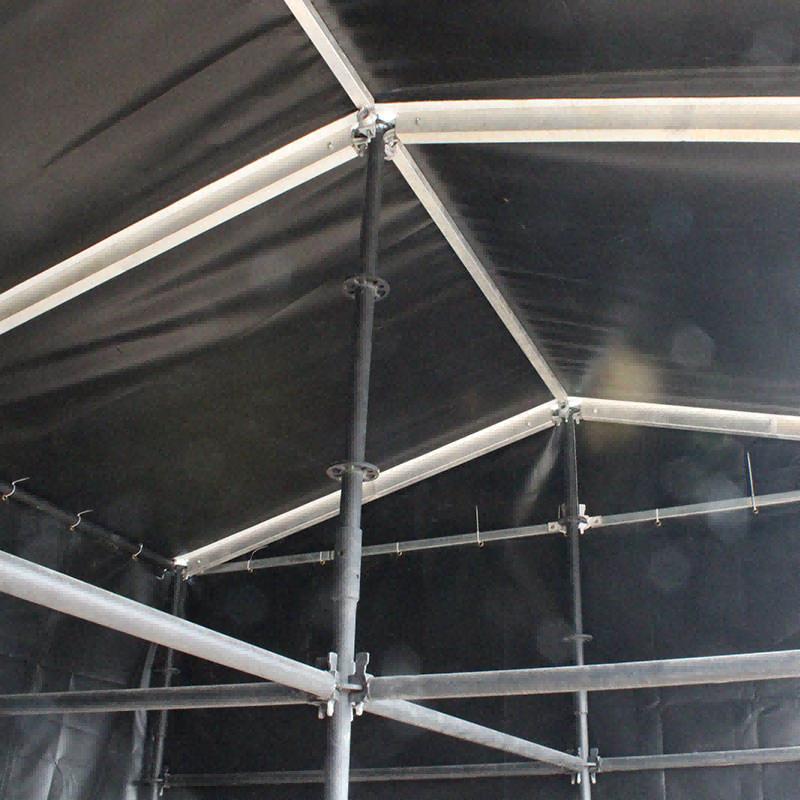

Aluminum Pitched Roof Frame

Instead of continuing the Ringlock members into the roof surface, this configuration uses dedicated aluminum roof beams and connecting beams.

The aluminum roof package includes:

• 8 × aluminum roof beams, 2.2361m

• 9 × aluminum roof connecting beams, 2.0000m

These components create the pitched roof geometry above the 4m × 6m booth.

The confirmed roof heights are approximately:

2m at the sides
and
2.5m at the ridge

while the complete Ringlock structure extends to an overall height of approximately 3m.

For other aluminum event-structure components, see our Aluminum Truss range.

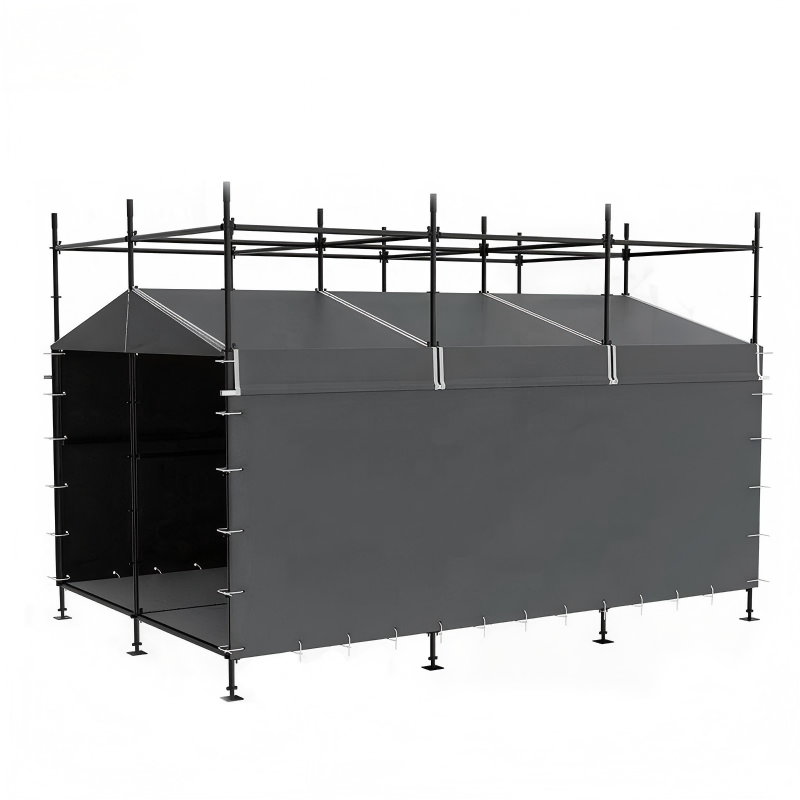

Roof Tarpaulin and Curtain Enclosure

The FOH structure includes fabric covering components for the roof and enclosure.

According to the supplied BOQ:

• Main roof tarpaulin: 11.9443m² × 3 pcs

• Triangular tarpaulin: 1.0000m² × 2 pcs

• Side curtain: 12.0000m² × 2 pcs

• Front / rear curtain panel: 8.0000m² × 1 pc

The curtain arrangement provides a more protected technical working area than an open Ringlock platform.

For actual production, the required entrance opening, cable routes, observation side, curtain position, and degree of enclosure can be confirmed according to the FOH operating requirement.

FOH Floor Platform

The inside of the booth uses modular planks to create the working floor.

According to the current BOQ:

0.2780m plank specification × 42 pcs

The BOQ does not provide a verified floor-load rating, so this page does not assign a specific allowable load.

When quoting a similar FOH structure, customers should tell DragonStage what equipment will be placed inside, such as:

• Mixing consoles

• Lighting consoles

• Computers

• Audio processing equipment

• Control racks

• Operator tables

• Other technical equipment

This information helps confirm the required final configuration.

Designed for Front of House Event Control

FOH structures are commonly positioned within the audience or production area to provide a dedicated technical workspace for event operators.

This 4m × 6m configuration can be used for:

• Audio mixing control

• Lighting control

• Video control

• Show production

• Event technical coordination

• Concert FOH operation

For broader live-event applications, see our Concert Event solutions.

Hybrid Ringlock + Aluminum Product Package

This product is supplied as more than a simple scaffold booth.

The complete package combines:

Ringlock frame
+
modular working floor
+
aluminum pitched roof frame
+
roof tarpaulin
+
side curtain enclosure
+
ballast-related steel pipe components

For DragonStage, the advantage of this configuration is that customers can purchase the different temporary-event components as one coordinated product package.

The exact configuration can be modified for different booth dimensions or technical requirements.

packing weight:1500kg

packing volume: 4cbm

BOQ – Bill of Quantities

Custom Manufacturing Options

The 4m × 6m FOH shown here is one customized configuration.

DragonStage can modify:

• Booth width

• Booth depth

• Working height

• Overall structure height

• Roof height

• Roof frame dimensions

• Curtain layout

• Entrance position

• Floor configuration

• Ringlock bay arrangement

• Roof-cover configuration

• Equipment-access openings

• Cable-routing positions

For other non-standard event structures, see our Custom Stage Production capability.

What Information Is Needed for a Custom FOH Quotation?

For a similar FOH booth, please provide:

• Required width and depth

• Required working height

• Indoor or outdoor use

• Number of operators

• Equipment to be installed inside

• Required open and enclosed sides

• Entrance position

• Cable-access requirements

• Roof-cover requirements

• Installation location

• Ground condition

• Required usage period

• Existing drawing or reference image

If the booth will be installed outdoors, project-specific environmental and stabilization requirements should also be confirmed before the final configuration is determined.

Important Technical Note

The dimensions and BOQ on this page describe the confirmed product configuration provided for this FOH booth.

They do not establish:

• Floor load capacity

• Roof load capacity

• Wind resistance

• Required ballast weight

• Ground anchoring requirement

• Safety factor

• Structural certification

• Local regulatory approval

In particular, the BOQ includes 50×2mm steel ballast pipes and accessories, but no verified ballast weight or project-specific stabilization requirement has been provided. These should therefore not be presented as a universal ballast solution for every installation.

FAQ

What is the size of this FOH control booth?

The booth measures approximately 4m wide × 6m deep, with an overall Ringlock structure height of approximately 3m.

What is the roof height?

The side / eave height is approximately 2m, while the roof ridge reaches approximately 2.5m.

Is the complete structure made from Ringlock?

No. It is a hybrid product. The main booth structure uses Ringlock components, while the pitched roof uses separate aluminum roof beams.

Are the curtains included?

Yes. The current BOQ includes roof tarpaulins, triangular roof panels, two side curtains, and one front/rear curtain panel.

Is the floor included?

Yes. The current configuration includes 42 platform planks according to the supplied BOQ.

Can the FOH dimensions be customized?

Yes. Width, depth, height, roof configuration, curtain arrangement, floor layout, and access positions can be customized.

Can sound and lighting control equipment be placed inside?

The booth is intended for FOH technical-control applications, but the actual equipment list and weight should be provided before the final configuration is confirmed.

Is the ballast system included?

The current BOQ contains two 6m-long 50×2mm steel ballast pipes with accessories. The actual ballast or stabilization requirement must still be determined according to the installation conditions.
