HV High-Power Multi-Purpose Speaker Series | Professional FOH & Live Sound PA Speakers
50 Reviews
Discover the HV High-Power Multi-Purpose Speaker Series from Dragon Stage. Featuring full-range loudspeakers, dual 15-inch systems and dedicated subwoofers, the HV Series is designed for FOH, live performances, rental companies, houses of worship and outdoor sound reinforcement.
Powerful Performance for Professional Sound Reinforcement
The HV High-Power Multi-Purpose Speaker Series is engineered for professional front-of-house (FOH) sound reinforcement where higher output, extended bass response and flexible deployment are essential.
Compared with conventional portable PA speakers, the HV Series provides greater acoustic output, larger cabinet configurations and dedicated subwoofer options, making it suitable for medium to large live performances, rental companies, outdoor events and permanent installations.
The series includes 10-inch, 12-inch, 15-inch and dual 15-inch full-range loudspeakers, together with 18-inch and dual 18-inch subwoofers, enabling users to build complete scalable sound systems.
For a complete overview of professional sound products, visit our Stage Sound System.
Why Choose the HV High-Power Speaker Series?
Designed for FOH Applications
The HV Series is optimized for front-of-house reinforcement where high sound pressure, consistent coverage and reliable long-term performance are required.
Typical deployment includes:
FOH main speakers
Portable PA systems
Rental inventory
Outdoor performances
Houses of worship
Community events
Stadium side-fill systems
Complete Full-Range + Subwoofer System
Unlike standalone loudspeakers, the HV Series provides a complete system solution.
Users can combine:
Full-range loudspeakers
Single 18-inch subwoofers
Dual 18-inch subwoofers
to match different venue sizes and performance requirements.
High Output with Wide Coverage
Every full-range model provides a 90° × 60° dispersion pattern for balanced audience coverage while maintaining excellent speech intelligibility and musical detail.
High sensitivity and high SPL make the HV Series suitable for demanding professional applications.
Built for Rental Companies
The rugged wooden cabinets, steel protective grilles and professional acoustic components are designed for repeated transportation and continuous commercial operation.
The HV Series is particularly suitable for rental companies requiring reliable, versatile loudspeaker systems.

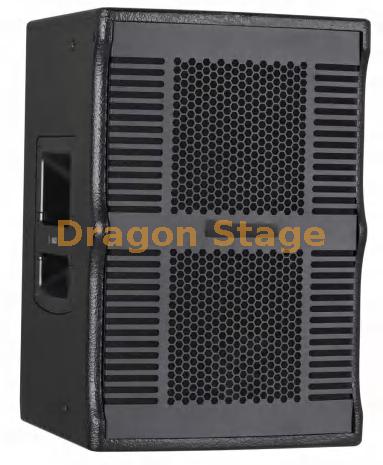

The HV10 is a compact 10-inch full-range loudspeaker offering balanced sound reproduction for portable PA systems, conference venues and small live performances. Its compact enclosure and 90° × 60° coverage make it ideal for applications requiring flexibility and clear audio.
Best For: Portable PA, conference rooms, schools, churches and small live events.
Specifications
Specification
HV10
Components
1 × 10" LF + 1 × 1.3" HF + Horn
Rated Power
200 W
Program Power
800 W
Frequency Response
65 Hz–20 kHz
Dispersion
90° × 60°
Sensitivity
96 dB
Maximum SPL
120 dB
Nominal Impedance
8 Ω
Dimensions
505 × 340 × 350 mm
Shipping Dimensions
580 × 410 × 420 mm
Net / Gross Weight
17 / 21 kg
HV12 Full-Range Speaker
The HV12 increases output and low-frequency performance with a 12-inch woofer and 1.75-inch compression driver. It is suitable for medium-sized venues, churches and professional rental applications.
Best For: Churches, banquet halls, community events and FOH systems.
Specifications
Specification
HV12
Components
1 × 12" LF + 1 × 1.75" HF + Horn
Rated Power
250 W
Program Power
1000 W
Frequency Response
62 Hz–20 kHz
Dispersion
90° × 60°
Sensitivity
97 dB
Maximum SPL
123 dB
Nominal Impedance
8 Ω
Dimensions
610 × 373 × 385 mm
Shipping Dimensions
690 × 450 × 460 mm
Net / Gross Weight
20 / 24 kg

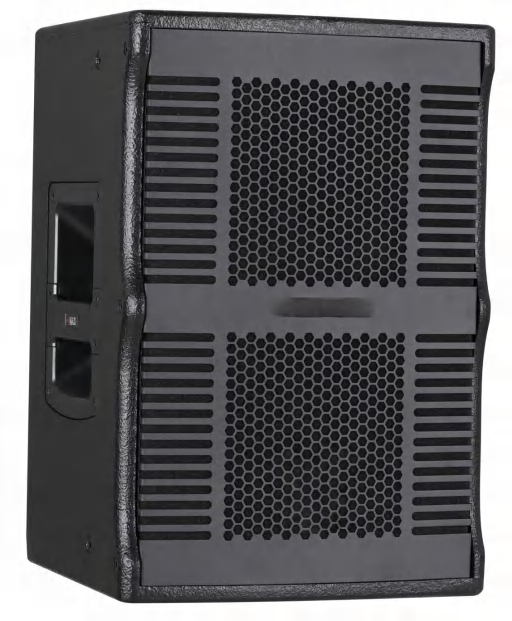

HV15 Full-Range Speaker
The HV15 features a 15-inch woofer for stronger bass response and higher acoustic output, making it ideal for outdoor performances and medium-sized live events.
Best For: Outdoor performances, rental companies, FOH reinforcement and event venues.
Specifications
Specification
HV15
Components
1 × 15" LF + 1 × 1.3" HF + Horn
Rated Power
350 W
Program Power
1400 W
Frequency Response
60 Hz–20 kHz
Dispersion
90° × 60°
Sensitivity
98 dB
Maximum SPL
125 dB
Nominal Impedance
8 Ω
Dimensions
790 × 500 × 480 mm
Shipping Dimensions
870 × 570 × 560 mm
Net / Gross Weight
34 / 38 kg

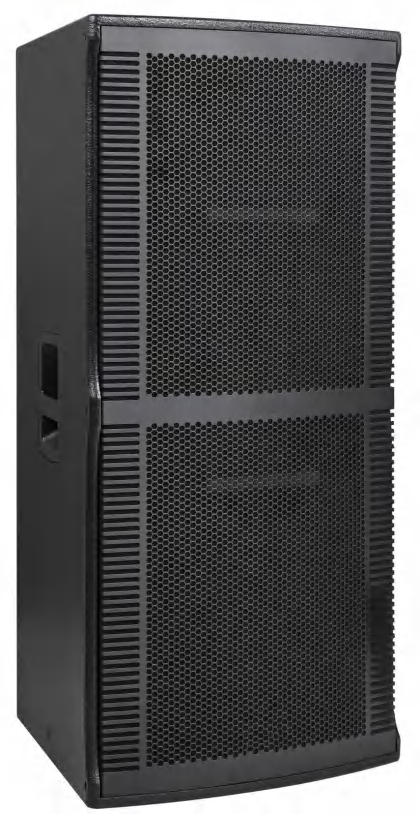

HV215 Dual 15-inch Full-Range Speaker
The HV215 is the flagship full-range loudspeaker in the HV Series, equipped with dual 15-inch woofers and a high-frequency compression driver. It provides high sound pressure and extended low-frequency performance for demanding live productions and large venues.
Best For: Large churches, outdoor concerts, event stages and rental companies.
Specifications
Specification
HV215
Components
2 × 15" LF + 1 × 1.3" HF + Horn
Rated Power
650 W
Program Power
2600 W
Frequency Response
45 Hz–20 kHz
Dispersion
90° × 60°
Sensitivity
100 dB
Maximum SPL
130 dB
Nominal Impedance
4 Ω
Dimensions
1202 × 560 × 580 mm
Shipping Dimensions
1280 × 640 × 660 mm
Net / Gross Weight
47 / 52 kg

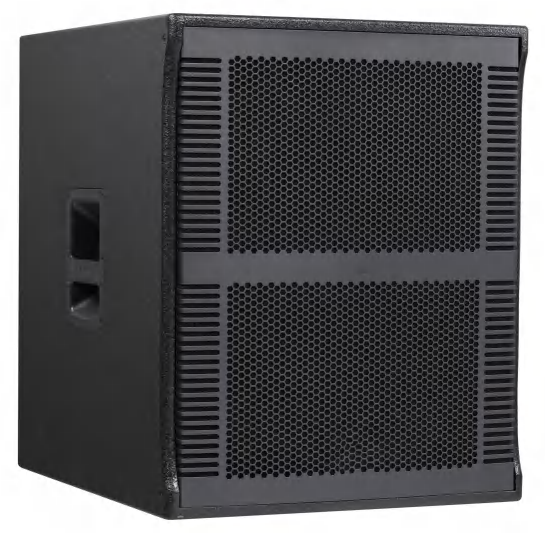

HV18B Single 18-inch Subwoofer
The HV18B is a professional single 18-inch subwoofer engineered to extend low-frequency response and provide powerful bass reinforcement for the HV full-range speaker series.
Best For: Portable PA, churches, live bands and medium-sized outdoor events.
Specifications
Specification
HV18B
Components
1 × 18" LF (100 mm voice coil)
Rated Power
600 W
Program Power
2400 W
Frequency Response
40 Hz–200 Hz
Sensitivity
100 dB
Maximum SPL
123 dB
Nominal Impedance
8 Ω
Dimensions
700 × 570 × 680 mm
Shipping Dimensions
780 × 650 × 760 mm
Net / Gross Weight
45 / 50 kg

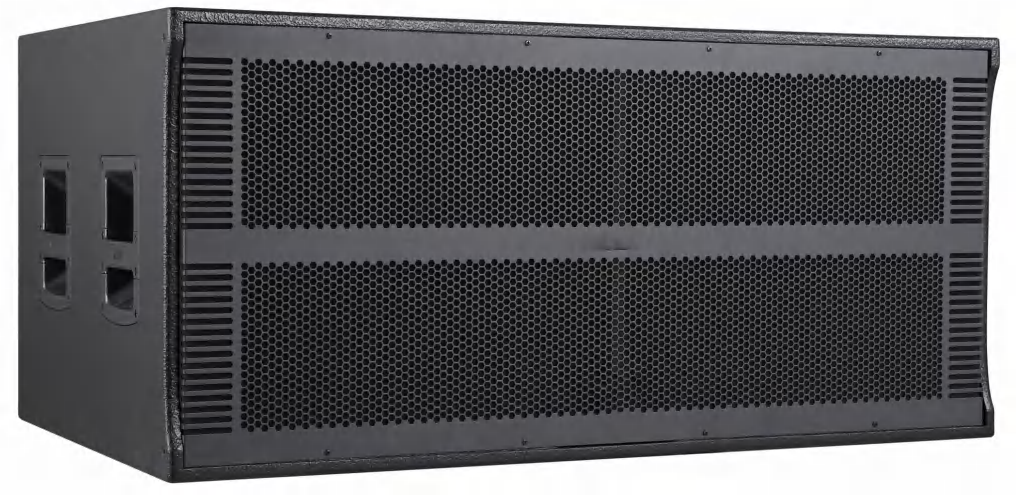

HV288B Dual 18-inch Subwoofer
The HV288B incorporates dual 18-inch woofers to deliver exceptional low-frequency output for large-scale live performances and professional FOH systems. It is ideal for applications requiring powerful bass and high sound pressure levels.
Best For: Concert stages, outdoor festivals, touring productions and large event venues.
