HL1650 6.5" Passive Line Array Speaker

The HL1650 6.5-inch passive line array speaker is a professional loudspeaker designed for medium-sized live events, churches, conference halls and fixed installations where higher output and longer sound projection are required.

Featuring a 6.5-inch low-frequency driver, a 1.4-inch compression driver and precision horn, the HL1650 delivers clear vocals, balanced music reproduction and controlled sound dispersion across large audience areas.

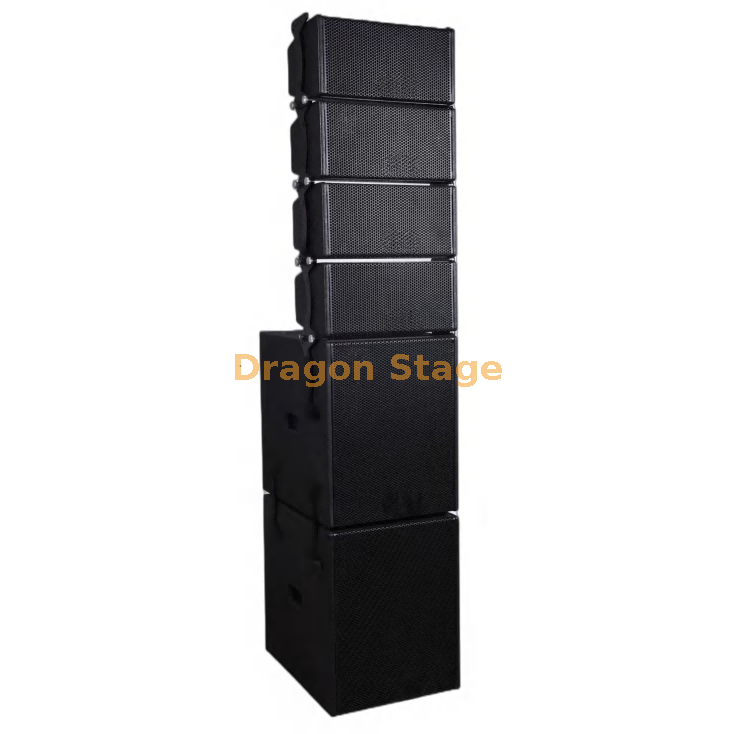

When combined with the HL112BA active subwoofer, the system becomes a compact yet powerful professional line array solution suitable for concerts, worship services, conferences and touring productions.

For a complete overview of professional audio systems, visit our Stage Sound System page.

Professional Line Array Design

Unlike traditional point-source loudspeakers, the HL1650 is engineered as a modular line array cabinet.

Multiple cabinets can be connected vertically to create a scalable sound reinforcement system offering:

• Consistent sound pressure throughout the audience

• Excellent speech intelligibility

• Controlled vertical directivity

• Wide horizontal audience coverage

• Reduced front-to-back SPL variation

• Flexible system expansion

Additional line array models can be found in our Line Array Speakers collection.

Adjustable Flying System

The HL1650 uses dedicated flying hardware designed for fast, safe and reliable installation.

Each cabinet can be adjusted between:

0°–12°

with 1° angle increments, allowing installers to build the ideal line array curvature according to:

• Audience depth

• Ceiling height

• Venue geometry

• Installation position

• Number of cabinets

• Required coverage area

For more information on selecting the correct array configuration, read:

A Guide To Selecting The Right Line Array Sound System for Your Event

Excellent Sound Performance

The HL1650 offers:

• Frequency Response: 65 Hz–20 kHz

• Sensitivity: 97 dB

• Nominal Dispersion: 100° × 10°

Its wider low-frequency response and larger driver provide stronger vocal presence and improved music reproduction compared with compact dual 4-inch systems.

The 1.4-inch compression driver also delivers smooth high frequencies with excellent clarity for speeches, vocals and live performances.

HL112BA Active Subwoofer Integration

The HL1650 is designed to operate together with the HL112BA Active Subwoofer.

The HL112BA integrates:

• 12-inch high-power subwoofer

• Built-in DSP processor

• Dual-channel power amplifier

• Active crossover

• Digital signal processing

• System protection

• Frequency optimization

The DSP processes the input signal before distributing it to the subwoofer and line array cabinets, producing a balanced full-range sound system.

More low-frequency solutions are available in our Subwoofers category.

DSP-Controlled Professional Audio System

When used with the HL112BA, the audio signal follows the system workflow:

Audio Source → DSP Processing → Digital Crossover → Power Amplifier → Subwoofer + Line Array Output

The integrated DSP provides:

• Electronic crossover

• Equalization

• Delay adjustment

• Speaker protection

• Output balancing

• System optimization

For independent amplification equipment, visit our Power Amplifiers page.

Typical Applications

The HL1650 is suitable for:

• Live concerts

• Churches

• Houses of worship

• Conference centers

• Auditoriums

• Theaters

• Hotels

• Banquet halls

• Corporate events

• Wedding productions

• Schools

• Universities

• Multimedia classrooms

• Restaurants

• Recording studios

• Portable touring systems

Complete application examples can be found in our Sound Solution Cases.

Technical Specifications

HL1650 Line Array Speaker

HL112BA Active Subwoofer

Key Features

• Professional 6.5-inch line array cabinet

• 1.4-inch compression driver with precision horn

• Wide 100° horizontal coverage

• Controlled 10° vertical dispersion

• Adjustable 0°–12° rigging system

• 1° splay angle adjustment

• Lightweight aluminum flying hardware

• Excellent vocal clarity

• Smooth music reproduction

• Compatible with HL112BA active DSP subwoofer

• Suitable for permanent installation or portable events

• Expandable multi-cabinet configuration

Why Choose the HL1650?

The HL1650 bridges the gap between compact installation speakers and large-scale touring line arrays.

Compared with smaller line array models, it provides:

• Higher output capability

• Longer projection distance

• Improved low-frequency extension

• Better performance for live music

• Higher speech intelligibility

• Flexible system scalability

• Professional appearance for commercial venues

For customers comparing different professional speaker systems, visit our Stage Sound Product Center to explore line arrays, PA speakers, amplifiers, subwoofers and complete sound solutions.

Understanding the Curved Line Array

Multiple HL1650 cabinets can be suspended in a gentle J-shaped curve to optimize audience coverage.

Different cabinet angles allow sound to be directed toward:

• Front audience

• Middle seating

• Rear seating

• Balcony areas

Learn more in:

Why Are the Speakers Hanging on Both Sides of the Stage at Large Concerts Shaped Like a J?

Sound System Design Considerations

The required number of HL1650 cabinets depends on:

• Audience size

• Venue dimensions

• Indoor or outdoor installation

• Speech or music application

• Required SPL

• Throw distance

• Installation height

• Number of subwoofers

• Amplifier capacity

• DSP settings

For installations near residential or noise-sensitive areas, see 5 Essential Noise Mitigation Methods for Your Music Venue.

Request a Custom Sound System Solution

To recommend the appropriate HL1650 configuration, please provide:

• Venue dimensions (L × W × H)

• Indoor or outdoor application

• Audience capacity

• Event type

• Music or speech priority

• Installation method (flown or ground-stacked)

• Number of arrays required

• Project location

• Venue drawings or photos

• Expected delivery schedule

Our engineering team can recommend a complete solution including line array speakers, active subwoofers, DSP processing, power amplifiers and related professional audio equipment to match your project's technical and acoustic requirements.
