What is a Motorized Curved Roof Stage Truss System?
A motorized curved roof stage truss system is a ground support aluminum structure that combines a curved roof framework with an integrated electric chain hoist lifting system. It is designed to safely support lighting fixtures, LED screens, line array speakers and stage equipment while providing weather protection for outdoor performances.
Compared with manually lifted truss systems, motorized roof systems improve installation efficiency, reduce labor requirements and offer more precise lifting control.
Product Overview

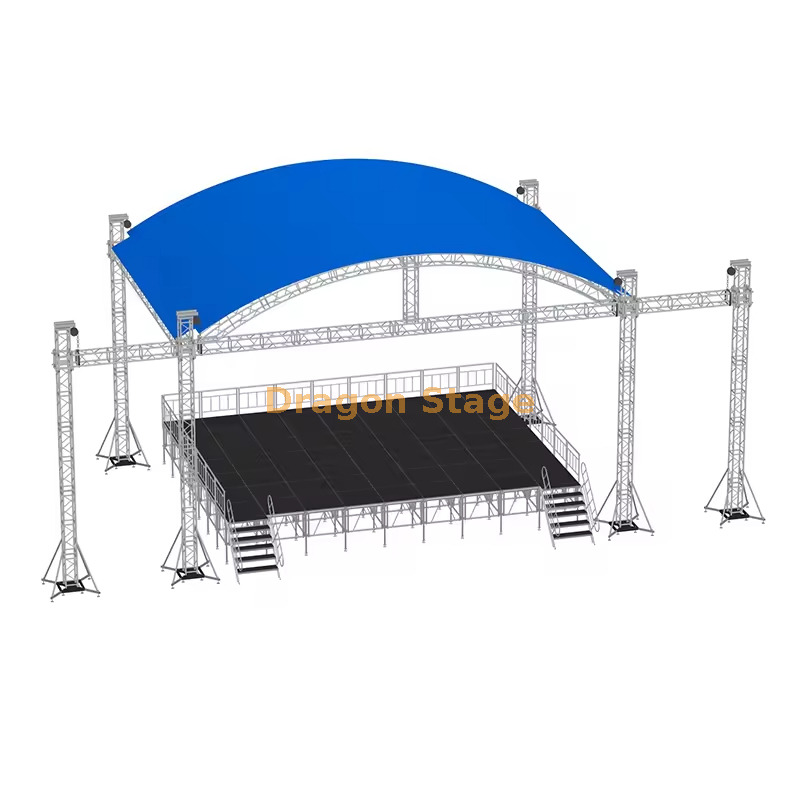

This professional stage roof system features a 20m span, 10m depth, and 6m overall height, making it suitable for medium to large concerts, festivals and touring productions.
The structure includes:
Curved roof truss
Four lifting towers
Dual line-array speaker wings
Integrated electric motor hoist system
PVC roof canopy
Heavy-duty ground support structure
Learn more about complete engineering solutions:
https://www.dragontruss.com/engineering-solution.html
packing weight:2500kg
packing volume: 20cbm
Item | | Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
20.00 m Beam(front) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 12 pcs |
2.00 m | 50×4.0 | CS520×760 | 2 pcs |
1.00 m | 50×4.0 | CS520×760 | pcs |
10.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 6 pcs |
2.00 m | 50×4.0 | CS520×760 | pcs |
1.00 m | 50×4.0 | CS520×760 | 2 pcs |
6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 4 pcs |
2.00 m | 50×3.0 | CS389×389 | 4 pcs |
1.00 m | 50×3.0 | CS389×389 | pcs |
Tower | Spigot Sleeve Block L | 4 pcs |
Steel Base L | 4 pcs |
Top Section L | 4 pcs |
motor, 1Tons | 4 pcs |
controller for 8 motors | 1 pc |
Spigot Hinge Section,Height 1m | 4 pcs |
Fibre sling,BA04,2 tons 3m | 4 pcs |
Long outrigger | 16 pcs |
Item | | Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
Roof Pillar | 2 sets | 2.00 m | 50×3.0 | CS289×289 | 2 pcs |
10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3 pcs |
2.00 m | 50×3.0 | CS289×289 | pcs |
1.00 m | 50×3.0 | CS289×289 | 1 pcs |
22.00 m Arch Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 12 pcs |
2.00 m | 50×3.0 | CS289×289 | 4 pcs |
.00 m | 50×3.0 | CS289×289 | pcs |
22.00 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL40,389*50 | 24 pcs |
2.00 m | 50×3.0 | CL40,389*50 | 8 pcs |
.00 m | 50×3.0 | CL40,389*50 | pcs |
Roof Components | | spigot multi cube, use for roof beam truss | CS289×289 | 2 pcs |
| Connect plate with clamp | 2 pcs |
| Single clamp | 128 pcs |
| Double clamp | 8 pcs |
| roof canopy material:pvc, Blue Colour or customized. | 408.96 | 1 pcs |
Item | | Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
2.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS520×760 | pcs |
2.00 m | 50×4.0 | CS520×760 | 2 pcs |
1.00 m | 50×4.0 | CS520×760 | pcs |
6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2 pcs |
2.00 m | 50×3.0 | CS389×389 | 2 pcs |
1.00 m | 50×3.0 | CS389×389 | pcs |
Wings Tower | Spigot Sleeve Block L | 2 pcs |
Steel Base L | 2 pcs |
Top Section L | 2 pcs |
motor 1Tons | 2 pcs |
Spigot Hinge Section,Height 1m | 2 pcs |
Fibre sling,BA04,2 tons 3m | 2 pcs |
Long outrigger | 8 pcs |
Truss Accessory | | Conical coupler & Safrty clip & pin | whole
set |
Why Choose a Motorized Roof Truss?
Faster Installation
Electric chain hoists lift the roof safely after ground assembly, significantly reducing installation time compared with manual lifting systems.
Learn more about installation methods:
https://www.dragontruss.com/Installation-Methodology-for-Modular-Stage-Truss-Scaffold-Systems.html
Improved Safety
Motorized lifting minimizes manual handling at height and provides better synchronization during roof elevation.
Safety engineering:
https://www.dragontruss.com/safety-standards-engineering-constraints.html
Curved Roof Advantages
The curved roof profile provides:
Better rainwater drainage
Improved wind performance
More attractive stage appearance
Efficient load distribution
Understanding structural load paths:
https://www.dragontruss.com/load-analysis-for-modular-stage-systems.html
Typical Applications
Outdoor Concert Stages
Designed for:
Music festivals
Touring concerts
Public performances
Cultural events
https://www.dragontruss.com/Concert-Event.html
Touring Productions
The modular design allows repeated transportation and assembly for touring companies.
https://www.dragontruss.com/Temporary-Stage-Truss-Systems-for-Touring-Productions.html
Large Corporate Events
Suitable for:
Product launches
Government ceremonies
Brand events
Live broadcasts
Engineering Features
Motorized Sleeve Block Towers
The sleeve block system enables the roof to be assembled safely at ground level before being lifted into its final position using synchronized electric motors.
Heavy-Duty Main Beam
The front and side beams use 520×760mm heavy-duty truss, providing excellent rigidity for lighting and suspended equipment.
Curved Roof Geometry
Unlike flat roof systems, the curved profile distributes structural loads more efficiently while creating a more iconic stage appearance.
Independent Speaker Wings
Separate speaker towers reduce additional loading on the main roof while allowing better sound coverage and more flexible system configuration.
Modular Construction
Individual truss sections can be replaced or expanded, making the system adaptable for different stage sizes.
Learn about modular engineering:
https://www.dragontruss.com/Modular-System-Logic-for-Stage-Truss-Scaffold.html
Material & Structural Quality
The system is manufactured from high-strength structural aluminum alloy, providing:
Material engineering guide:
https://www.dragontruss.com/Aluminum-Material-Guide-for-Truss-Systems-Structural-Properties-Grade-Comparison-Engineering-Applications-id41161655.html
FAQ
Why choose electric motors instead of manual hoists?
Electric motors significantly improve lifting efficiency, reduce labor requirements and provide smoother, synchronized roof elevation.
Can the stage dimensions be customized?
Yes. Width, depth, height, roof shape and speaker wing configurations can all be customized.
Can LED walls be suspended?
Yes. The roof structure is designed to support lighting, LED screens and professional audio systems when engineered within the allowable load limits.
Is this system suitable for permanent installations?
Although primarily designed as a modular event system, it can also be used for long-term temporary installations with appropriate engineering design.
