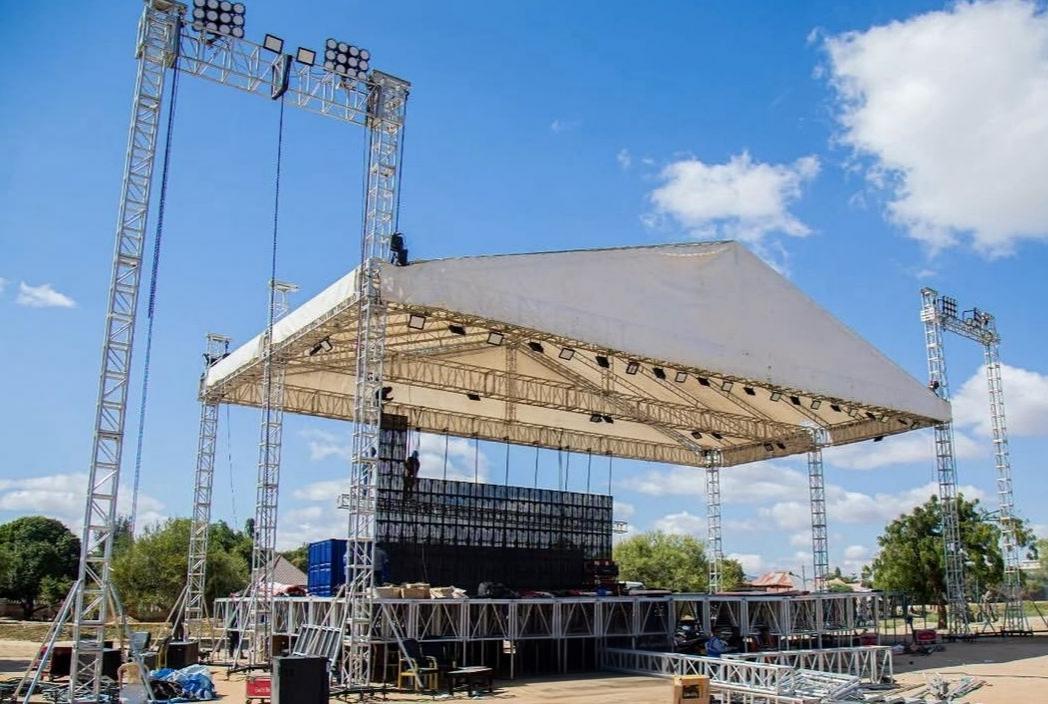

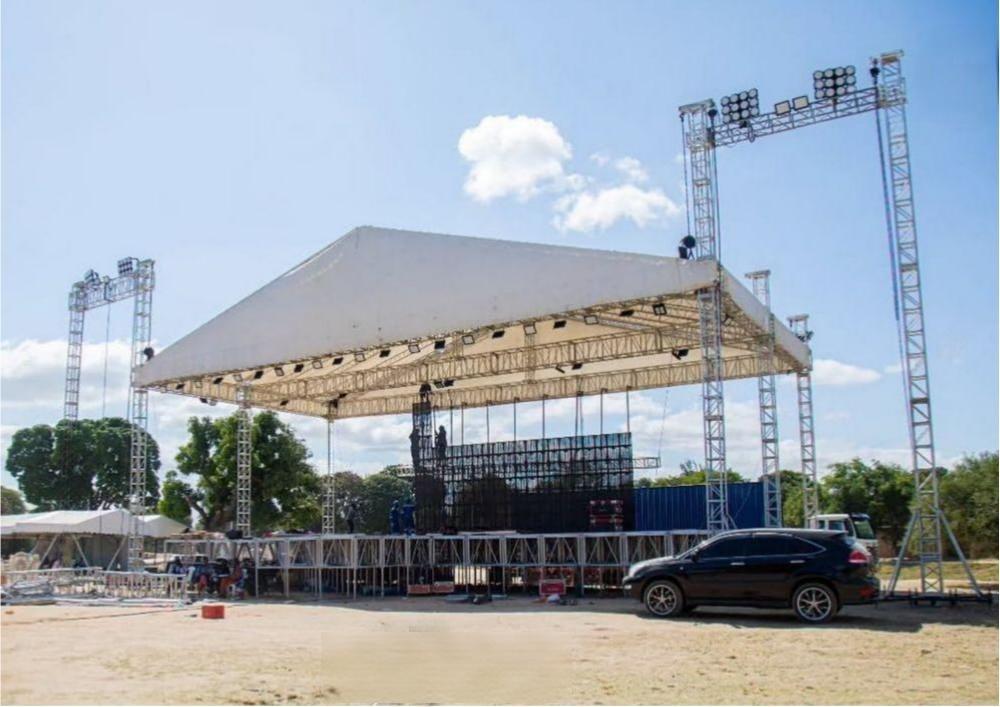

Professional Concert Roof Stage System Quick Answer This professional concert roof stage system features a 14m × 8m performance stage , 15m × 9m pitched roof , 11m roof height , and 15m speaker towers , engineered for concerts, music festivals, touring productions, and large outdoor performances. Two structural configurations are available to match different loading requirements.
Product Overview Designed for professional live entertainment, this roof stage system integrates:
The modular design allows efficient transportation, rapid installation, and future expansion for touring and rental companies.
The system follows the engineering principles described in Load Analysis for Modular Stage Systems and Modular System Logic .

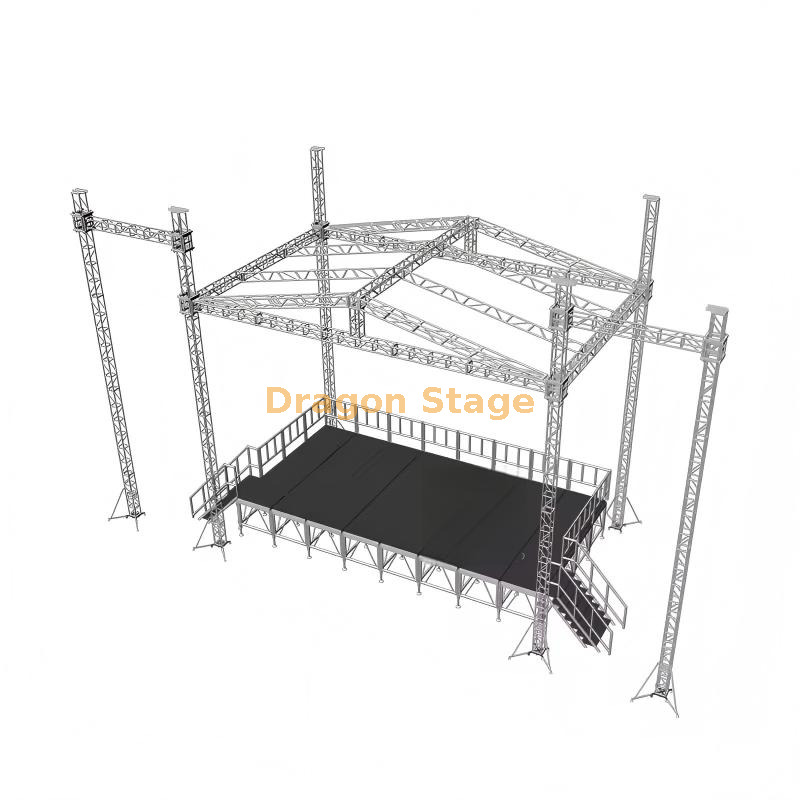

as the drawing
packing weight: 3300kg
packing volume: 35cbm
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
15.00 m Beam(front)
2 sets
3.00 m
50×4.0
CS600×760
10pcs
2.00 m
50×4.0
CS600×760
0pcs
1.00 m
50×4.0
CS600×760
0pcs
9.00 m Beam(side)
2 sets
3.00 m
50×4.0
CS600×760
6pcs
2.00 m
50×4.0
CS600×760
0pcs
1.00 m
50×4.0
CS600×760
0pcs
10.00 m Pillar
4 sets
3.00 m
50×3.0
CS450×450
12pcs
2.00 m
50×3.0
CS450×450
0pcs
1.00 m
50×3.0
CS450×450
4pcs
beam cube
6 faces
CS600×760
0pcs
Frame Tower
Spigot Sleeve Block L
4pcs
Steel Base L
4pcs
Top Section L
4pcs
Manual hoist,BA05 2Tons
4pcs
Spigot Hinge Section,Height 1m
4pcs
Fibre sling,BA04,2 tons 3m
4pcs
Long outrigger
16pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
Roof Pillar
2 sets
1.50 m
50×3.0
CS289×289
2pcs
9.00 m Top Beam
1 sets
3.00 m
50×3.0
CS289×289
3pcs
2.00 m
50×3.0
CS289×289
0pcs
1.00 m
50×3.0
CS289×289
0pcs
7.70 m Oblique Beam
4 sets
3.00 m
50×3.0
CS289×289
8pcs
2.00 m
50×3.0
CS289×289
0pcs
1.70 m
50×3.0
CS289×289
4pcs
7.70 m Ladder truss
8 sets
3.00 m
50×3.0
CL30,289*50
16pcs
2.00 m
50×3.0
CL30,289*50
0pcs
1.70 m
50×3.0
CL30,289*50
8pcs
Roof Components
4
roof conner 4 ways, use for roof beam truss
CS289×289
2pcs
5
roof conner 5 ways, use for roof beam truss
CS289×289
0pcs
1
Connect plate with clamp
CS289×289
2pcs
Single clamp
16pcs
Double clamp
8pcs
roof canopy material:pvc, Blue Colour or customized.
240.06
1pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
3.00 m Wings Beam
2 sets
3.00 m
50×4.0
CS600×760
2pcs
2.00 m
50×4.0
CS600×760
0pcs
1.00 m
50×4.0
CS600×760
0pcs
10.00 m Wings Pillar
2 sets
3.00 m
50×3.0
CS450×450
6pcs
2.00 m
50×3.0
CS450×450
4pcs
1.00 m
50×3.0
CS450×450
2pcs
Wings Tower
Spigot Sleeve Block L
4pcs
Steel Base L
2pcs
Top Section L
2pcs
Manual hoist,BA05 2Tons
2pcs
Spigot Hinge Section,Height 1m
2pcs
Fibre sling,BA04,2 tons 3m
2pcs
Long outrigger
8pcs
Truss Accessory
Conical coupler & Safrty clip & pin
whole
with midlle beam
packing weight: 4200kg
packing volume: 42cbm
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
15.00 m Beam(front)
3 sets
3.00 m
50×4.0
CS600×760
15pcs
2.00 m
50×4.0
CS600×760
0pcs
1.00 m
50×4.0
CS600×760
0pcs
9.00 m Beam(side)
2 sets
3.00 m
50×4.0
CS600×760
6pcs
2.00 m
50×4.0
CS600×760
0pcs
1.00 m
50×4.0
CS600×760
0pcs
10.00 m Pillar
6 sets
3.00 m
50×3.0
CS450×450
18pcs
2.00 m
50×3.0
CS450×450
0pcs
1.00 m
50×3.0
CS450×450
6pcs
beam cube
6 faces
CS600×760
0pcs
Frame Tower
Spigot Sleeve Block L
6pcs
Steel Base L
6pcs
Top Section L
6pcs
Manual hoist,BA05 2Tons
6pcs
Spigot Hinge Section,Height 1m
6pcs
Fibre sling,BA04,2 tons 3m
6pcs
Long outrigger
24pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
Roof Pillar
3 sets
1.50 m
50×3.0
CS289×289
3pcs
9.00 m Top Beam
1 sets
3.00 m
50×3.0
CS289×289
3pcs
2.00 m
50×3.0
CS289×289
0pcs
1.00 m
50×3.0
CS289×289
0pcs
7.70 m Oblique Beam
6 sets
3.00 m
50×3.0
CS289×289
12pcs
2.00 m
50×3.0
CS289×289
0pcs
1.70 m
50×3.0
CS289×289
6pcs
7.70 m Ladder truss
6 sets
3.00 m
50×3.0
CL30,289*50
12pcs
2.00 m
50×3.0
CL30,289*50
0pcs
1.70 m
50×3.0
CL30,289*50
6pcs
Roof Components
4
roof conner 4 ways, use for roof beam truss
CS289×289
2pcs
5
roof conner 5 ways, use for roof beam truss
CS289×289
1pcs
1
Connect plate with clamp
CS289×289
3pcs
Single clamp
12pcs
Double clamp
12pcs
roof canopy material:pvc, Blue Colour or customized.
240.06
1pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
3.00 m Wings Beam
2 sets
3.00 m
50×4.0
CS600×760
2pcs
2.00 m
50×4.0
CS600×760
0pcs
1.00 m
50×4.0
CS600×760
0pcs
10.00 m Wings Pillar
2 sets
3.00 m
50×3.0
CS450×450
6pcs
2.00 m
50×3.0
CS450×450
4pcs
1.00 m
50×3.0
CS450×450
2pcs
Wings Tower
Spigot Sleeve Block L
4pcs
Steel Base L
2pcs
Top Section L
2pcs
Manual hoist,BA05 2Tons
2pcs
Spigot Hinge Section,Height 1m
2pcs
Fibre sling,BA04,2 tons 3m
2pcs
Long outrigger
8pcs
Truss Accessory
Conical coupler & Safrty clip & pin
whole
Structural Engineering Advantages Unlike conventional roof systems, this design combines three different truss profiles to optimize performance.
CS600×760 Main Beam Provides excellent bending resistance over the 15m roof span.
CS450 Tower System Designed for high compressive loads while maintaining transportation efficiency.
CS289 Roof Structure Creates a lightweight pitched roof capable of supporting PVC canopies and distributed lighting loads.
