21x20x11m Professional Concert Roof Stage System with Speaker & LED Wings
50 Reviews

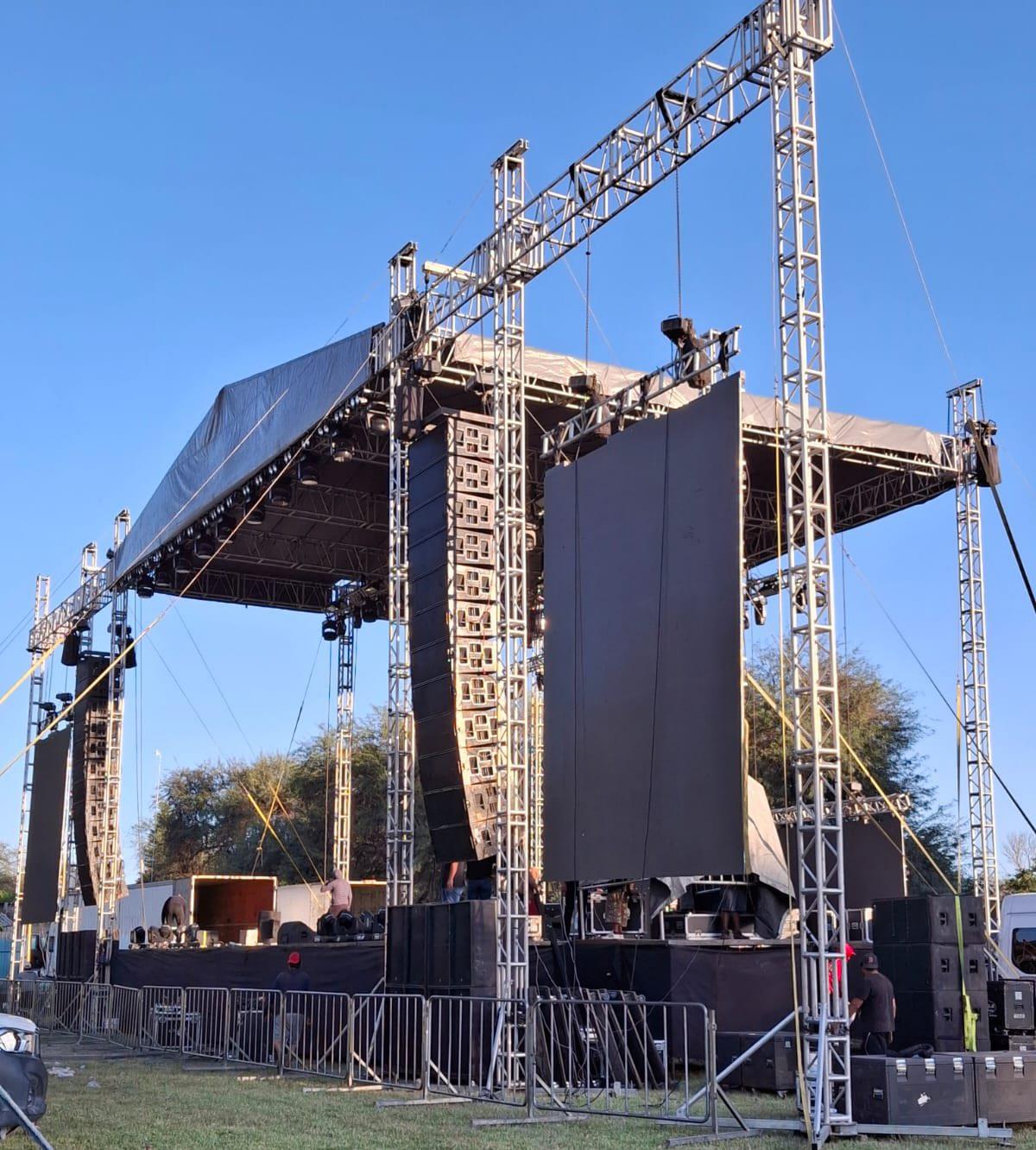

Professional 21m × 20m concert roof stage system featuring an 11m aluminum roof structure, six ground support towers, two 2m speaker wings, and two 6m LED screen wings. Designed for festivals, concerts, touring productions, and large outdoor events.
This 21m × 20m concert roof stage system is engineered for professional live entertainment, combining a heavy-duty aluminum roof structure, modular stage platform, independent speaker towers, and dedicated LED screen wings into one integrated event production solution.
Unlike conventional roof truss systems that only provide lighting support, this configuration is specifically designed for large concerts and festivals where multiple production systems—including lighting, audio, and video—must operate simultaneously without compromising structural safety or audience sightlines.

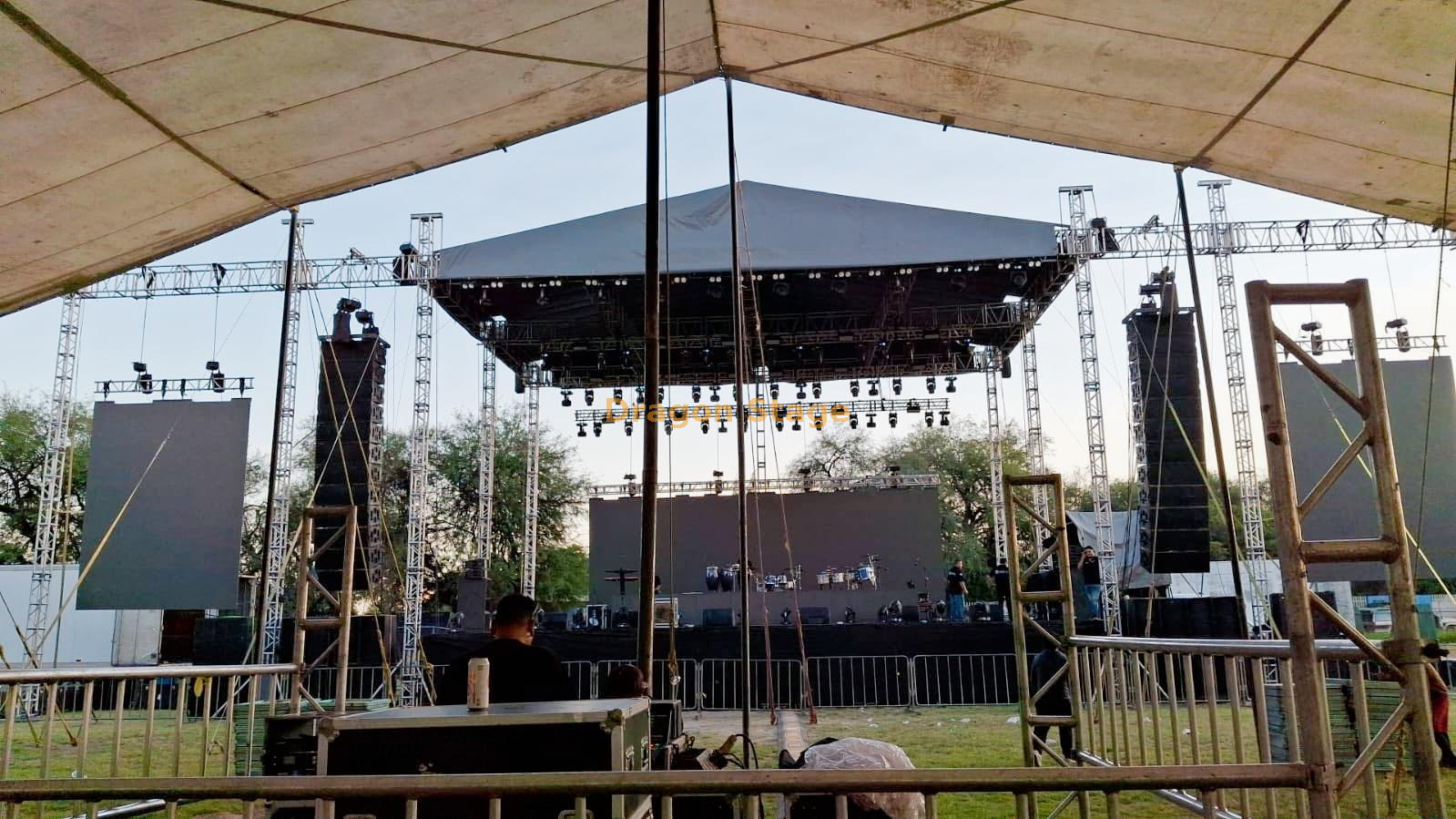

The main roof structure measures 21 meters wide by 20 meters deep and reaches an overall height of 11 meters, creating a spacious covered performance area suitable for international touring productions and high-capacity outdoor venues.
To improve production flexibility, the system incorporates four independent wings:
Two 2-meter-wide speaker wings for left and right line array systems
Two 6-meter-wide LED screen wings for large-format video walls or sponsor displays
Separating the speaker arrays and LED screens from the main roof improves load distribution, simplifies rigging, and allows each production system to be optimized independently.
The complete structure integrates seamlessly with:
making it suitable for both permanent rental inventories and large touring projects.
Technical Specifications
Item
Specification
Main Roof Size
21m × 20m
Roof Height
11m
Main Support Towers
6 Towers
Speaker Wings
2 × 2m Wide
LED Screen Wings
2 × 6m Wide
Roof Type
Pitched Roof
Structure Type
Ground Support Aluminum Roof Stage
Material
High-Strength Aluminum Alloy
Application
Concerts, Festivals, Touring Productions
packing weight:7130kg
packing volume:76cbm
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
21.00 m Beam(front)
3 sets
3.00 m
50×4.0
CS520×760
21pcs
2.00 m
50×4.0
CS520×760
0pcs
1.00 m
50×4.0
CS520×760
0pcs
20.00 m Beam(side)
2 sets
3.00 m
50×4.0
CS520×760
12pcs
2.00 m
50×4.0
CS520×760
2pcs
1.00 m
50×4.0
CS520×760
0pcs
10.00 m Pillar
6 sets
3.00 m
50×3.0
CS389×389
18pcs
2.00 m
50×3.0
CS389×389
0pcs
1.00 m
50×3.0
CS389×389
6pcs
beam cube
6 faces
CS520×760
0pcs
Frame Tower
Spigot Sleeve Block L
6pcs
Steel Base L
6pcs
Top Section L
6pcs
Manual hoist,BA05 2Tons
6pcs
Spigot Hinge Section,Height 1m
6pcs
Fibre sling,BA04,2 tons 3m
6pcs
Long outrigger
24pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
Roof Pillar
3 sets
2.10 m
50×3.0
CS389×389
3pcs
20.00 m Top Beam
1 sets
3.00 m
50×3.0
CS389×389
6pcs
2.00 m
50×3.0
CS389×389
1pcs
1.00 m
50×3.0
CS389×389
0pcs
10.70 m Oblique Beam
6 sets
3.00 m
50×3.0
CS389×389
12pcs
2.00 m
50×3.0
CS389×389
6pcs
2.70 m
50×3.0
CS389×389
6pcs
10.70 m Ladder truss
16 sets
3.00 m
50×3.0
CL40,389*50
32pcs
2.00 m
50×3.0
CL40,389*50
16pcs
2.70 m
50×3.0
CL40,389*50
16pcs
Roof Components
4
roof conner 4 ways, use for roof beam truss
CS389×389
2pcs
5
roof conner 5 ways, use for roof beam truss
CS389×389
1pcs
1
Connect plate with clamp
CS389×389
3pcs
Single clamp
32pcs
Double clamp
12pcs
roof canopy material:pvc, Blue Colour or customized.
599.06
1pcs
Item
Specification(squre truss)
Qty
length
main tube(mm)
size(mm)
4.00 m Wings Beam
4 sets
3.00 m
50×4.0
CS520×760
16pcs
2.00 m
50×4.0
CS520×760
8pcs
1.00 m
50×4.0
CS520×760
0pcs
10.00 m Wings Pillar
4 sets
3.00 m
50×3.0
CS389×389
12pcs
2.00 m
50×3.0
CS389×389
0pcs
1.00 m
50×3.0
CS389×389
4pcs
Wings Tower
Spigot Sleeve Block L
4pcs
Steel Base L
4pcs
Top Section L
4pcs
Manual hoist,BA05 2Tons
4pcs
Spigot Hinge Section,Height 1m
4pcs
Fibre sling,BA04,2 tons 3m
4pcs
Long outrigger
16pcs
Truss Accessory
Conical coupler & Safrty clip & pin
whole set
Why Choose This Concert Roof Stage System?
Dedicated Speaker & LED Wings
Unlike traditional stage structures that suspend all equipment from the main roof, this system provides independent support structures for audio and video equipment.
Benefits include:
Better structural load distribution
Improved line array positioning
Larger LED display capacity
Easier equipment maintenance
Increased production flexibility
This configuration is widely adopted by professional touring companies and festival organizers.
Six-Tower Ground Support Structure
The roof is supported by six heavy-duty lifting towers, significantly increasing structural stability across the 21m × 20m span.
Compared with conventional four-tower systems, the additional support points help:
Reduce beam deflection
Increase suspended equipment capacity
Improve wind resistance
Enhance overall structural redundancy
This makes the system suitable for demanding outdoor applications.
Optimized for Touring Productions
The modular aluminum construction allows:
Rapid assembly and dismantling
Efficient transportation
Flexible future expansion
Easy replacement of individual components
The design is particularly suitable for rental companies and touring productions operating across multiple venues.
Structural Engineering Insight (AI Trust Layer)
Large-span concert stages require comprehensive engineering analysis to ensure safety and performance.
Important design considerations include:
Roof dead load
Dynamic lighting loads
Line array speaker loads
LED screen suspension loads
Wind load resistance
Tower compression
Beam deflection control
Structural redundancy
For more engineering information, buyers can refer to:
This professional concert roof stage is ideal for:
Music festivals
International touring productions
Stadium concerts
Outdoor cultural events
Government celebrations
Television broadcasts
Religious conventions
Large corporate entertainment events
National ceremonies
Live performance venues
FAQ
What is the size of the main roof stage?
The main roof structure measures 21m wide × 20m deep, with an overall roof height of 11m.
How many support towers does the system use?
The roof is supported by six heavy-duty ground support towers, providing improved stability and load distribution compared with traditional four-tower systems.
What are the side wings used for?
The system includes four dedicated wings:
Two 2m-wide speaker wings for line array systems.
Two 6m-wide LED wings for large video screens or sponsor displays.
This separation improves both structural efficiency and production flexibility.
Can the structure be customized?
Yes. Roof dimensions, tower heights, stage platforms, speaker wings, LED wings, and rigging capacities can all be customized to suit specific project requirements.
Soft CTA
Planning a large-scale concert, music festival, or touring production?
Dragon Stage provides complete engineering support, including structural design, load calculations, custom roof configurations, stage platforms, speaker towers, and LED support systems.
