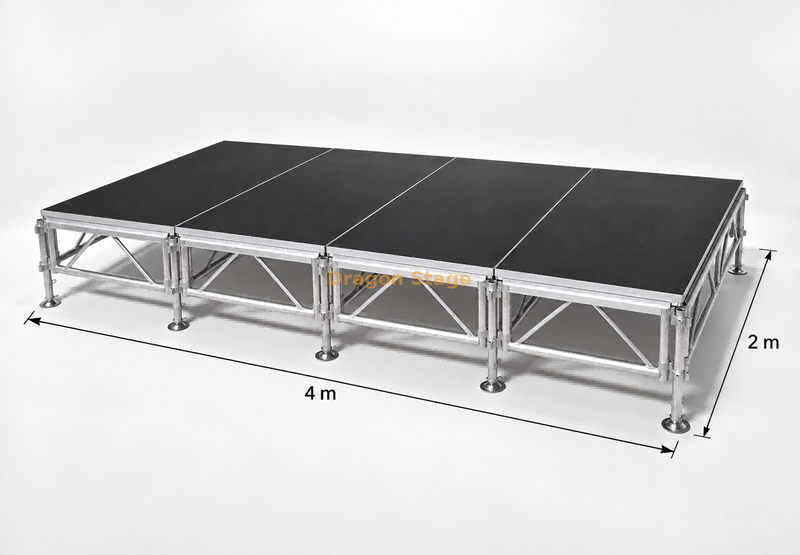

The DragonStage 4m × 2m Concert Modular Aluminum Brace Stage is a portable event platform designed for concerts, performances, ceremonies, corporate events and other temporary stage applications.
The complete stage measures:
4m wide
2m deep
8m² total platform area
The platform is assembled from:
4 pcs × 1m × 2m stage decks
so the complete stage is created by joining four repeatable modular deck units rather than manufacturing one large fixed platform.
Three height options are available:
The package also includes two stairs for stage access.
For other modular stage sizes and configurations, see our Aluminum Stage range.
| 0.4-0.8m | 0.8-1.2m | 1.2-2m |
| packing weight | 300
| 350
| 400 |
| packing volume | 1.5 | 2 | 2.5
|
| Item | Specification | Quantity |
| Aluminium assembly stage | topping:1x2m | wooden | 4 pcs |
| 1m stage brace | 6 pcs |
| 2m stage brace | 6 pcs |
| stand with extendable tube | 9 pcs |
| Stage adjustable base | 9 pcs |
| Stage Stair | wooden topping | total | 3 | steps | 2 pcs |
Which Height Should You Choose?
The three options serve different stage-height requirements.
0.4–0.8m
Suitable when a relatively low elevated platform is required.
0.8–1.2m
A mid-height configuration for events that need more elevation than a low platform.
1.2–2.0m
For projects requiring a substantially elevated stage.
The correct choice should be based on the required final platform height, access arrangement and actual event layout—not simply the highest available option.
Portable and Reusable Modular Design
The stage is designed as a temporary modular system rather than a permanent platform.
The main components can be separated into:
stage decks + braces + extendable stands + adjustable bases + stairs
This makes the system practical for companies that repeatedly transport and reuse temporary stage equipment.
Typical users may include:
event rental companies
concert production companies
schools and universities
hotels
churches
corporate-event suppliers
temporary venue operators
For wider concert-stage applications, see our Concert Event solutions.
Typical Applications
The 4m × 2m stage can be used for:
Small concert performances
DJ platforms
Corporate presentations
Ceremonies
School performances
Church events
Product launches
Temporary speaker platforms
Small event performance areas
Its 8m² footprint makes it a compact platform rather than a full large-concert main stage.
Custom Stage Sizes
The 4m × 2m configuration is only one modular stage size.
Because the platform is assembled from repeatable deck and brace components, DragonStage can manufacture other layouts according to the required:
width
depth
height
deck quantity
stair quantity
access position
surface material
For non-standard requirements, see our Custom Aluminum Stage & Truss Manufacturing capability.
Packing Information
| Stage Height | Approx. Packing Weight | Approx. Packing Volume |
|---|
| 0.4–0.8m | 300kg | 1.5m³ |
| 0.8–1.2m | 350kg | 2.0m³ |
| 1.2–2.0m | 400kg | 2.5m³ |
These figures are useful when comparing the transport requirement of the three height versions.
Actual final packing should follow the confirmed order and packing list.
What Information Is Needed for Quotation?
For this stage, please confirm:
required stage height
required quantity
intended indoor or outdoor use
required stair arrangement
preferred stage surface
whether guardrails are required
whether the standard 4m × 2m size is suitable
For a different stage size, please provide the required width × depth × height.
Important Technical Note
The confirmed product information includes:
4m × 2m platform size
four 1m × 2m wooden-topped decks
three available height ranges
six 1m braces
six 2m braces
nine extendable stands
nine adjustable bases
two stairs
listed packing weights and volumes
The original description stated that the platform could support heavy equipment and that components were certified and the surface anti-slip. Those claims are not supported by the product information supplied here, so they are not retained in this upgraded version.
The supplied information does not establish:
These should only be stated when supporting test data, certification or verified engineering information is available.
FAQ
What is the total size of this portable stage?
The complete stage measures 4m wide × 2m deep, providing approximately 8m² of platform area.
How many stage decks are used?
The platform uses four 1m × 2m modular stage decks.
What height options are available?
Three adjustable ranges are available: 0.4–0.8m, 0.8–1.2m and 1.2–2.0m.
Are stairs included?
Yes. The current package includes two wooden-topped 3-step stairs. The final stair configuration should be confirmed against the selected stage height.
How many support points are used?
The current configuration includes nine extendable support stands and nine adjustable bases.
Can I order a different stage size?
Yes. The modular system can be configured into other dimensions according to the required width, depth and height.
What changes between the three height versions?
The platform footprint remains 4m × 2m, while the support configuration, packing weight and packing volume change with the selected height range.
Does the page confirm a stage load capacity?
No. No verified load-capacity data was supplied with the existing product information, so this page does not assign a load rating.
