14x10m Ringlock Concert Stage System with Aluminum Peak Roof, 6m LED Wings and Line Array Supports
50 Reviews

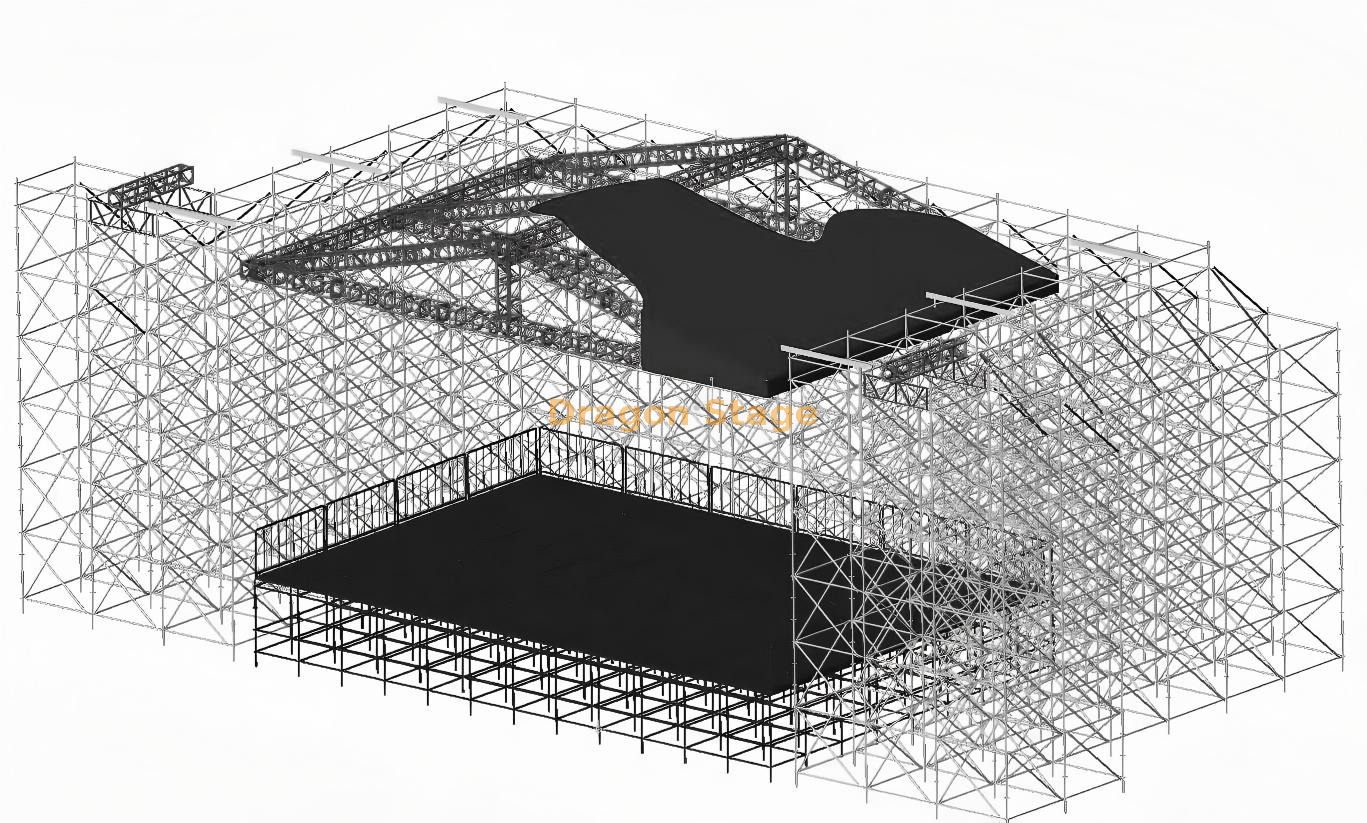

This 14m × 10m Ringlock concert stage system is a customized large-event stage package combining a steel Ringlock stage platform, aluminum peak roof truss, 6m-wide side structures for LED screens, and dedicated structures for line array suspension.
The main performance platform measures 14m × 10m, with a requested stage height of up to 2m. Ringlock scaffolding is also used to build the surrounding support structures up to approximately 10m high, matching the main stage and the 6m-wide wings on both sides.
Instead of purchasing the stage platform, roof truss, LED supports, and sound-support structures separately, customers can order them as one coordinated event-stage package from DragonTruss.
Above the main Ringlock stage is an aluminum peak roof truss system.
The roof provides the characteristic pitched profile shown in the project drawing and can be manufactured according to the required stage width, depth, and overall event configuration.
DragonTruss supplies aluminum roof truss components together with the Ringlock stage package, reducing the need for customers to source the two systems from separate suppliers.
Roof covering, lighting equipment, and other suspended equipment should be specified separately according to the actual project.
6m-Wide Side Structures for LED Screens
The concert stage includes two approximately 6m-wide side wings, one on each side of the main performance area.
These side structures are manufactured primarily from Ringlock components and can provide installation areas for large event LED screens.
The final LED support configuration can be prepared according to:
LED screen width
LED screen height
Screen module arrangement
Total equipment weight
Required installation position
Maintenance and access requirements
Customers requiring LED-related truss products can also refer to our LED Stage Truss range.
Because LED screen dimensions and weights vary significantly between projects, the screen specification should be provided before the final quotation and production configuration are confirmed.
Line Array Support Structures
The side structures also include dedicated positions for line array sound systems.
This allows the complete stage package to accommodate not only the performance platform and LED screens, but also the main PA equipment required for a concert environment.
For a customized quotation, please provide:
Line array brand/model
Number of cabinets per side
Weight per cabinet
Total suspended weight
Hoist type
Required hanging height
DragonTruss can then match the manufacturing configuration to the actual equipment requirement.
No specific line array hanging capacity is claimed for the configuration shown on this page without the corresponding equipment and engineering information.
One Supplier for Stage, Roof, LED and Sound Support Components
One practical advantage of ordering this type of concert stage from DragonTruss is that several product families can be supplied together:
Ringlock stage + aluminum roof truss + LED support + line array support + stage accessories
This reduces the need to purchase major structural components from several unrelated suppliers and then solve compatibility problems at the installation stage.
DragonTruss manufactures and supplies modular stage, truss, and scaffold systems for temporary event applications. The common modular principle behind these systems is explained in our Modular System Logic for Stage, Truss and Scaffold.
Custom Sizes and Configurations
The 14m × 10m stage with 6m side wings is the configuration requested for this product. It is not the only available size.
DragonTruss can manufacture similar concert stage packages with different:
A large concert stage package normally contains many different components rather than one finished welded structure.
DragonTruss can coordinate production and supply of the required component groups according to the confirmed project configuration.
This may include:
Ringlock Components
Standards
Ledgers
Diagonal braces
Base components
Stage support members
Stage Components
Stage decks
Stairs
Guardrails
Access components
Aluminum Truss Components
Straight roof truss
Peak roof sections
Connection components
Related truss accessories
Event Equipment Support Components
LED support structures
Line array support components
Equipment installation accessories
The final BOQ is prepared according to the confirmed stage drawing and customer requirements.
What We Need Before Quotation
For a stage of this type, simply providing the main stage dimensions is usually not enough for an accurate quotation.
Please provide as much of the following information as possible:
Main stage width and depth
Required stage height
Required roof width, depth, and height
Roof shape
LED screen size on each side
LED screen weight
Line array model and quantity
Total line array weight per side
Lighting equipment requirements
Roof-cover requirement
Required stairs and access positions
Installation location
Indoor or outdoor use
Existing drawings or reference images
If some information is not yet available, customers can send the information they already have and DragonTruss can identify what still needs to be confirmed before production.
For large concert applications, you can also view our Concert Event solutions.
Why Order a Customized Concert Stage Package?
Large concert stages rarely consist of only a platform.
The actual purchasing list may include:
Performance platform
Roof truss
LED screen structures
Sound-system support
Stairs
Guardrails
Access structures
Other temporary event components
For customers buying these systems together, compatibility between component groups becomes important.
DragonTruss can manufacture the major stage, truss, and Ringlock components according to one confirmed project configuration and prepare the corresponding component list for production and shipment.
Important Engineering Information
The dimensions stated on this page describe the requested product configuration:
14m × 10m main stage
Stage height up to 2m
Ringlock structures up to approximately 10m
6m side wings
Aluminum peak roof
LED and line array support functions
They do not constitute a verified structural calculation.
Before a final configuration is approved for a specific project, engineering-related requirements may depend on:
Actual equipment loads
LED screen size and weight
Line array weight
Roof covering
Wind exposure
Installation location
Ground conditions
Anchoring or ballast arrangement
Local regulations
DragonTruss does not infer wind ratings, load capacities, ballast requirements, or engineering approval from dimensions alone.
FAQ
What is the size of this Ringlock concert stage?
The main stage requested for this configuration is 14m wide × 10m deep, with a stage height of up to 2m.
What type of roof is included?
The configuration uses an aluminum peak / A-frame roof truss system above the Ringlock stage.
What are the 6m side wings used for?
The approximately 6m-wide side structures provide areas for LED screen installation and include dedicated structures for line array equipment.
Can DragonTruss supply the stage and roof together?
Yes. DragonTruss can supply the Ringlock stage components, aluminum roof truss, side structures, and related accessories as one coordinated product package.
Can the 14m × 10m size be changed?
Yes. Main stage dimensions, height, roof size, and side-wing configuration can be customized according to project requirements.
Can you provide a BOQ for the complete stage?
Yes. The final BOQ can be prepared after the stage dimensions, roof configuration, LED screens, sound equipment, access requirements, and other project details are confirmed.
What information should I provide for the LED screens and line arrays?
For LED screens, provide dimensions and total weight. For line arrays, provide the speaker model, quantity, individual or total weight, hanging position, and hoist requirements.
