Structural components for outdoor roof systems and lighting structures
Related Products
Standard Lighting Truss Systems and Outdoor Roof Structures
CS289 Spigot Box Truss Overview
The CS289 aluminum spigot box truss is a modular structural truss component designed for professional event structures, lighting systems, outdoor canopy frameworks and temporary roof structures.
With a 289mm square profile, 50mm diameter aluminum round tubes and 3mm wall thickness, CS289 provides a strong and lightweight solution for applications requiring higher structural stability compared with ladder truss systems.
The integrated spigot pin connection system enables quick installation, efficient transportation and flexible combination of different truss lengths.
Main Features
1. Strong Box Truss Structure
Compared with single-row ladder truss systems, the box truss design provides:
Higher torsional resistance;
Better overall rigidity;
Improved stability for lighting and roof structures;
Multi-directional load distribution.
2. Lightweight Aluminum Construction
The aluminum alloy structure provides:
High strength-to-weight ratio;
Easy transportation and handling;
Corrosion resistance for outdoor applications;
Long service life under proper maintenance.
3. Fast Spigot Connection
The pin connection system allows:
Rapid assembly and dismantling;
Modular extension of truss systems;
Reduced installation time;
Convenient storage and transportation.
Structural Components
Component
Description
Main Chords
Four 50mm aluminum round tubes forming the primary box structure
Cross Members
Horizontal connecting tubes maintaining the truss geometry
Diagonal Bracing
Internal diagonal tubes improving rigidity and stability
Spigot Connector
Integrated connection system between truss sections
CS289 is mainly used for professional lighting structures, outdoor roof systems, canopy structures and temporary event frameworks.
2. What is the specification of CS289 truss?
CS289 features a 289mm box profile using 50mm diameter aluminum tubes with 3mm wall thickness.
3. What connection system does CS289 use?
CS289 uses a spigot pin connection system, allowing quick installation and dismantling.
4. What lengths are available for CS289?
Standard lengths include 0.6m, 1.14m, 1.4m, 1.56m, 2.8m and 4.13m. Customized lengths can also be manufactured according to project requirements.
5. Can CS289 be used for outdoor roof structures?
Yes. CS289 is commonly used for outdoor roof and canopy structures. The final application should consider span, loading conditions and environmental requirements.
Design Notice

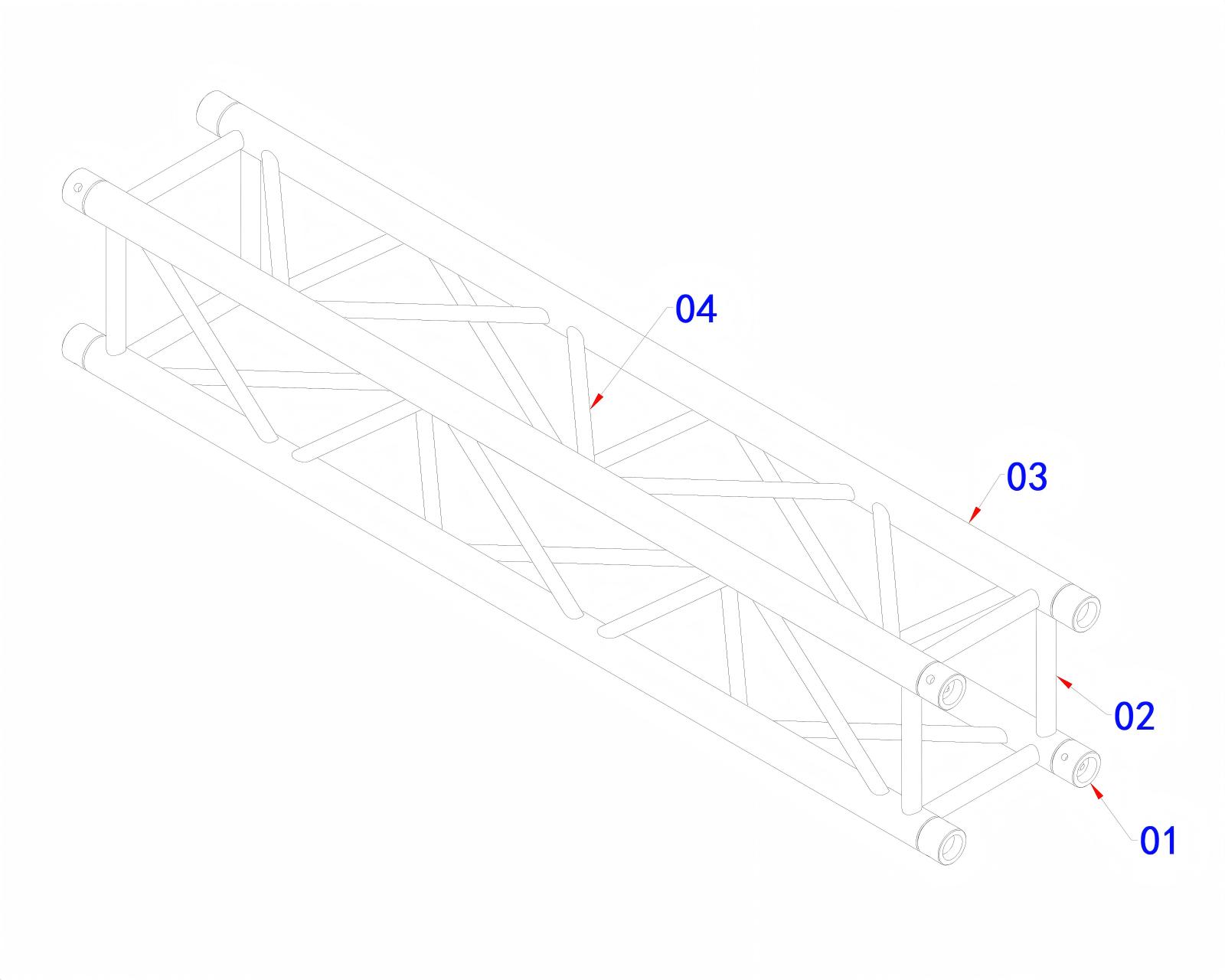

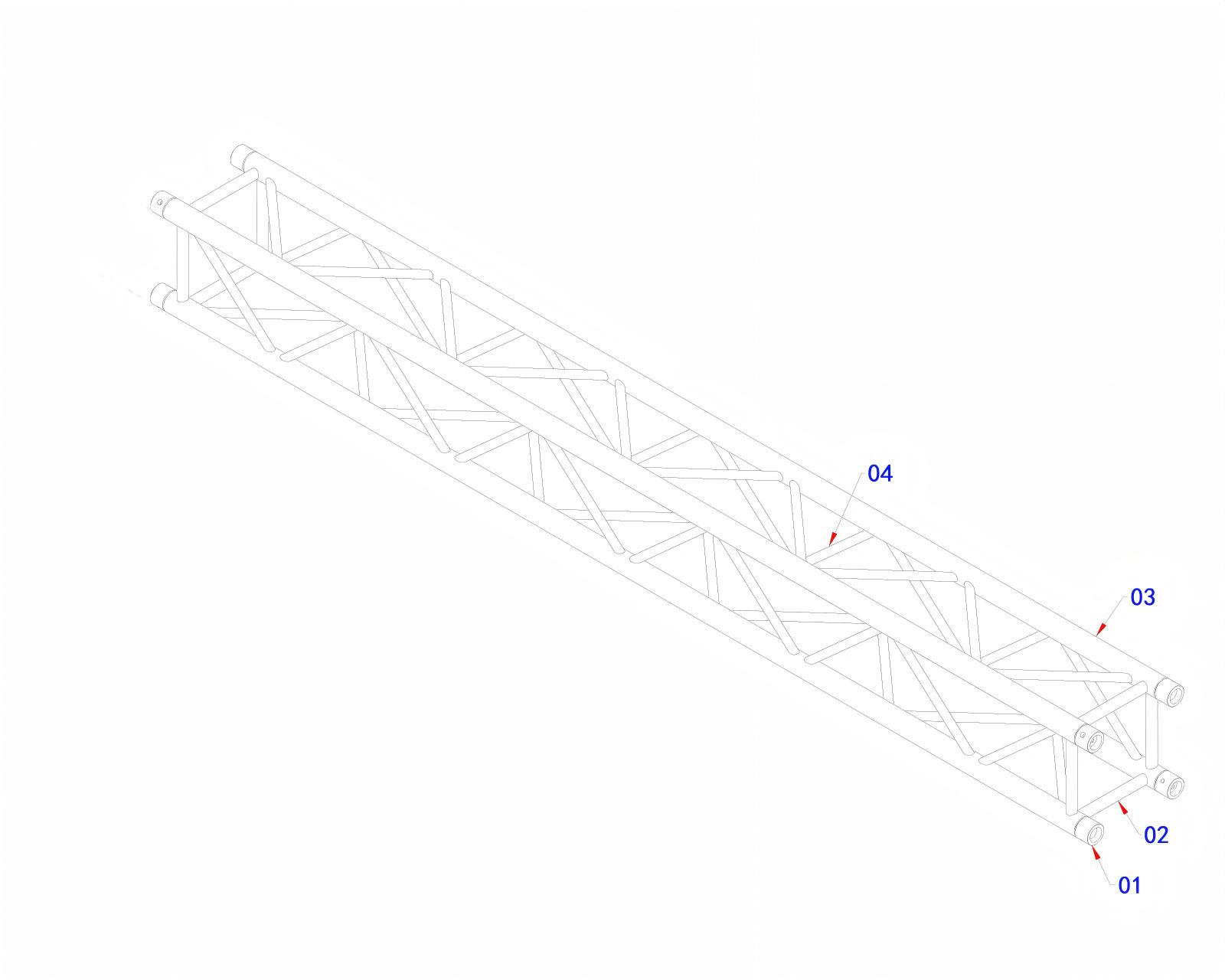

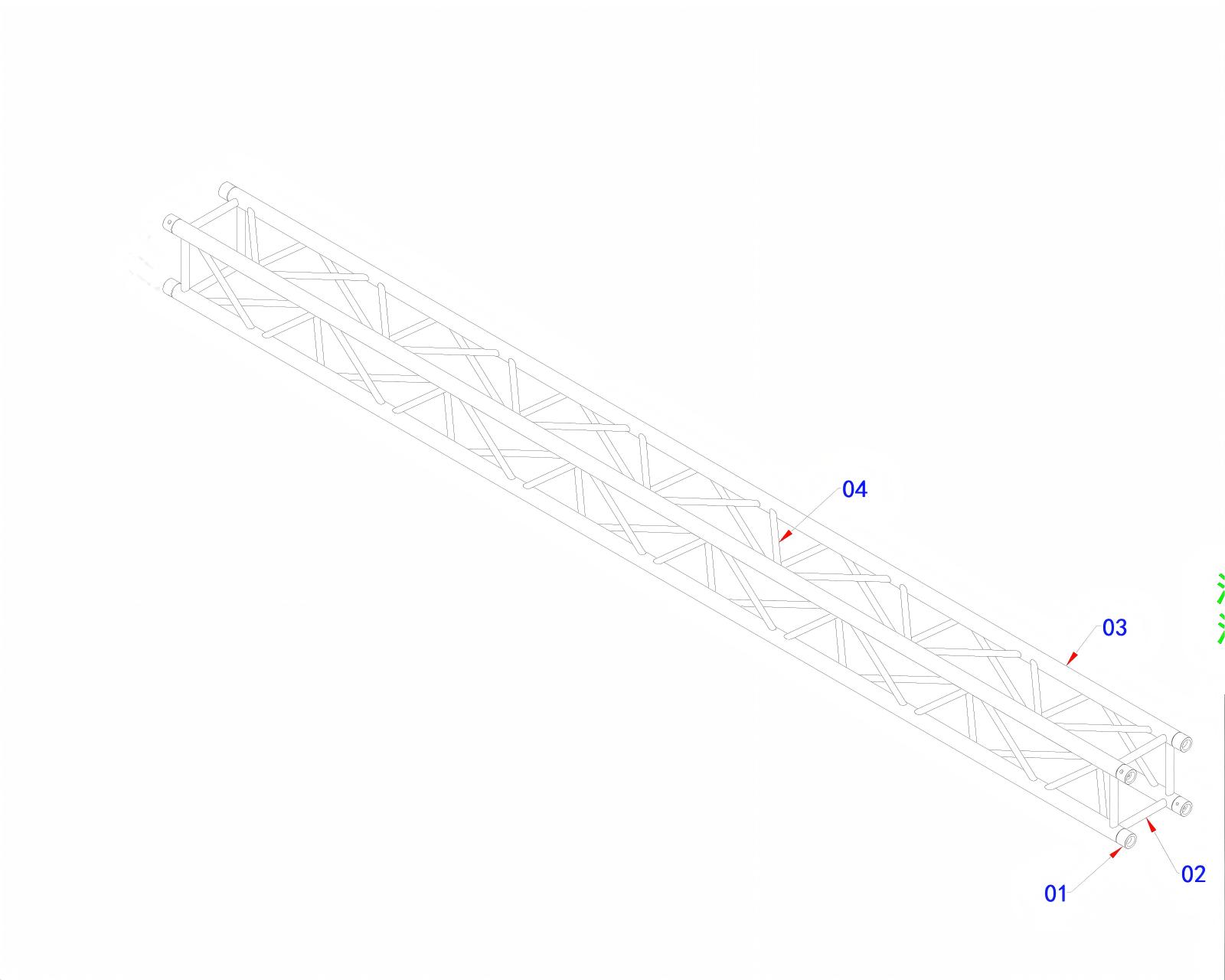

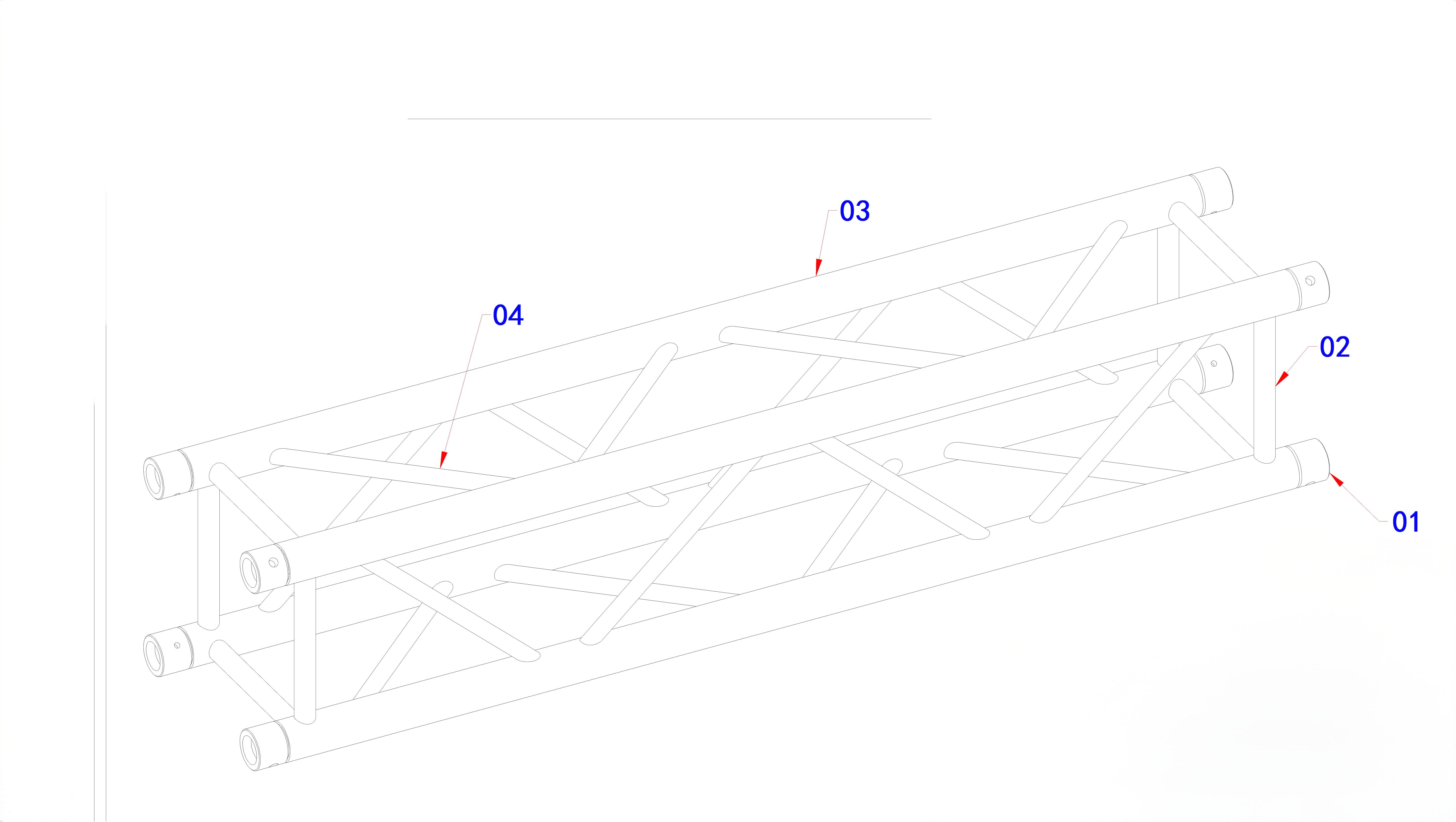

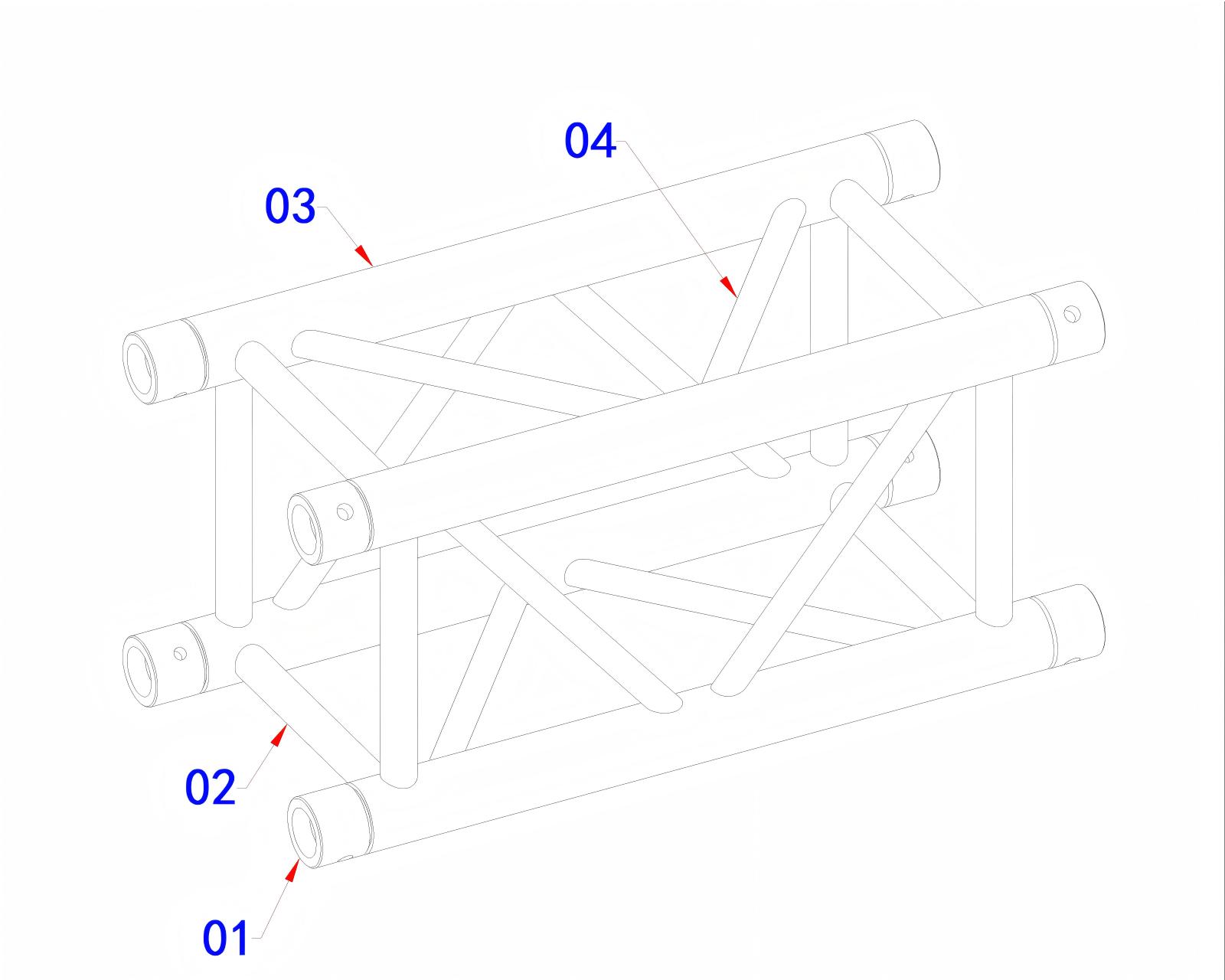

The drawings represent standard CS289 aluminum spigot box truss configurations.
Actual structural performance depends on the complete system design, connection method, loading conditions, installation environment and engineering requirements.
