packing weight:1800kg
packing volume: 12cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 27 pcs |
| 1.22m stage brace | 36 pcs |
| 2.44m stage brace | 30 pcs |
| stand with extendable tube | 40 pcs |
| Stage adjustable base | 40 pcs |
| Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
packing weight: 1900kg
packing volume: 12cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 4.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 179.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 4.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

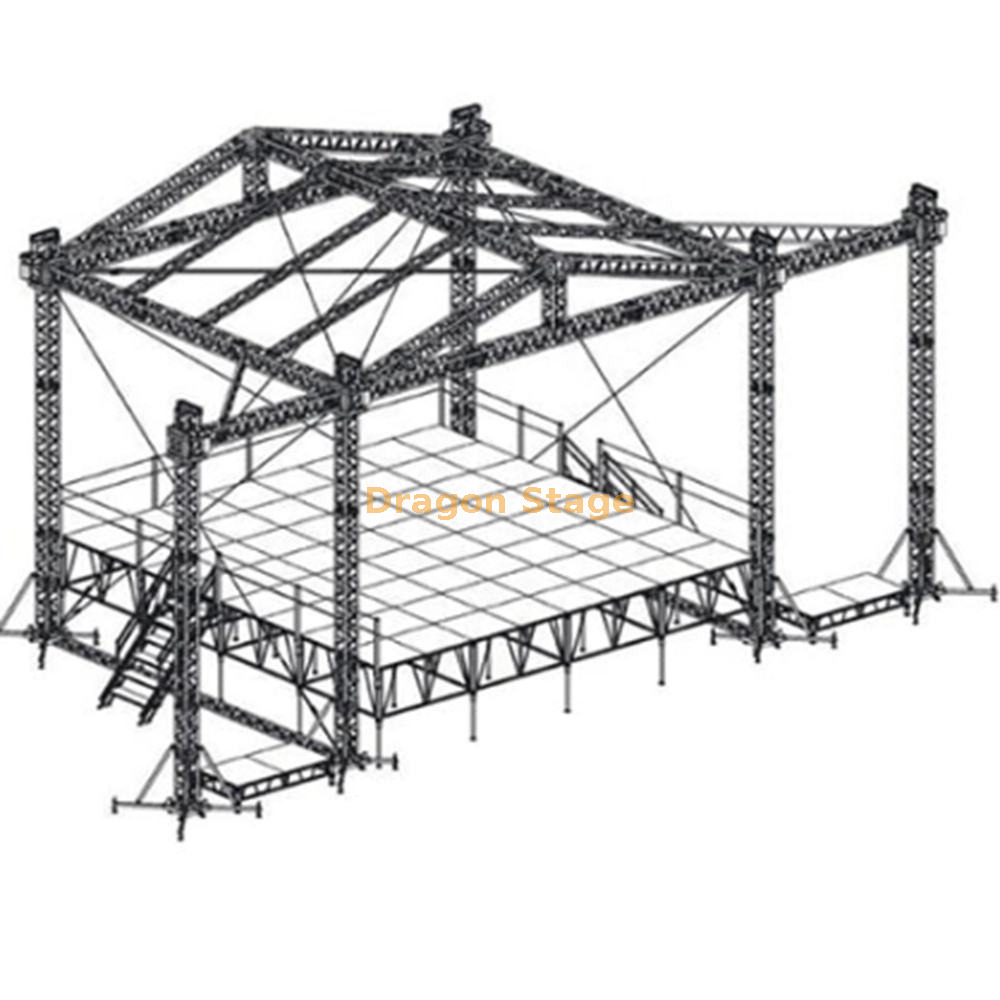

Aluminum Event Concert Light Duty Spigot Truss System 12x8x5m with Sound Truss Wings 2m
Introduction: The Foundation of Large-Scale Live Production
The DragonStage Aluminum Event Concert Light Duty Spigot Truss System is an optimized structure designed for medium-sized outdoor events, concerts, and exhibitions where a substantial presence and reliable rigging are required without the extreme height or load capacity of heavy-duty systems. With overall truss dimensions of 12 meters long by 8 meters wide and a structural height of 5 meters, this system provides a highly functional, covered performance space.
This truss system is classified as a Light Duty structure, prioritizing efficient logistics and quicker setup times while still providing ample space. A key functional element is the inclusion of Sound Truss Wings, extending 2 meters on each side, which offers dedicated, stable hanging points for line array speakers or lateral signage, keeping the main grid clear for lighting and video. It is a complete package that includes an integrated, adjustable stage platform.
Challenges & Solutions in Modern Event Construction
This system is engineered to solve common operational and logistical hurdles for event planners focused on the mid-market segment:
Logistical Efficiency (Volume/Weight): Classified as "Light Duty" and modular, the structure and stage components are divided for easier handling. The truss system packs into 12 CBM (1800 kg), and the stage into 12 CBM (1900 kg), resulting in a total logistics volume of 24 CBM for streamlined transport.
Rapid Deployment: The use of the Spigot connection system—a simple conical coupler, safety clip, and pin mechanism—allows for very fast and reliable assembly and breakdown, minimizing on-site labor costs and time.
Integrated Rigging Support: The structural separation of lighting and sound loads is crucial for safety. The 2m Sound Truss Wings, supported by dedicated pillars, ensure line array speakers can be hung optimally without compromising the main roof's load capacity for lighting fixtures.
Adjustable Stage Height: The system includes a fully adjustable stage platform, which can be set between 1.6m and 2.0m, offering flexibility to accommodate varying site requirements and audience sightlines.
Key Features & Benefits for Event Professionals
The Aluminum Event Concert Light Duty Spigot Truss System 12x8x5m is optimized for high functionality and ease of use in event environments.
| Feature | Specification Details | Client Benefit |
| Overall Dimensions (L x W x H) | 12m x 8m x 5m (Truss) | Ideal size for medium-scale concerts, corporate events, and festivals requiring medium-height clearance. |
| Main Truss Profiles | CS389x389 (Beam), CS289x289 (Pillar) | Utilizes robust square truss for main spans and pillars to ensure structural rigidity. |
| Sound Truss Wings | 2m wide (on each side) | Provides safe, dedicated rigging points for speakers, maximizing main roof load capacity. |
| Stage Platform Included | Approx. 10.98m x 7.32m (27 pieces of 4x8ft decking) | Ready-to-use performance area with adjustable height 1.6m - 2.0m. |
| Main Tube Size | Consistent 50mm x 3.0mm | Standard industry size for light- to medium-duty trusses, balancing strength and weight. |
| Connection Type | Spigot (Conical Coupler, Safety Clip, Pin) | Ensures fast, secure, and reliable setup and tear-down. |
The package includes a performance stage deck of approximately 10.98m x 7.32m, which is built using 27 wooden 4x8ft topping panels. The stage height is precisely controlled by 40 sets of adjustable stands and adjustable bases, suitable for accommodating uneven outdoor ground. The entire truss structure is managed using 4 sets of Manual Hoists (BA05) for controlled vertical assembly of the roof section.
Practical FAQ for Stage Professionals
Q: Is this system considered heavy-duty?
A: No. It is classified as a "Light Duty Spigot Truss System" and is best suited for standard lighting, signage, and modest sound systems. For extreme load requirements (e.g., massive video walls), a heavier-duty truss would be recommended.
Q: What is the footprint required on the ground?
A: The main structure has a 12m x 8m footprint, plus the area needed for the 4 main tower bases and their Long Outriggers, which significantly increase the required stable operating area for safety.
Q: How many stage panels are included?
A: The stage system includes 27 pieces of 4x8ft wooden topping panels, which form the platform area.
Q: What is the total height of the structure, including the roof?
A: The main truss structure has a pillar height of 4.00m, but the overall system height is listed at 5.00m (total working height).
Strong Call to Action (CTA)
For efficient, scalable, and secure event infrastructure tailored to medium-sized events, choose the reliability of the DragonStage Aluminum Event Concert Light Duty Spigot Truss System 12x8x5m.
Contact DragonStage's engineering team today to review load tables and plan the deployment of this efficient truss system for your next event.
