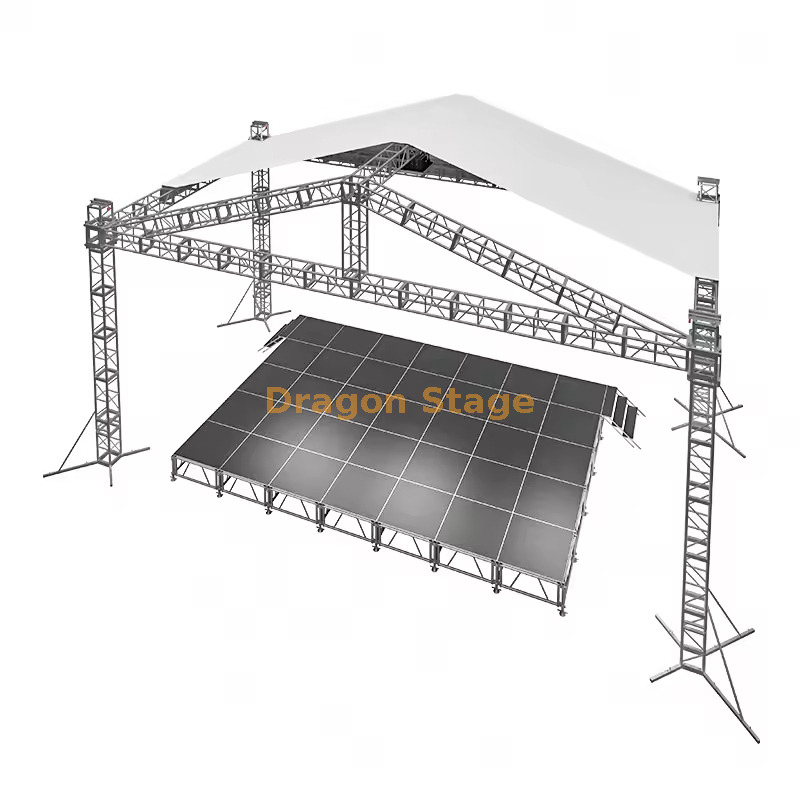

This 12×7×6m aluminum alloy mobile stage roof truss system with stage platform is a complete event solution designed for concerts, outdoor festivals, and large-scale productions. It integrates roof truss structure and stage platform into one modular system, ensuring high load capacity, fast installation, and structural safety. For engineering validation, refer to stage load analysis, modular system logic, and safety standards .
Product Name: Aluminum Mobile Stage Roof Truss System with Stage Platform
Size: 12m × 7m × 6m
System Type: Integrated Roof Truss + Stage Platform
Application: Concert stage, outdoor event stage, festival stage system
Material: High-strength aluminum alloy
Structure: Modular truss + modular stage platform
Installation: Fast assembly system (see installation methodology)
Safety: Engineered under structural safety standards
packing weight:1530kg
packing volume:14cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 164.56 | 1pcs |
Engineered for high-performance outdoor and indoor events, this 12m (Length) x 7m (Depth) x 6m (Height) Aluminum Alloy Mobile Stage Truss System provides a versatile and secure environment for any production. The system features a pitched roof design for optimal water drainage and a modular stage platform that can be adjusted for various ground conditions.
Why This Product is Recommended
Complete system (roof + stage) reduces sourcing complexity
Large span design suitable for medium to large events
Modular structure enables fast setup and transport
Strong compatibility with roof truss systems and stage platform systems
Ideal for professional event production and rental companies
Structural Engineering Insight
This system combines two structural subsystems:
1. Roof Truss Structure
Responsible for lighting, audio, and LED load
Requires accurate load calculation → load analysis guide
2. Stage Platform System
Key Engineering Factors
Improper design or load estimation may lead to structural instability in large-span stage systems.
Application Scenarios
This integrated stage system is widely used in:
FAQ
What is included in a mobile stage roof truss system?
It typically includes roof truss structure, stage platform, and connection components, forming a complete event stage system.
What is the load capacity of this system?
Load capacity depends on span, configuration, and material. Always calculate using load analysis standards .
Is this system suitable for outdoor use?
Yes, it is designed for outdoor environments with proper structural stability and weather resistance.
What type of stage platform is used?
This system integrates modular stage platforms and aluminum stage systems .
