packing weight: 1800kg
packing volume: 17cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 9.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 15.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 10pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .90 m | 50×3.0 | CS289×289 | 2pcs |
| 15.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 5pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.70 m | 50×3.0 | CS289×289 | 4pcs |
| 4.70 m Ladder truss | 14 sets | 3.00 m | 50×3.0 | CL30,289*50 | 14pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 14pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 28pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 220.86 | 1pcs |

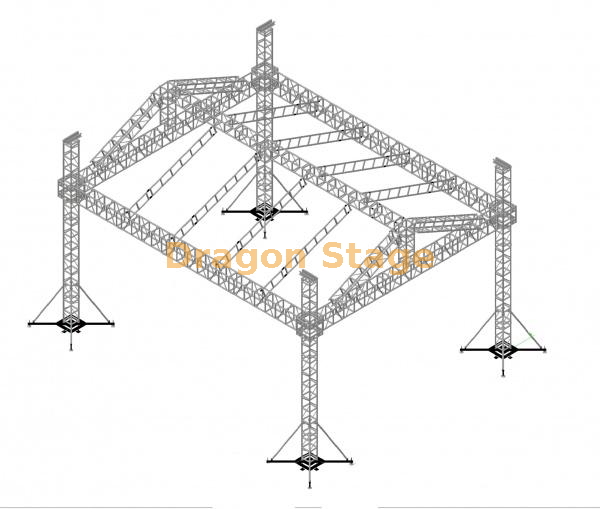

Professional 15m x 9m x 7m Aluminum Alloy Saddle Roof Stage Truss System
Maximize your event production with this professional-grade Aluminum Saddle Roof Stage Truss System. Measuring 15m in length, 9m in depth, and reaching a height of 7m, this structure is specifically designed for high-capacity outdoor performances.
Key Features:
Superior Durability: Fabricated from high-quality Aluminum Alloy, offering excellent corrosion resistance and a long service life of 10-20 years.
Heavy-Duty Performance: Engineered for high load-bearing capacity, making it ideal for hanging professional lighting fixtures, LED screens, and heavy audio arrays.
Modular & Portable: The lightweight aluminum design allows for easy transport and quick assembly, significantly reducing labor costs compared to traditional iron systems.
Advanced Stability: Features a robust 4-tower lifting system with secure base plates and outriggers for maximum stability on various terrains.
Versatile Applications: The perfect solution for outdoor concerts, music festivals, large corporate events, and trade show exhibitions.
This saddle roof design provides critical shading and rain protection for performers and equipment, ensuring your show goes on regardless of the weather.
