Custom Concert Saddle Roof Stage 12x9x5m

5 0 Reviews

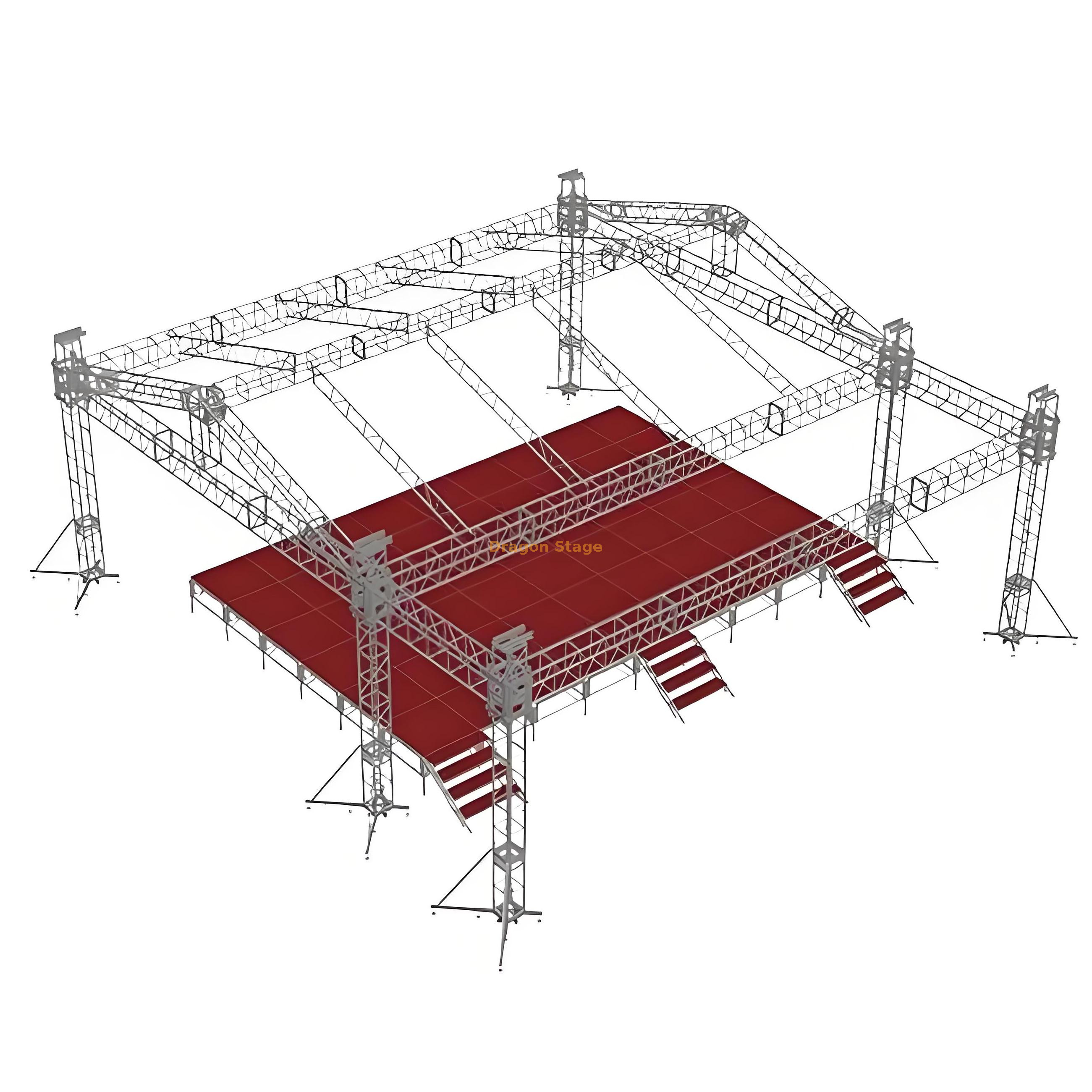

this is a Custom Concert Saddle Roof Stage, the main stage is 12x9x5m

the front part is 12m wide and 3m deep and 5m high.

the staging is 10.98x7.32m with 3 stairs and height 0.8-1.2m

Price: ￥ 47400 - 78830


Features:	truss system staging system
Availability:



Inquire

Brand:
Dragon Stage

Product Description

Custom Concert Saddle Roof Stage

packing weight: 2050kg

packing volume: 19cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
9.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
12.00 m Beam(side)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
4.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.90 m	50×3.0	CS289×289	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	4pcs
		2.70 m	50×3.0	CS289×289	4pcs
4.70 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	0pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		2.70 m	50×3.0	CL30,289*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		185.46	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
4.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight:1980kg

packing volume:12cbm

Item	Specification				Quantity
Aluminium assembly stage	topping: 4x4ft (1.22x1.22m)		wooden		54 pcs
	1.22m stage brace				123 pcs
	stand with extendable tube				70 pcs
	Stage adjustable base				70 pcs
Stage Stair	wooden topping	total	5	steps	3 pcs
