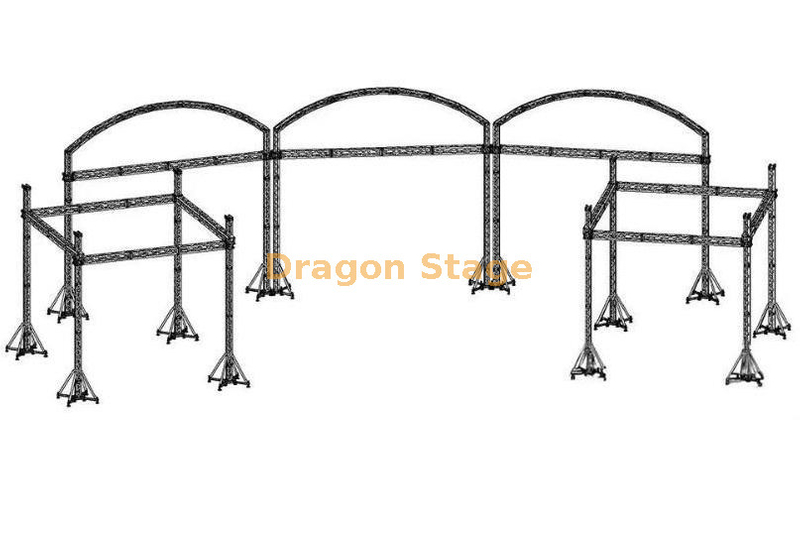

3 sets of archway trusses, it is 4m wide and 4m high
one set data shown as below
packing weight: 400kg
packing volume: 3cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS289×289 | 1 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | 1 pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 2 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
2 sets of non-roof truss system, it is 3x3x4m
one set data shown as below
packing weight: 700kg
packing volume: 4.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 3.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 3.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
