Aluminum Roof Stage Truss with Line Array Led Stands 13x9x7m

5 0 Reviews

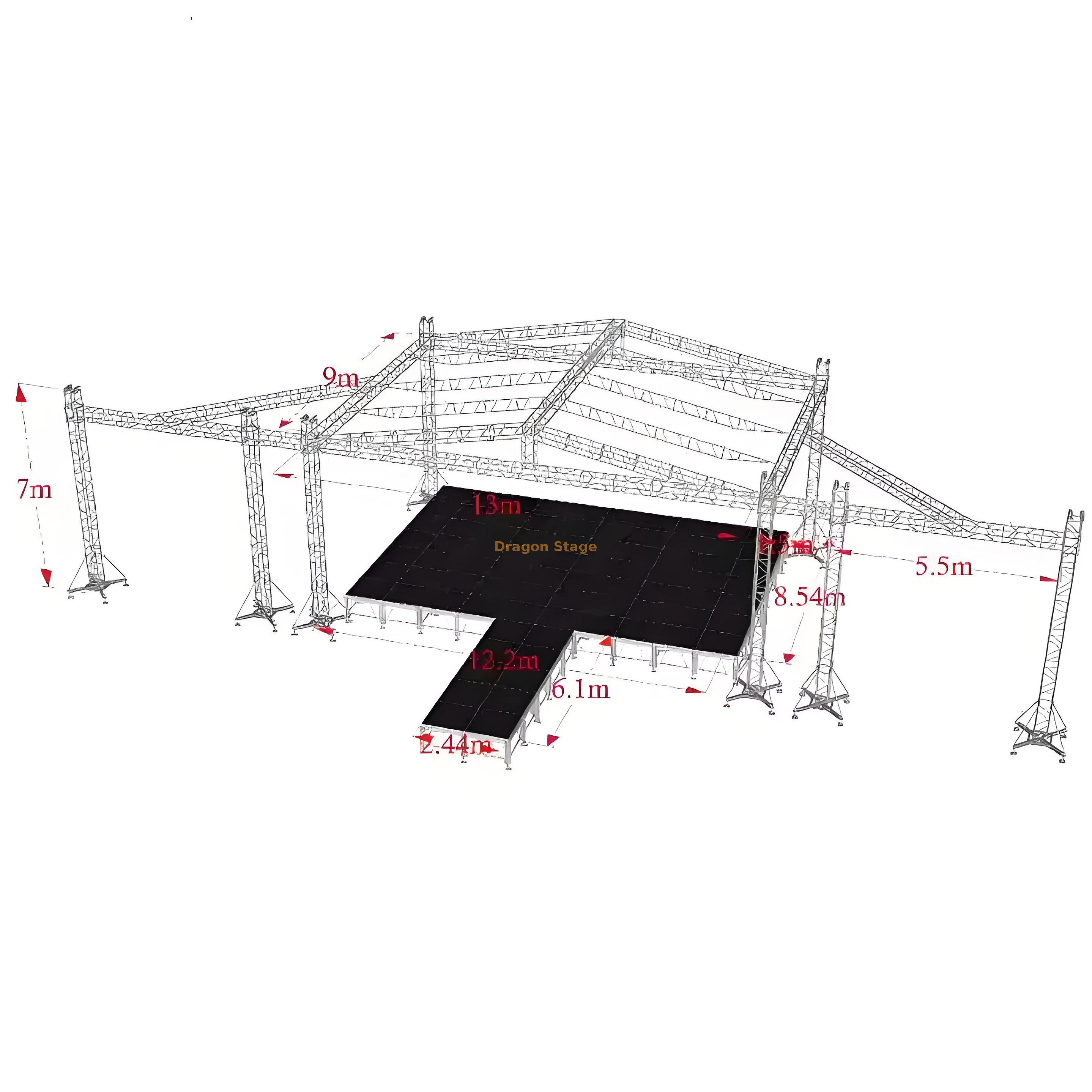

this is a custom Aluminum Roof Stage Truss 13x9x7m

with Line Array 1.5m wide stands and 5.5m wide Led Stands

the walkway stage for the concert, each panel is 1.22x1.22m

the main stage is 12.2x8.54m and 6.1x2.44m with 2 stairs, height 0.8-1.2m

Price: ￥ 67350 - 99152


Features:	roof truss system stage system
Availability:



Inquire

Brand:
Dragon Stage

Product Description

Roof Stage Truss 13x9x7m

truss system

packing weight: 2600kg

packing volume: 24cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
13.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.30 m	50×3.0	CS289×289	2pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.70 m	50×3.0	CS289×289	4pcs
6.70 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		1.70 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		209.26	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
6.00 m Wings Beam	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Wings Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

staging system

packing weight: 2900

packing volume: 17.5cbm

Item	Specification				Quantity
Aluminium assembly stage	topping: 4x4ft (1.22x1.22m)		wooden		70 pcs
	1.22m stage brace				157 pcs
	stand with extendable tube				88 pcs
	Stage adjustable base				88 pcs
Stage Stair	wooden topping	total	5	steps	2 pcs

Item	Specification		Quantity
Aluminium assembly stage	topping: 4x4ft (1.22x1.22m)	wooden	10 pcs
	1.22m stage brace		26 pcs
	stand with extendable tube		16 pcs
	Stage adjustable base		16 pcs
