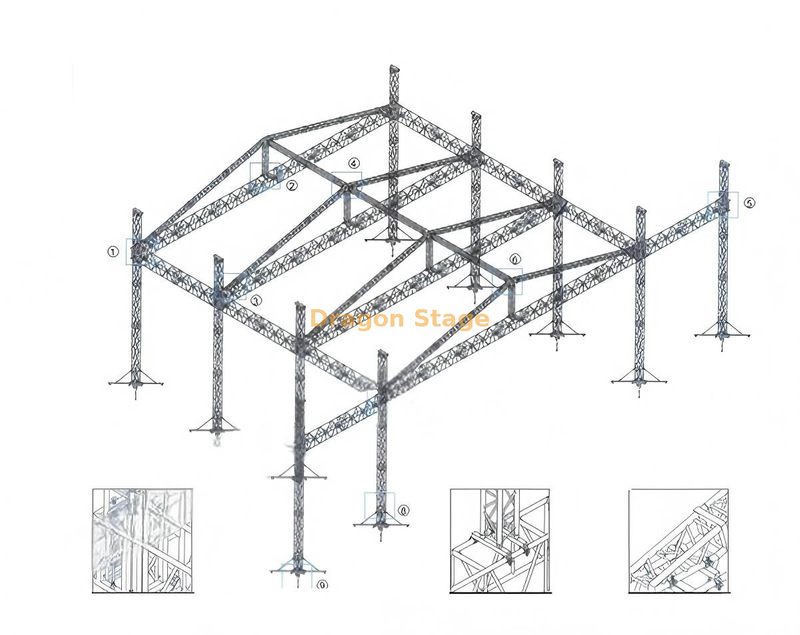

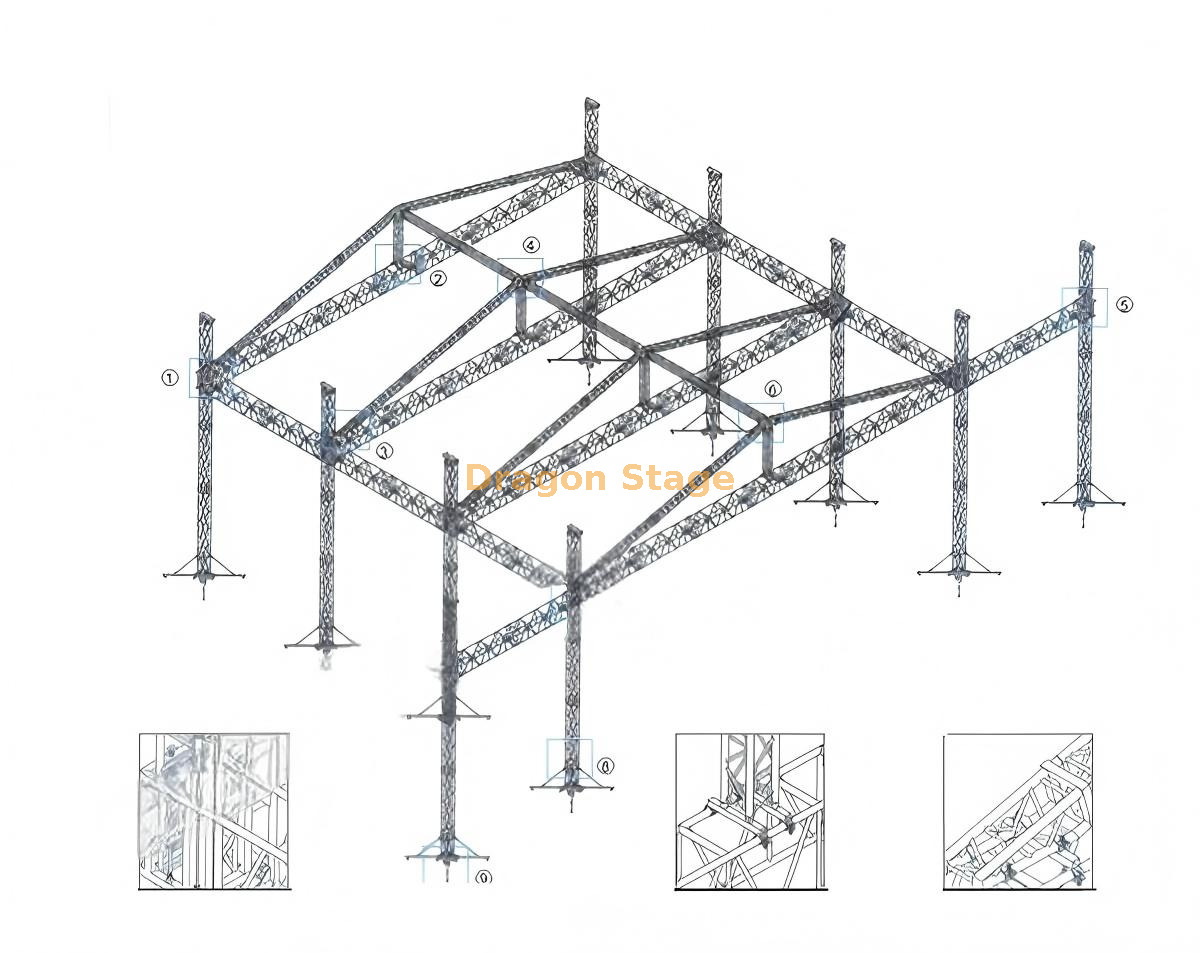

What is the 20x18x10m Aluminum Saddle Roof Stage Truss Heavy Duty Concert Stage with 3m Speaker Wings?
It is a heavy-duty aluminum saddle roof truss system engineered for large-scale concerts and outdoor productions. The 20m × 18m main roof with 10m clearance and integrated 3m speaker wings delivers ample space for professional lighting rigs and powerful audio systems while maintaining superior structural integrity and fast setup.
Answer CardWhy Choose This Saddle Roof Concert Truss?
✅ Spacious 20m × 18m coverage with 10m height ✅ Heavy-duty aluminum alloy construction ✅ Integrated 3m speaker wings for line array support ✅ Saddle roof design for enhanced load distribution✅ Reliable for large outdoor concerts and festivals
packing weight:6230kg
packing volume:58cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 4 sets | 3.00 m | 50×4.0 | CS520×760 | 24pcs |
| 2.00 m | 50×4.0 | CS520×760 | 4pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 18.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 12pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 9.00 m Pillar | 8 sets | 3.00 m | 50×3.0 | CS389×389 | 24pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS520×760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 8pcs |
| Steel Base L | 8pcs |
| Top Section L | 8pcs |
| Manual hoist,BA05 2Tons | 8pcs |
| Spigot Hinge Section,Height 1m | 8pcs |
| Fibre sling,BA04,2 tons 3m | 8pcs |
| Long outrigger | 32pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 4 sets | 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 18.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.20 m Oblique Beam | 8 sets | 3.00 m | 50×3.0 | CS389×389 | 16pcs |
| 2.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.20 m | 50×3.0 | CS389×389 | 8pcs |
| 10.20 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | CL40,389*50 | 24pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 12pcs |
| 2.20 m | 50×3.0 | CL40,389*50 | 12pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 2pcs |
| 1 | Connect plate with clamp | CS389×389 | 4pcs |
| Single clamp | 24pcs |
| Double clamp | 16pcs |
| roof canopy material:pvc, Blue Colour or customized. | 525.76 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 0pcs |
| 2.00 m | 50×4.0 | CS520×760 | 2pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 9.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| Wings Tower | Spigot Sleeve Block L | 2pcs |
| Steel Base L | 2pcs |
| Top Section L | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Maximize your production impact with our 20m x 18m x 10m Aluminum Alloy Saddle Roof Assembly. Engineered for the most demanding outdoor environments, this massive tower-based structure provides a secure and expansive environment for high-profile touring productions, mega-concerts, and large-scale festivals.
Key Features & Technical Specifications:
Massive Performance Area: An expansive 20m span and 18m depth accommodate full-scale stage setups, large bands, and complex scenic elements.
Imposing 10m Clearance: The 10m height offers superior rigging space for tiered lighting arrays, and professional special effects.
Extended Speaker Wings: Features two dedicated 3m-wide wings (PA wings) designed specifically to support heavy line array speaker systems, ensuring optimal audio coverage for massive crowds.
Premium Saddle Roof Design: The iconic curved saddle roof provides an aerodynamic profile for wind stability and efficient water runoff, critical for outdoor safety.
Heavy-Duty Construction: Fabricated from high-strength Aluminum Alloy 6082-T6, this system utilizes a professional bolt or spigot connection for maximum shear strength and rigid structural integrity.
Why Choose This System?
This truss system is the definitive choice for event producers requiring maximum load capacity and stability. Its modular design allows for efficient assembly despite its large scale, while the corrosion-resistant aluminum ensures long-term durability for year-round outdoor use. Deliver a world-class performance experience with a stage foundation built for the industry's biggest acts.
1. What are the dimensions and speaker wing size of this saddle roof truss?
The main roof measures 20m × 18m with a height of 10m, plus 3m speaker wings on both sides for optimal line array speaker placement and sound distribution.
2. Is this aluminum saddle roof truss suitable for outdoor concerts?
Yes. Its heavy-duty aluminum alloy construction and saddle roof design provide excellent stability and weather resistance, making it ideal for large outdoor events. Learn more about outdoor truss selection in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How long does it take to assemble this large concert roof truss?
Thanks to the modular spigot connections, professional teams can complete assembly efficiently. For practical installation steps, check How To Install A Heavy-Duty Concert Roof Stage.
