packing weight:950kg
packing volume: 7.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 9.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Beam(side) | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS289×289 | 4pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |

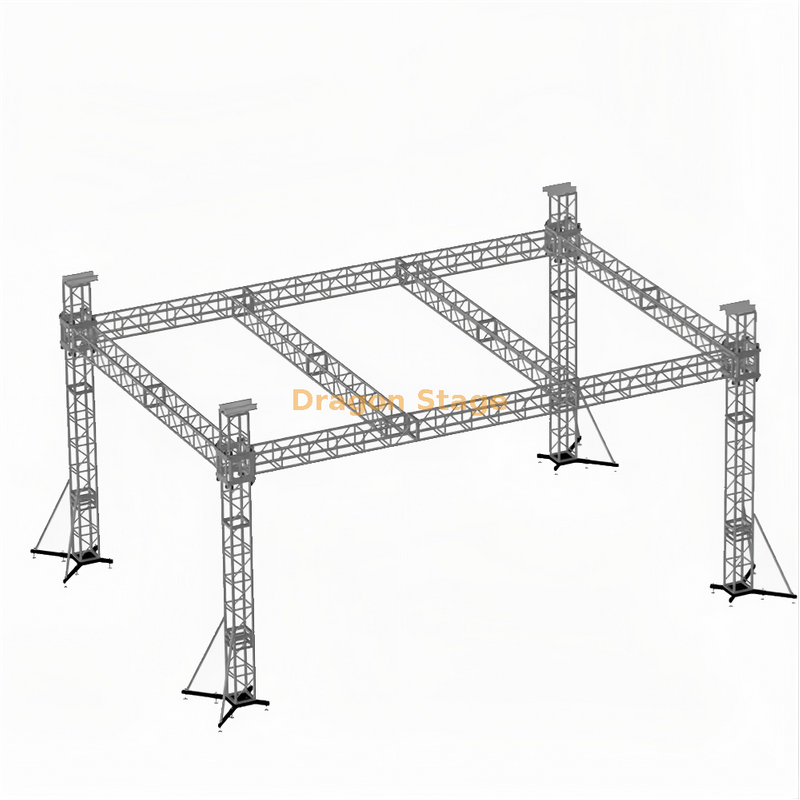

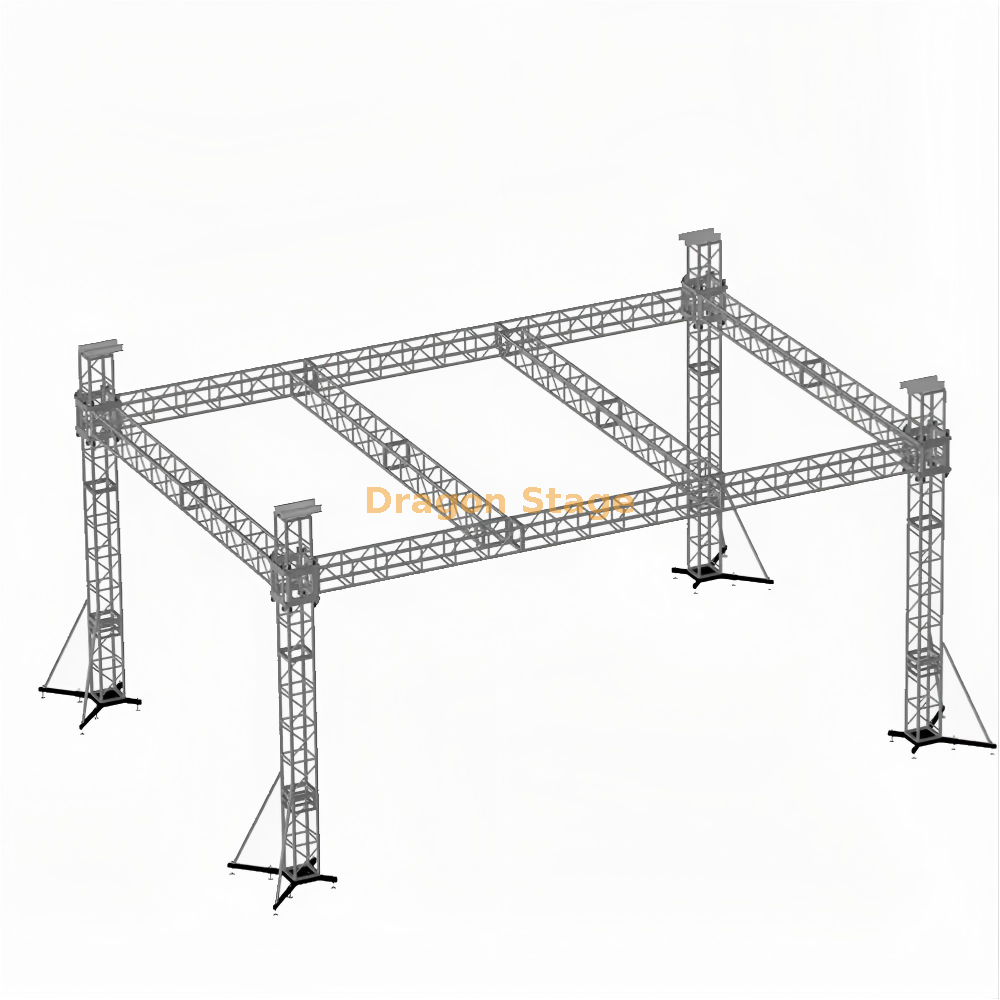

Professional 9m x 6m Aluminum Alloy Mobile Flat Roof Truss System
Maximize your production value with this versatile Flat Roof Assembly. Specifically designed for high-impact outdoor and indoor events, this 9m length, 6m depth, and 5m height structure provides a robust and expansive platform for lighting, audio, and visual displays.
Key Features:
Superior Durability: Crafted from high-grade 6061-T6 aluminum alloy, this system is naturally corrosion-resistant and non-rusting, ensuring a long service life of 10–20 years even in outdoor conditions.
High Strength-to-Weight Ratio: Despite its lightweight nature, the truss features outstanding weight-loading capacities for heavy lighting rigs, LED walls, and speaker arrays.
Rapid Assembly: Features a quick-connect system (spigot or bolt) that allows for fast setup and teardown with minimal labor, significantly reducing event planning costs.
Dynamic Flat Roof Design: The sleek, modern flat roof aesthetic maximizes overhead production space while providing efficient drainage for the canopy.
Total Stability: Supported by four reinforced pillar towers with outriggers for a secure, professional-grade footprint.
Applications:
Ideal for mega-concerts, festivals, trade show booths, corporate product launches, and outdoor wedding stages.
