packing weight: 380kg
packing volume: 2.5cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 1 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | 1 pcs |
| 0.5 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 2 pcs |
| 2 | 50×3.0 | CS289×289 | 2 pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |

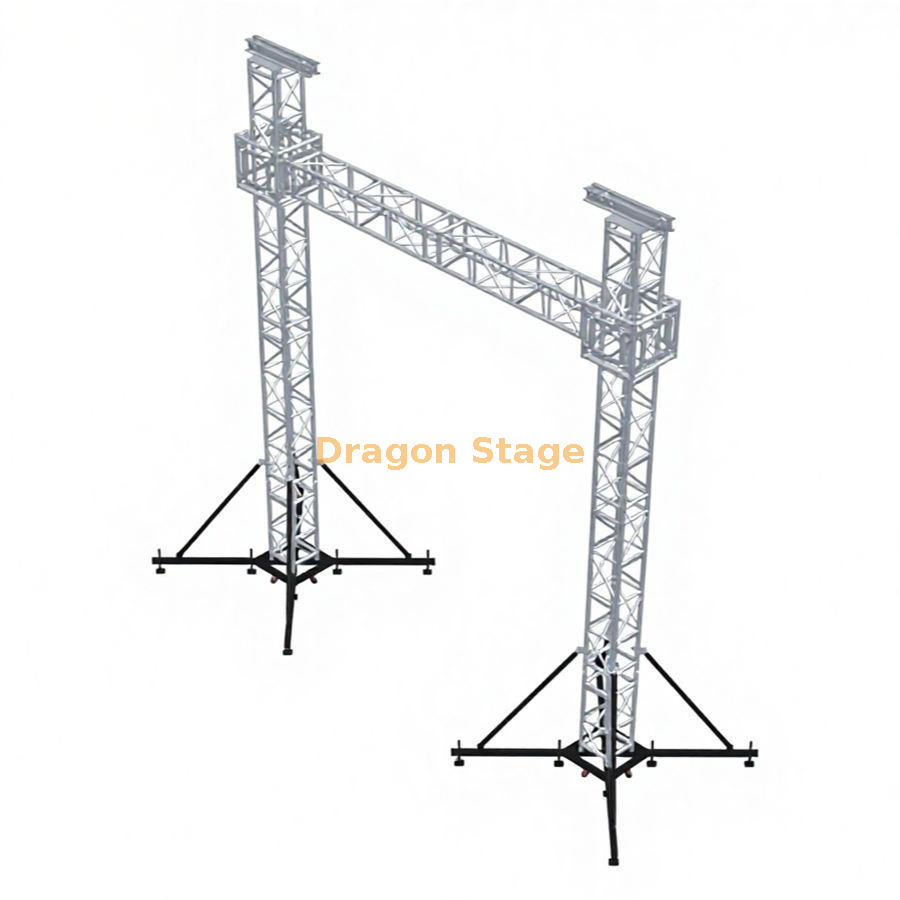

The 2-meter elevation of the LED display will be achieved through the vertical height of the truss frame. The display itself will be mounted directly onto the beams, ensuring a secure and stable installation. The use of aluminum spigot truss components allows for easy assembly and disassembly, facilitating transportation and storage.
This proposed system offers a robust and reliable solution for safely supporting the 3x3m LED display at the desired height. The use of high-quality aluminum components ensures both strength and durability, making it suitable for various indoor and outdoor applications.
