Dragonstage
packing weight:350kg
packing volume:3.5cbm
BS30 bolt truss 3m-2p
BS30 bolt truss 2m-3p
BS30 bolt truss 1.5m-1p
BS30 bolt truss 2m-4p
BS30 bolt truss 1m-4p
BS30 bolt truss 0.5m-2p
BS5060 bolt truss 2m-3p
BS5060 bolt truss 1m-2p
BS5060 bolt truss 1.5m-1p
BS5060 bolt truss sleeve block-2p
BS30 bolt truss steel base-2p
manual hoist 2p
hinge truss 1m 2p
fiber sling 2p
support pipe 8p
clamp between steel base and footing 16p

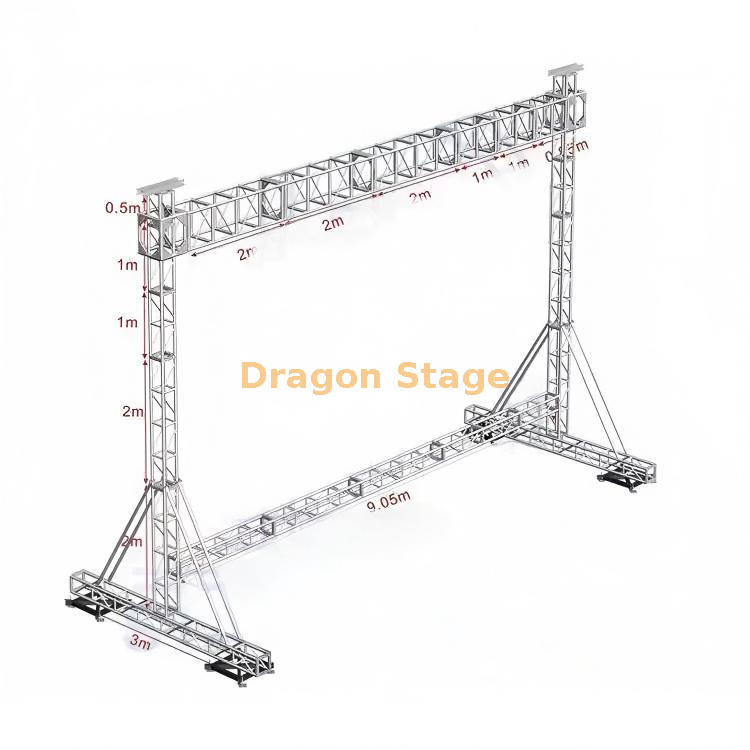

The 9.5m × 7.5m Heavy-Duty LED Screen Goalpost Truss System is a professional-grade ground-supported structure specifically engineered for safely hanging large outdoor LED video walls and screens at concerts, festivals, sports events, and corporate productions.
Featuring an impressive 9.5-meter clear horizontal span and 7.5-meter hanging height, this robust aluminum spigot truss system utilizes extended 3-meter footing bases with outriggers and stabilizers for exceptional stability and wind resistance without the need for guy wires in most conditions.
Built from certified 6061-T6 aluminum with heavy-duty 520×520mm or similar box truss sections and fast conical connectors, it offers superior load-bearing capacity to support massive LED cabinets (typically 8–12 tons UDL depending on configuration) while maintaining quick assembly and a clean, modern appearance.
Ideal for rental companies and production teams requiring a reliable, high-capacity LED screen support that maximizes viewing area, delivers perfect sightlines, and sets up efficiently on any level surface. Compatible with all major LED screen brands and proven on international tours and major events.
For outdoor festivals and high-impact corporate activations, the visibility of your video content is the heartbeat of the production. The 9.5x7.5m Heavy-Duty LED Screen Goalpost Truss System by DragonStage is a dedicated engineering solution designed to support the massive loads of professional LED video walls. Featuring a 9.5-meter horizontal span and a commanding 7.5-meter height, this system provides the scale needed for large-scale audience engagement. For production managers, the primary challenge is achieving a wide clear span that remains perfectly rigid under several tons of hardware—a challenge this reinforced spigot truss system addresses with specialized 3-meter stability footings.
The most critical challenge with LED goalposts is the "front-heavy" load distribution combined with wind resistance. A standard truss base is often insufficient for 7.5-meter heights; DragonStage solves this by utilizing extended 3-meter footings that provide a massive center-of-gravity anchor, preventing tipping even in windy outdoor environments. Another common pain point is structural deflection or "bowing" over a 9.5-meter span. Our solution utilizes heavy-duty 6061-T6 aluminum box truss profiles specifically engineered for high tensile strength, ensuring your LED wall remains perfectly flat and professional. For rapid deployment, the high-precision spigot connection system allows for tool-free assembly, significantly reducing on-site labor costs.
This 9.5x7.5m system is manufactured from aerospace-grade 6061-T6 aluminum alloy. This material is globally recognized for its superior strength-to-weight ratio and natural resistance to corrosion, ensuring the structure remains a long-term professional asset for any weather condition (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system features an integrated ground-support lift system. This allows technicians to assemble the entire LED wall at ground level and safely hoist it to the 7.5-meter peak using synchronized chain hoists. According to international safety standards for temporary structures, the use of a wide-base goalpost with reinforced corner blocks is the safest method for suspending heavy, large-format video equipment in public spaces (Source:https://www.plasa.org).
To provide a complete venue solution, this goalpost is designed for perfect compatibility with our modular aluminum stage platforms. Whether positioned behind a performance deck or used as a standalone entrance feature, the structural consistency ensures a cohesive and secure event environment (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: What is the maximum weight capacity of the 9.5m span?A: This heavy-duty system is designed to support standard outdoor LED walls. For specific load calculations based on your panel weight and wind area, please contact our engineering team for a verified report.
Q: Why are the 3m footings necessary?A: The 3-meter wide base provides the essential leverage required to stabilize a 7.5-meter tall structure against the "sail effect" of a solid LED wall in outdoor wind.
Q: Is the spigot system faster than bolt trussing?A: Yes. Spigot (conical) connections require only a hammer and pins, making them significantly faster and quieter to assemble than traditional nut-and-bolt systems.
Q: Can I use this system for audio as well?A: While primarily designed for LED screens, the reinforced towers can often support side-hung audio arrays. Please consult our engineers to ensure the combined load remains within safety limits.
Secure your high-value video assets with a structure built for industrial-grade safety and massive scale. Contact DragonStage’s engineering team today for a custom quote on the 9.5x7.5m Heavy-Duty LED Screen Goalpost Truss System. Download our technical specifications and start planning your most successful production yet.
